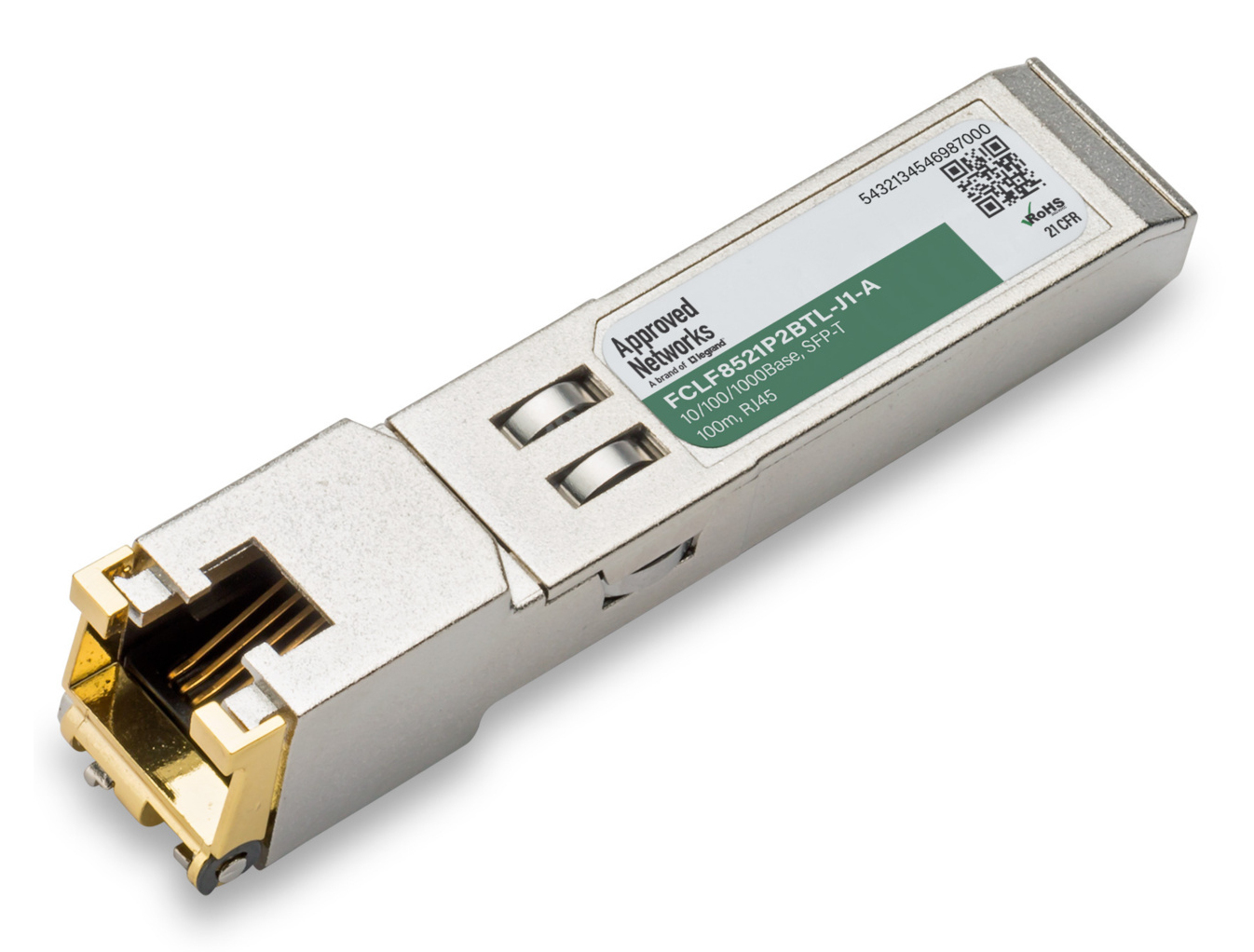

FCLF8521P2BTL-J1-A network transceiver module Copper 1250 Mbit/s SFP
Model FCLF8521P2BTL-J1-AEAN 840445700789
20 specifications
- Speed1250 Mbit/s
- Weight11.3 g
- ColourSilver
- SFP transceiver typeCopper
- Minimum operating temperature-40 °C
- Width13.6 mm
Overview
- Speed
- 1250 Mbit/s
- Weight
- 11.3 g
- Colour
- Silver
- SFP transceiver type
- Copper
- Minimum operating temperature
- -40 °C
- Width
- 13.6 mm
- Brand
- Legrand
- Category
- Network Transceiver Module
- Model
- FCLF8521P2BTL-J1-A
- Part number
- FCLF8521P2BTL-J1-A
- EAN / UPC
- 840445700789
- Also known as
- Legrand FCLF8521P2BTL-J1-A network transceiver module Copper 1250 Mbit/s SFP
Specifications
20 specifications in 7 groups
Performance
| Specification | Value |
|---|---|
| SFP transceiver type | Copper |
| Maximum data transfer rate | 1250 Mbit/s |
| Interface type | SFP |
| SFP transceiver standard | TX |
| Maximum transfer distance | 100 m |
| Ethernet LAN | Yes |
| Copper ethernet cabling technology | 1000BASE |
| Digital Diagnostics Monitoring (DDM) | No |
Features
| Specification | Value |
|---|---|
| Product colour | Silver |
| Brand compatibility | Juniper |
Certificates
| Specification | Value |
|---|---|
| Compliance certificates | RoHS |
Operational conditions
| Specification | Value |
|---|---|
| Minimum operating temperature | -40 °C |
| Maximum operating temperature | 85 °C |
| Operating temperature (T-T) | -40 - 85 °C |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 13.6 mm |
| Depth | 80.7 mm |
| Height | 13.9 mm |
| Weight | 11.3 g |
Packaging content
| Specification | Value |
|---|---|
| Quantity per pack | 1 pc(s) |
Logistics data
| Specification | Value |
|---|---|
| Country of origin | China |
