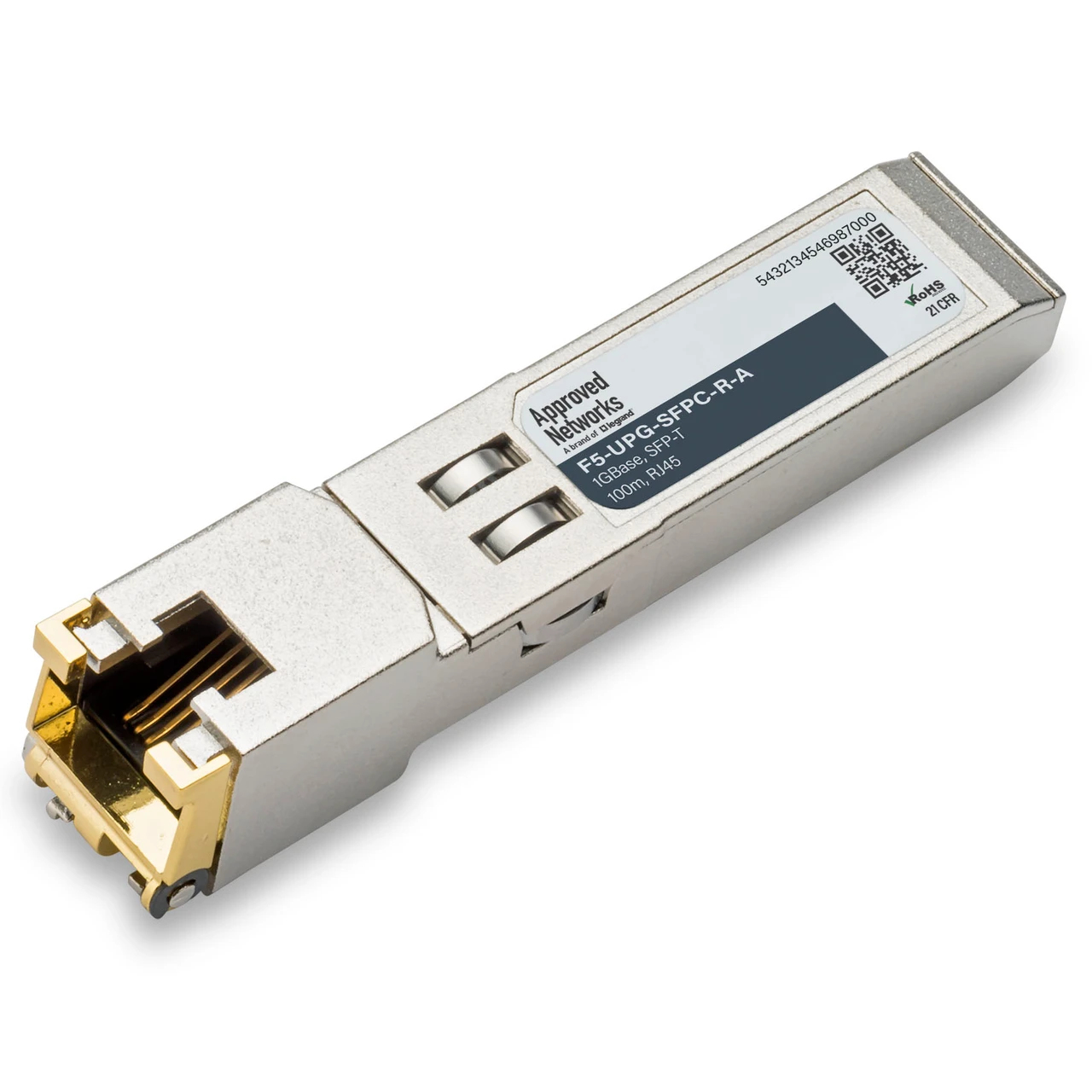

F5-UPG-SFPC-R-A network transceiver module Copper 1250 Mbit/s SFP
Model F5-UPG-SFPC-R-A
20 specifications
- Speed1250 Mbit/s
- TypeSFP
- ColourMetallic
- SFP transceiver typeCopper
- Minimum operating temperature0 °C
Overview
- Speed
- 1250 Mbit/s
- Type
- SFP
- Colour
- Metallic
- SFP transceiver type
- Copper
- Minimum operating temperature
- 0 °C
- Brand
- Legrand
- Category
- Network Transceiver Module
- Model
- F5-UPG-SFPC-R-A
- Part number
- F5-UPG-SFPC-R-A
- Also known as
- Legrand F5-UPG-SFPC-R-A network transceiver module Copper 1250 Mbit/s SFP
Specifications
20 specifications in 4 groups
Performance
| Specification | Value |
|---|---|
| SFP transceiver type | Copper |
| Maximum data transfer rate | 1250 Mbit/s |
| Interface type | SFP |
| Fiber optic connector | RJ-45 |
| SFP transceiver standard | T |
| Maximum transfer distance | 100 m |
| Ethernet LAN | Yes |
| Ethernet interface type | Gigabit Ethernet |
| Copper ethernet cabling technology | 1000BASE |
| Ethernet LAN (RJ-45) ports | 1 |
| Digital Diagnostics Monitoring (DDM) | No |
Features
| Specification | Value |
|---|---|
| Product colour | Metallic |
| Form factor | SFP |
| Plug and Play | Yes |
| Brand compatibility | F5 Networks |
Operational conditions
| Specification | Value |
|---|---|
| Minimum operating temperature | 0 °C |
| Maximum operating temperature | 70 °C |
| Operating temperature (T-T) | 0 - 70 °C |
| Storage temperature (T-T) | -40 - 100 °C |
Packaging content
| Specification | Value |
|---|---|
| Quantity per pack | 1 pc(s) |
