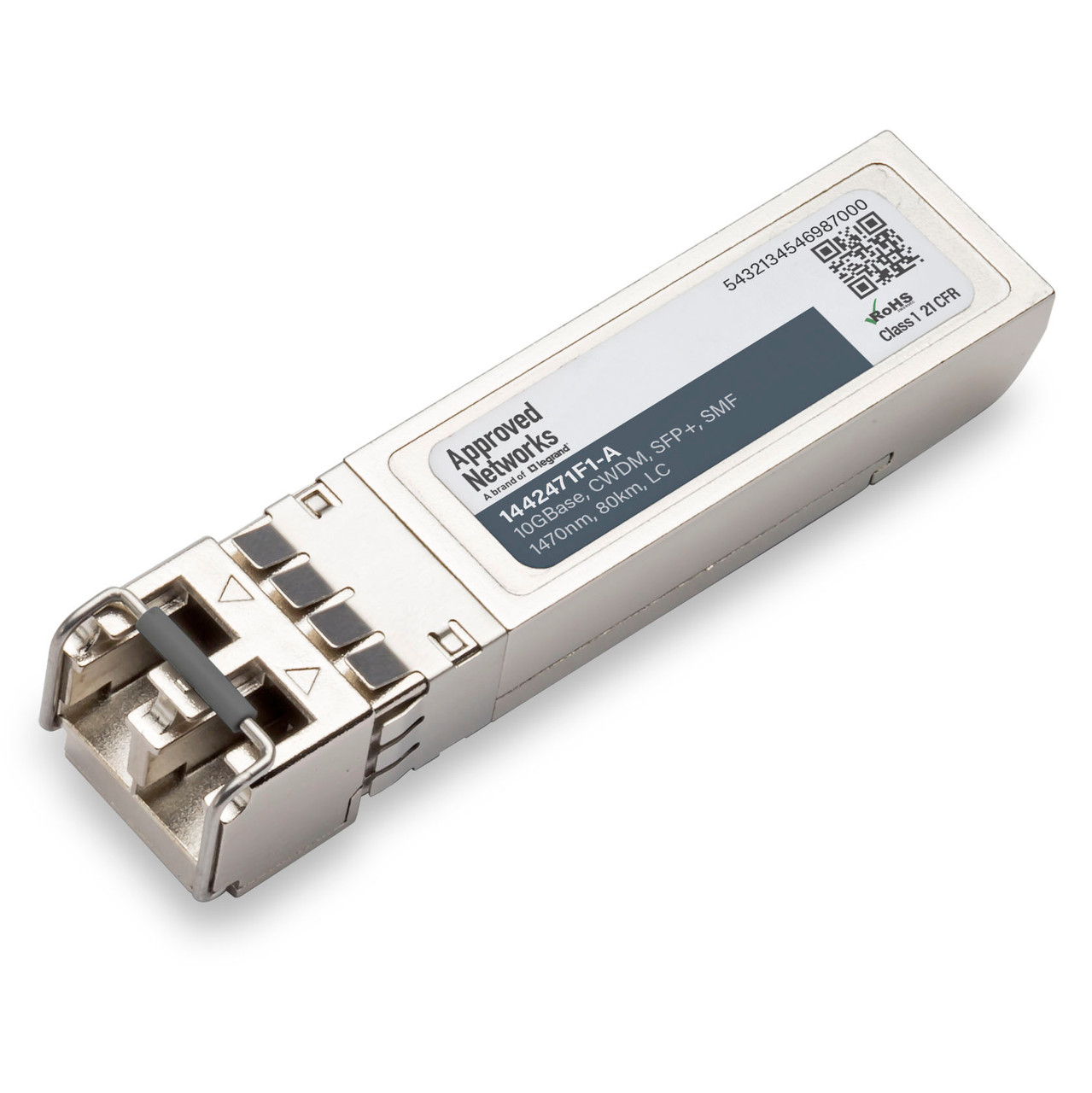

CWDM-SFPP-80-I-XX network transceiver module Fiber optic 10 Mbit/s SFP+ 1470 nm
Model CWDM-SFPP-80-I-XXPart no. XCVR-S80V55-CW61-A
30 specifications
- Speed10 Mbit/s
- TypeSFP+
- ColourMetallic
- SFP transceiver typeFiber optic
- Input voltage3.3 V
- Minimum operating temperature-40 °C
Overview
- Speed
- 10 Mbit/s
- Type
- SFP+
- Colour
- Metallic
- SFP transceiver type
- Fiber optic
- Input voltage
- 3.3 V
- Minimum operating temperature
- -40 °C
- Brand
- Legrand
- Category
- Network Transceiver Module
- Model
- CWDM-SFPP-80-I-XX
- Part numbers
- XCVR-S80V55-CW61-A, 1442471F1-A, 1442471F2-A, 1442471F3-A, 1442471F4-A, 1442471F5-A +16 more
- Also known as
- Legrand CWDM-SFPP-80-I-XX network transceiver module Fiber optic 10 Mbit/s SFP+ 1470 nm
Specifications
30 specifications in 7 groups
Performance
| Specification | Value |
|---|---|
| SFP transceiver type | Fiber optic |
| Maximum data transfer rate | 10 Mbit/s |
| Interface type | SFP+ |
| Single-mode fiber (SMF) supported | Yes |
| Fiber optic connector | LC |
| SFP transceiver standard | CWDM |
| Maximum transfer distance | 40000 m |
| Wavelength | 1470 nm |
| Coarse Wavelength Division Multiplexing (CWDM) | Yes |
| Ethernet interface type | 10 Gigabit Ethernet |
| Fiber ethernet cabling technology | 10GBASE |
| Duplex system | Full |
| Digital Diagnostics Monitoring (DDM) | Yes |
Features
| Specification | Value |
|---|---|
| Product colour | Metallic |
| Form factor | SFP+ |
| Plug and Play | Yes |
| Hot-Plug support | Yes |
| Easy to install | Yes |
| Brand compatibility | Adtran |
Power
| Specification | Value |
|---|---|
| Input voltage | 3.3 V |
Certificates
| Specification | Value |
|---|---|
| Compliance certificates | RoHS |
Operational conditions
| Specification | Value |
|---|---|
| Minimum operating temperature | -40 °C |
| Maximum operating temperature | 85 °C |
| Operating temperature (T-T) | -40 - 85 °C |
| Storage temperature (T-T) | -40 - 85 °C |
| Operating relative humidity (H-H) | 5 - 95% |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 13.9 mm |
| Depth | 58.4 mm |
| Height | 13.9 mm |
Packaging content
| Specification | Value |
|---|---|
| Quantity per pack | 1 pc(s) |
