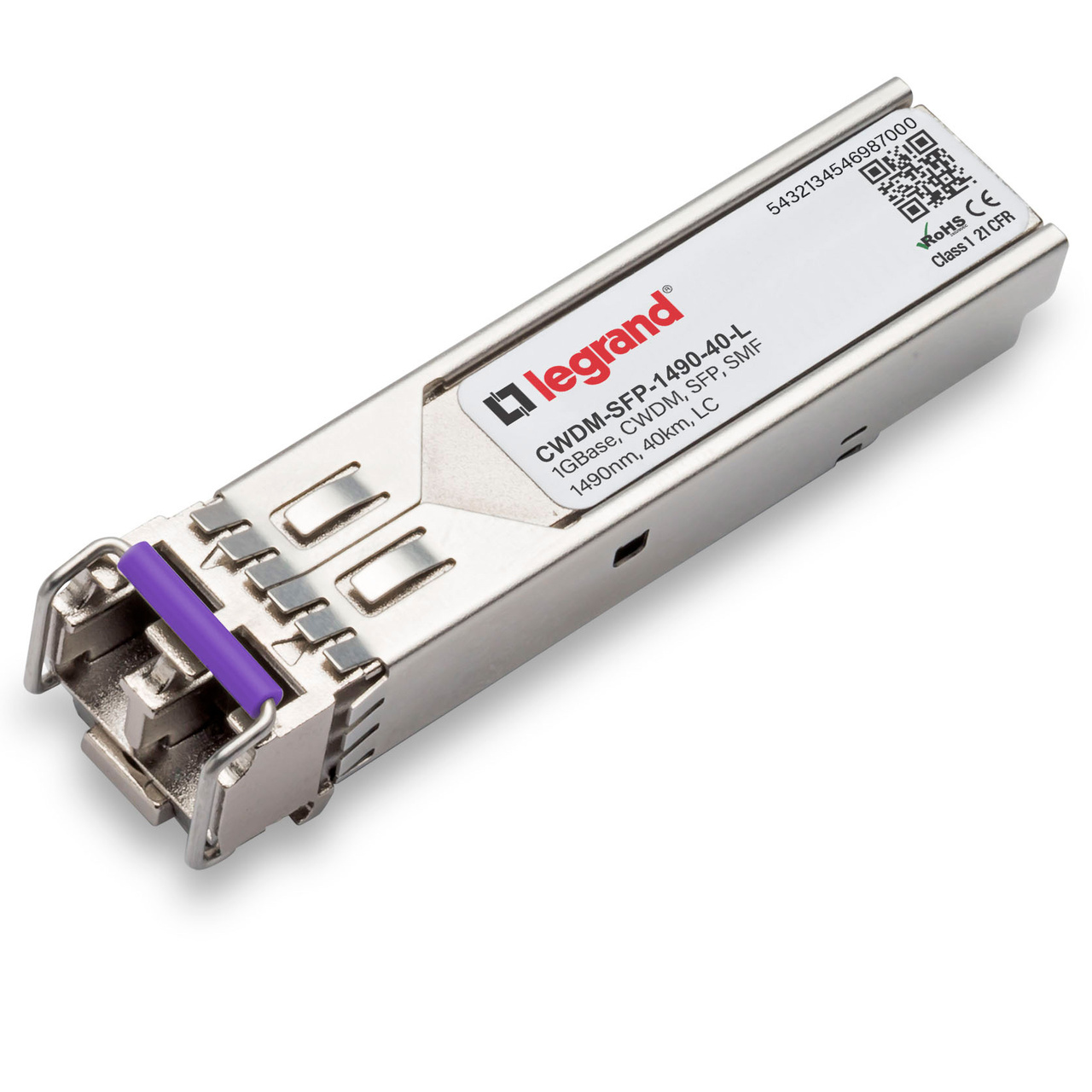

CWDM-SFP-1490-40-L network transceiver module Fiber optic 1250 Mbit/s 1490 nm
Model CWDM-SFP-1490-40-L
23 specifications
- Speed1250 Mbit/s
- ColourSilver
- SFP transceiver typeFiber optic
- Minimum operating temperature-40 °C
- Width13.9 mm
Overview
- Speed
- 1250 Mbit/s
- Colour
- Silver
- SFP transceiver type
- Fiber optic
- Minimum operating temperature
- -40 °C
- Width
- 13.9 mm
- Brand
- Legrand
- Category
- Network Transceiver Module
- Model
- CWDM-SFP-1490-40-L
- Part number
- CWDM-SFP-1490-40-L
- Also known as
- Legrand CWDM-SFP-1490-40-L network transceiver module Fiber optic 1250 Mbit/s 1490 nm
Specifications
23 specifications in 5 groups
Performance
| Specification | Value |
|---|---|
| SFP transceiver type | Fiber optic |
| Maximum data transfer rate | 1250 Mbit/s |
| Interface type | SFP |
| Single-mode fiber (SMF) supported | Yes |
| Fiber optic connector | LC |
| Fiber cable diameters supported (core/cladding) | 9/125 µm |
| Maximum transfer distance | 40000 m |
| Wavelength | 1490 nm |
| Coarse Wavelength Division Multiplexing (CWDM) | Yes |
| Link budget | 19 dB |
| Fiber ethernet cabling technology | 1000BASE |
| Duplex system | Full |
| Digital Diagnostics Monitoring (DDM) | Yes |
Features
| Specification | Value |
|---|---|
| Product colour | Silver |
| Hot-Plug support | Yes |
| Brand compatibility | Cisco |
Operational conditions
| Specification | Value |
|---|---|
| Minimum operating temperature | -40 °C |
| Maximum operating temperature | 85 °C |
| Operating relative humidity (H-H) | 0 - 85% |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 13.9 mm |
| Depth | 58.4 mm |
| Height | 8.5 mm |
Logistics data
| Specification | Value |
|---|---|
| Country of origin | China |
