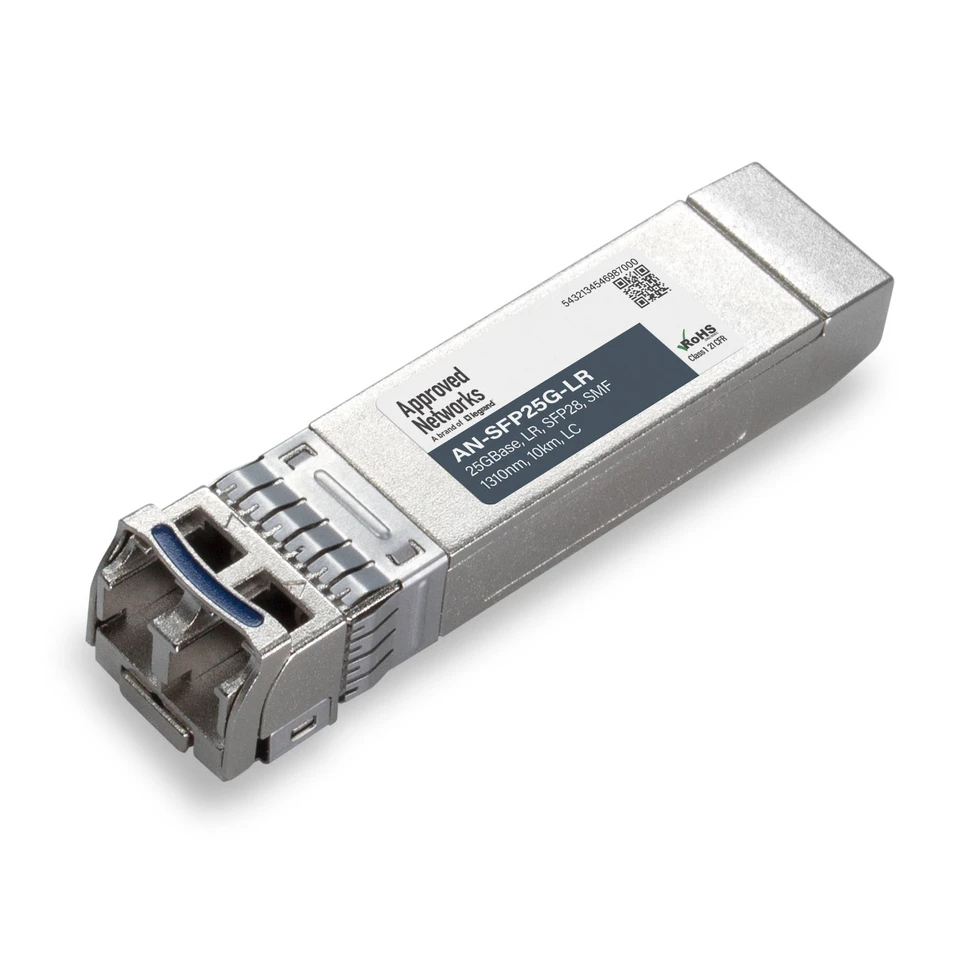

AN-SFP25G-LR network transceiver module Fiber optic 25781.25 Mbit/s SFP28 1310 nm
Model AN-SFP25G-LR
21 specifications
- Speed25781.25 Mbit/s
- TypeSFP28
- ColourMetallic
- SFP transceiver typeFiber optic
- Maximum voltage3.6 V
- Minimum operating temperature-40 °C
Overview
- Speed
- 25781.25 Mbit/s
- Type
- SFP28
- Colour
- Metallic
- SFP transceiver type
- Fiber optic
- Maximum voltage
- 3.6 V
- Minimum operating temperature
- -40 °C
- Brand
- Legrand
- Category
- Network Transceiver Module
- Model
- AN-SFP25G-LR
- Part number
- AN-SFP25G-LR
- Also known as
- Legrand AN-SFP25G-LR network transceiver module Fiber optic 25781.25 Mbit/s SFP28 1310 nm
Specifications
21 specifications in 5 groups
Performance
| Specification | Value |
|---|---|
| SFP transceiver type | Fiber optic |
| Maximum data transfer rate | 25781.25 Mbit/s |
| Interface type | SFP28 |
| Single-mode fiber (SMF) supported | Yes |
| Fiber optic connector | LC |
| SFP transceiver standard | LR |
| Maximum transfer distance | 10000 m |
| Wavelength | 1310 nm |
| Ethernet interface type | 25 Gigabit Ethernet |
| Fiber ethernet cabling technology | 25GBASE |
| Duplex system | Full |
Features
| Specification | Value |
|---|---|
| Product colour | Metallic |
| Form factor | SFP28 |
| Plug and Play | Yes |
| Brand compatibility | MSA Compliant |
Power
| Specification | Value |
|---|---|
| Maximum voltage | 3.6 V |
| Power consumption (typical) | 1.5 W |
Operational conditions
| Specification | Value |
|---|---|
| Minimum operating temperature | -40 °C |
| Maximum operating temperature | 85 °C |
| Operating temperature (T-T) | -40 - 85 °C |
Packaging content
| Specification | Value |
|---|---|
| Quantity per pack | 1 pc(s) |
