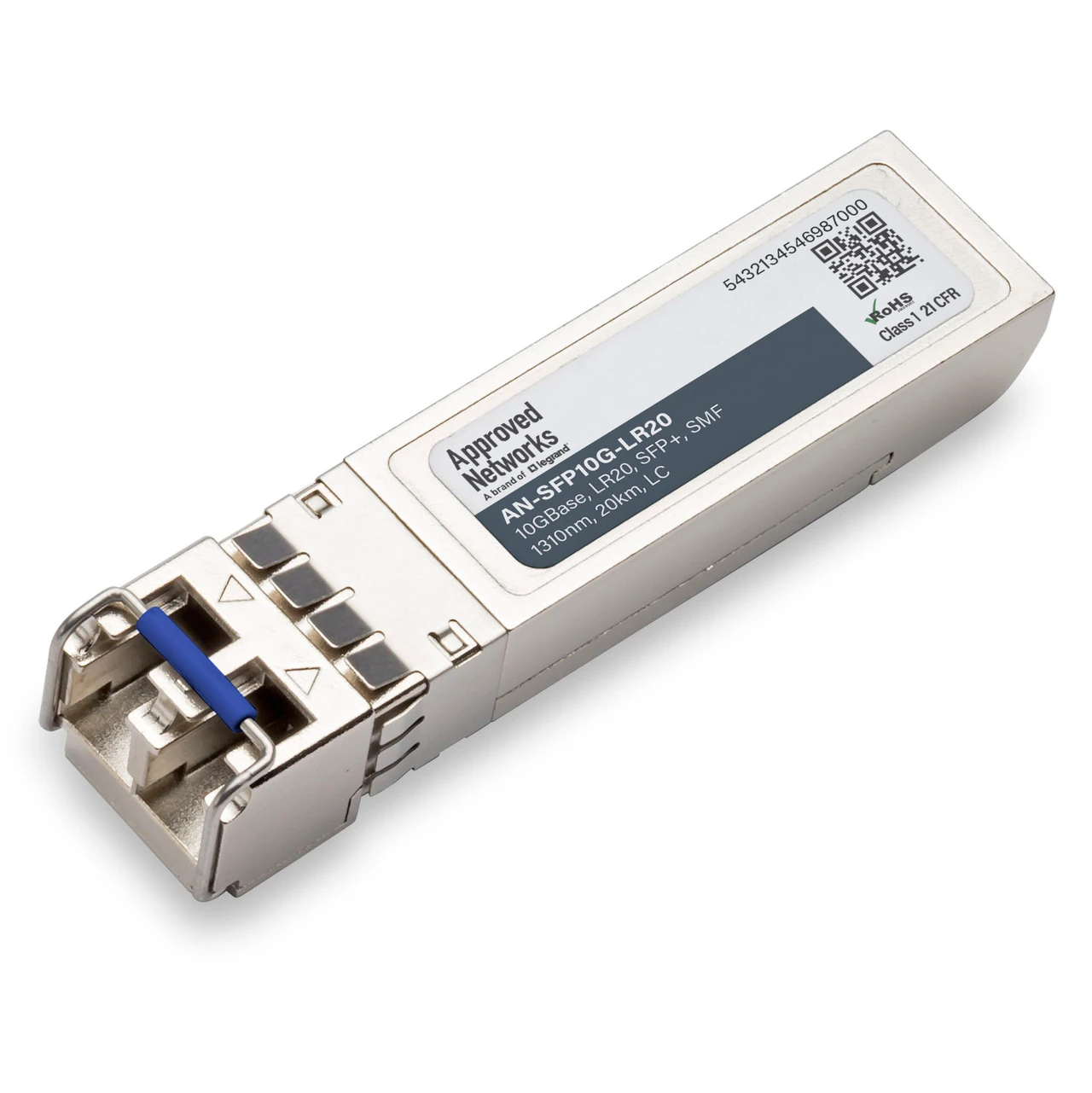

AN-SFP10G-LR20 network transceiver module Fiber optic 11100 Mbit/s SFP+ 1310 nm
Model AN-SFP10G-LR20
24 specifications
- Speed11100 Mbit/s
- TypeSFP+
- ColourSilver
- SFP transceiver typeFiber optic
- Power consumption (typical)1.5 W
- Operating temperature (T-T)-40 - 85 °C
Overview
- Speed
- 11100 Mbit/s
- Type
- SFP+
- Colour
- Silver
- SFP transceiver type
- Fiber optic
- Power consumption (typical)
- 1.5 W
- Operating temperature (T-T)
- -40 - 85 °C
- Brand
- Legrand
- Category
- Network Transceiver Module
- Model
- AN-SFP10G-LR20
- Part number
- AN-SFP10G-LR20
- Also known as
- Legrand AN-SFP10G-LR20 network transceiver module Fiber optic 11100 Mbit/s SFP+ 1310 nm
Specifications
24 specifications in 6 groups
Performance
| Specification | Value |
|---|---|
| SFP transceiver type | Fiber optic |
| Maximum data transfer rate | 11100 Mbit/s |
| Interface type | SFP+ |
| Single-mode fiber (SMF) supported | Yes |
| Fiber optic connector | LC |
| SFP transceiver standard | LR |
| Maximum transfer distance | 20000 m |
| Wavelength | 1310 nm |
| Tx power (min) | -3 dBmW |
| Tx power (max) | 1 dBmW |
| Link budget | 11.4 dB |
| Ethernet interface type | 10 Gigabit Ethernet |
| Fiber ethernet cabling technology | 10GBASE |
| Duplex system | Full |
| Digital Diagnostics Monitoring (DDM) | Yes |
Features
| Specification | Value |
|---|---|
| Product colour | Silver |
| Form factor | SFP+ |
| Plug and Play | Yes |
| Brand compatibility | MSA Compliant |
Power
| Specification | Value |
|---|---|
| Power consumption (typical) | 1.5 W |
Certificates
| Specification | Value |
|---|---|
| Compliance certificates | RoHS |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | -40 - 85 °C |
| Operating relative humidity (H-H) | 5 - 95% |
Packaging content
| Specification | Value |
|---|---|
| Quantity per pack | 1 pc(s) |
