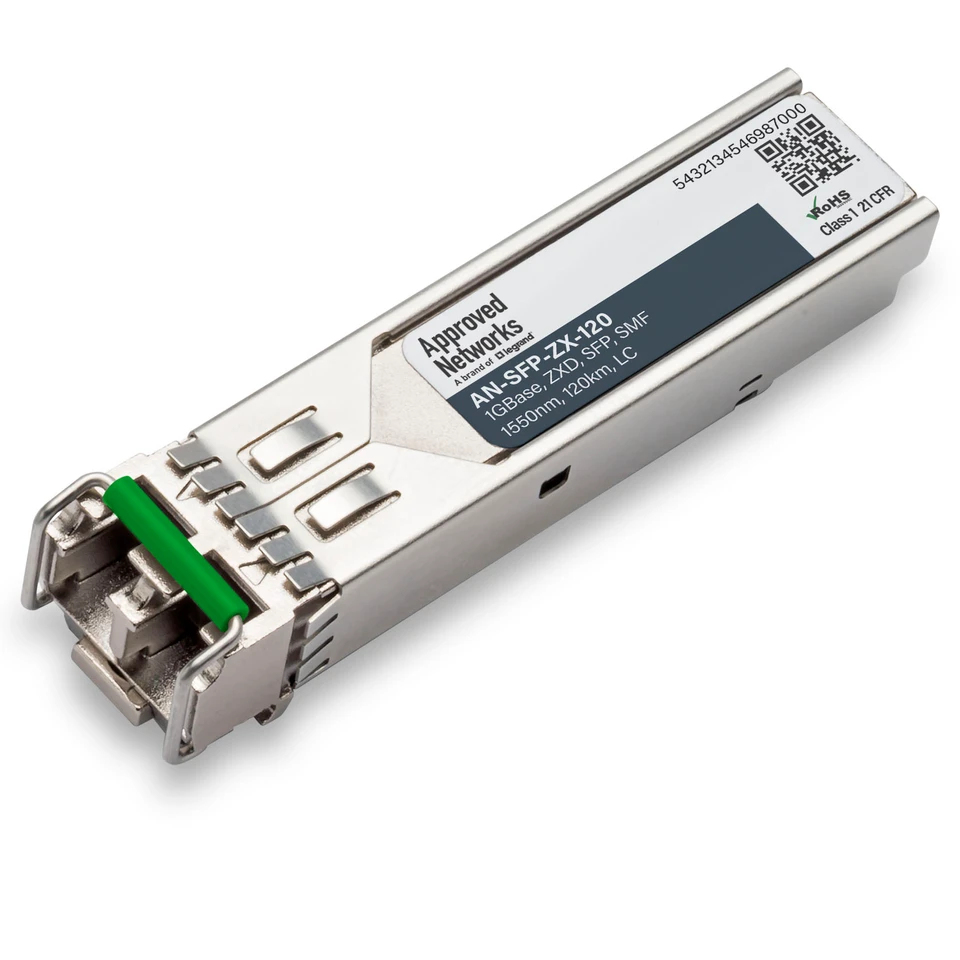

AN-SFP-ZX-120 network transceiver module Fiber optic 1250 Mbit/s 1550 nm
Model AN-SFP-ZX-120
22 specifications
- Speed1250 Mbit/s
- TypeSFP
- ColourMetallic
- SFP transceiver typeFiber optic
- Operating temperature (T-T)-40 - 85 °C
Overview
- Speed
- 1250 Mbit/s
- Type
- SFP
- Colour
- Metallic
- SFP transceiver type
- Fiber optic
- Operating temperature (T-T)
- -40 - 85 °C
- Brand
- Legrand
- Category
- Network Transceiver Module
- Model
- AN-SFP-ZX-120
- Part number
- AN-SFP-ZX-120
- Also known as
- Legrand AN-SFP-ZX-120 network transceiver module Fiber optic 1250 Mbit/s 1550 nm
Specifications
22 specifications in 6 groups
Performance
| Specification | Value |
|---|---|
| SFP transceiver type | Fiber optic |
| Maximum data transfer rate | 1250 Mbit/s |
| Interface type | SFP |
| Single-mode fiber (SMF) supported | Yes |
| Fiber optic connector | LC |
| Fiber cable diameters supported (core/cladding) | 9/125 µm |
| Maximum transfer distance | 120000 m |
| Wavelength | 1550 nm |
| Ethernet interface type | 1.25 Gigabit Ethernet |
| Fiber ethernet cabling technology | 1000BASE |
| Duplex system | Full |
| Digital Diagnostics Monitoring (DDM) | Yes |
Features
| Specification | Value |
|---|---|
| Product colour | Metallic |
| Form factor | SFP |
| Plug and Play | Yes |
| Easy to install | Yes |
| Brand compatibility | MSA Compliant |
Certificates
| Specification | Value |
|---|---|
| Compliance certificates | RoHS |
Sustainability
| Specification | Value |
|---|---|
| Doesn't contain | Lead |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | -40 - 85 °C |
| Operating relative humidity (H-H) | 0 - 85% |
Packaging content
| Specification | Value |
|---|---|
| Quantity per pack | 1 pc(s) |
