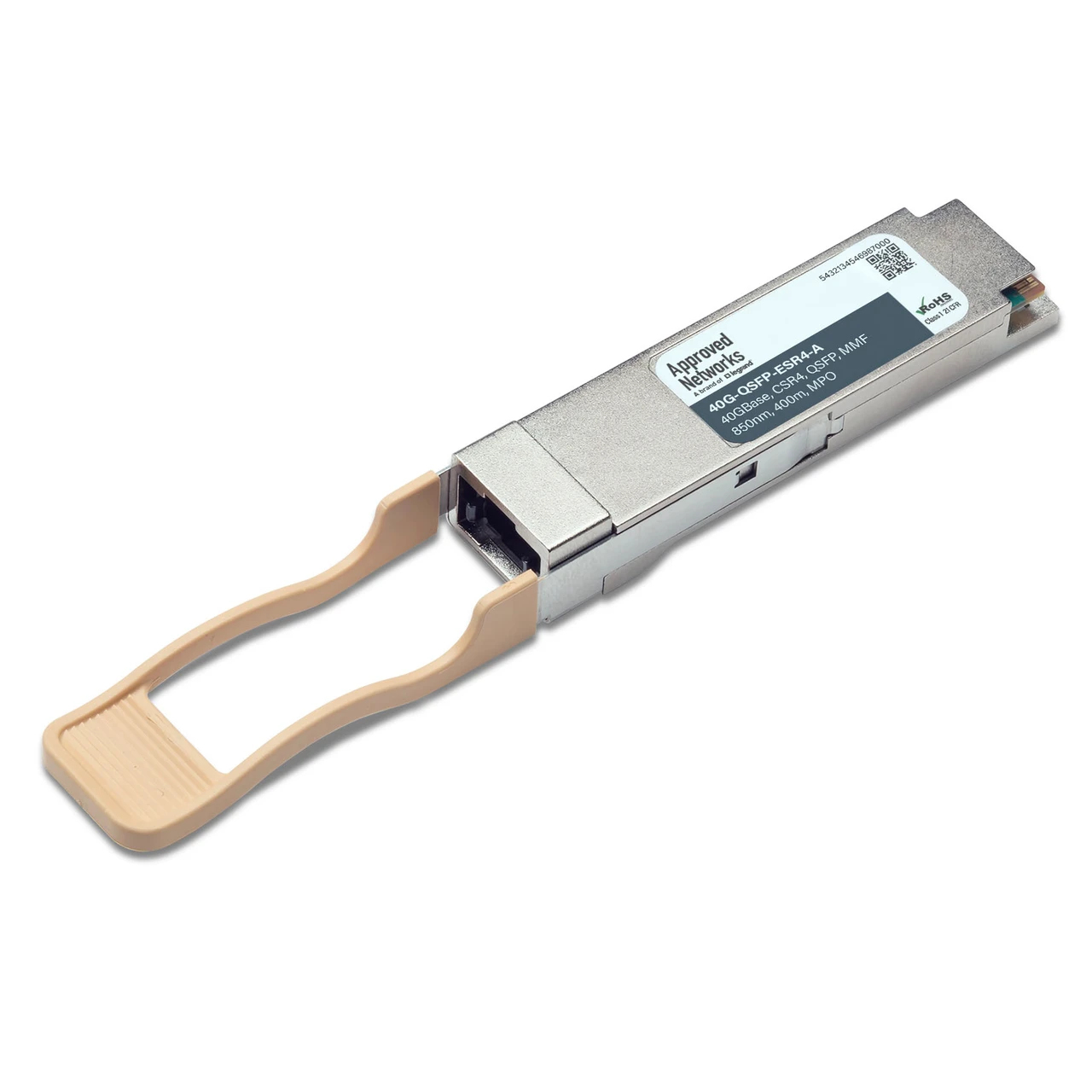

40G-QSFP-ESR4-A network transceiver module Fiber optic 42000 Mbit/s QSFP+ 850 nm
Model 40G-QSFP-ESR4-A
23 specifications
- Speed42000 Mbit/s
- TypeQSFP+
- ColourSilver
- SFP transceiver typeFiber optic
- Power consumption (typical)1 W
- Minimum operating temperature0 °C
Overview
- Speed
- 42000 Mbit/s
- Type
- QSFP+
- Colour
- Silver
- SFP transceiver type
- Fiber optic
- Power consumption (typical)
- 1 W
- Minimum operating temperature
- 0 °C
- Brand
- Legrand
- Category
- Network Transceiver Module
- Model
- 40G-QSFP-ESR4-A
- Part number
- 40G-QSFP-ESR4-A
- Also known as
- Legrand 40G-QSFP-ESR4-A network transceiver module Fiber optic 42000 Mbit/s QSFP+ 850 nm
Specifications
23 specifications in 5 groups
Performance
| Specification | Value |
|---|---|
| SFP transceiver type | Fiber optic |
| Maximum data transfer rate | 42000 Mbit/s |
| Interface type | QSFP+ |
| Multi-mode fiber (MMF) supported | Yes |
| Fiber optic connector | MTP/MPO |
| SFP transceiver standard | CSR4 |
| Maximum transfer distance | 400 m |
| Wavelength | 850 nm |
| Tx power (min) | 7.5 dBmW |
| Tx power (max) | 0 dBmW |
| Link budget | 2.4 dB |
| Fiber ethernet cabling technology | 40GBASE |
| Digital Diagnostics Monitoring (DDM) | Yes |
Features
| Specification | Value |
|---|---|
| Product colour | Silver |
| Form factor | QSFP+ |
| Brand compatibility | Brocade |
Power
| Specification | Value |
|---|---|
| Power consumption (typical) | 1 W |
Operational conditions
| Specification | Value |
|---|---|
| Minimum operating temperature | 0 °C |
| Maximum operating temperature | 70 °C |
| Operating temperature (T-T) | 0 - 70 °C |
| Storage temperature (T-T) | -20 - 85 °C |
| Operating relative humidity (H-H) | 5 - 95% |
Packaging content
| Specification | Value |
|---|---|
| Quantity per pack | 1 pc(s) |
