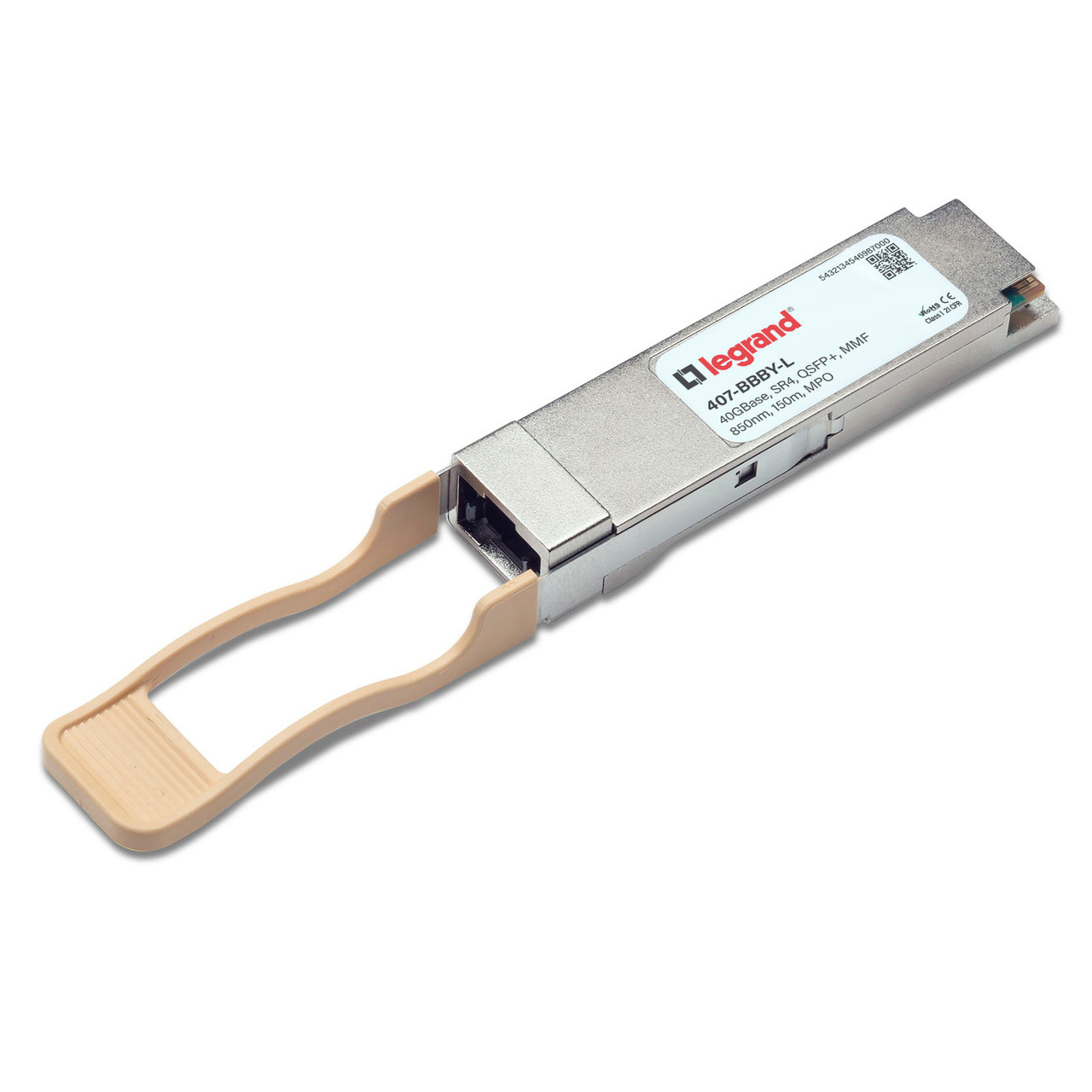

407-BBBY-L network transceiver module Fiber optic 40000 Mbit/s QSFP+ 850 nm
Model 407-BBBY-LEAN 662875065296
23 specifications
- Speed40000 Mbit/s
- TypeQSFP+
- ColourSilver
- SFP transceiver typeFiber optic
- Operating temperature (T-T)0 - 70 °C
- Width18.4 mm
Overview
- Speed
- 40000 Mbit/s
- Type
- QSFP+
- Colour
- Silver
- SFP transceiver type
- Fiber optic
- Operating temperature (T-T)
- 0 - 70 °C
- Width
- 18.4 mm
- Brand
- Legrand
- Category
- Network Transceiver Module
- Model
- 407-BBBY-L
- Part number
- 407-BBBY-L
- EAN / UPC
- 662875065296
- Also known as
- Legrand 407-BBBY-L network transceiver module Fiber optic 40000 Mbit/s QSFP+ 850 nm
Specifications
23 specifications in 5 groups
Performance
| Specification | Value |
|---|---|
| SFP transceiver type | Fiber optic |
| Maximum data transfer rate | 40000 Mbit/s |
| Interface type | QSFP+ |
| Multi-mode fiber (MMF) supported | Yes |
| Fiber optic connector | MTP/MPO |
| SFP transceiver standard | SR4 |
| Maximum transfer distance | 150 m |
| Wavelength | 850 nm |
| Ethernet interface type | 40 Gigabit Ethernet |
| Fiber ethernet cabling technology | 40GBASE |
| Duplex system | Full |
| Digital Diagnostics Monitoring (DDM) | Yes |
Features
| Specification | Value |
|---|---|
| Product colour | Silver |
| Form factor | QSFP+ |
| Hot-Plug support | Yes |
| Hot-swap | Yes |
| Easy to install | Yes |
| Brand compatibility | Dell |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 70 °C |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 18.4 mm |
| Depth | 70.9 mm |
| Height | 8.5 mm |
Logistics data
| Specification | Value |
|---|---|
| Country of origin | China |
