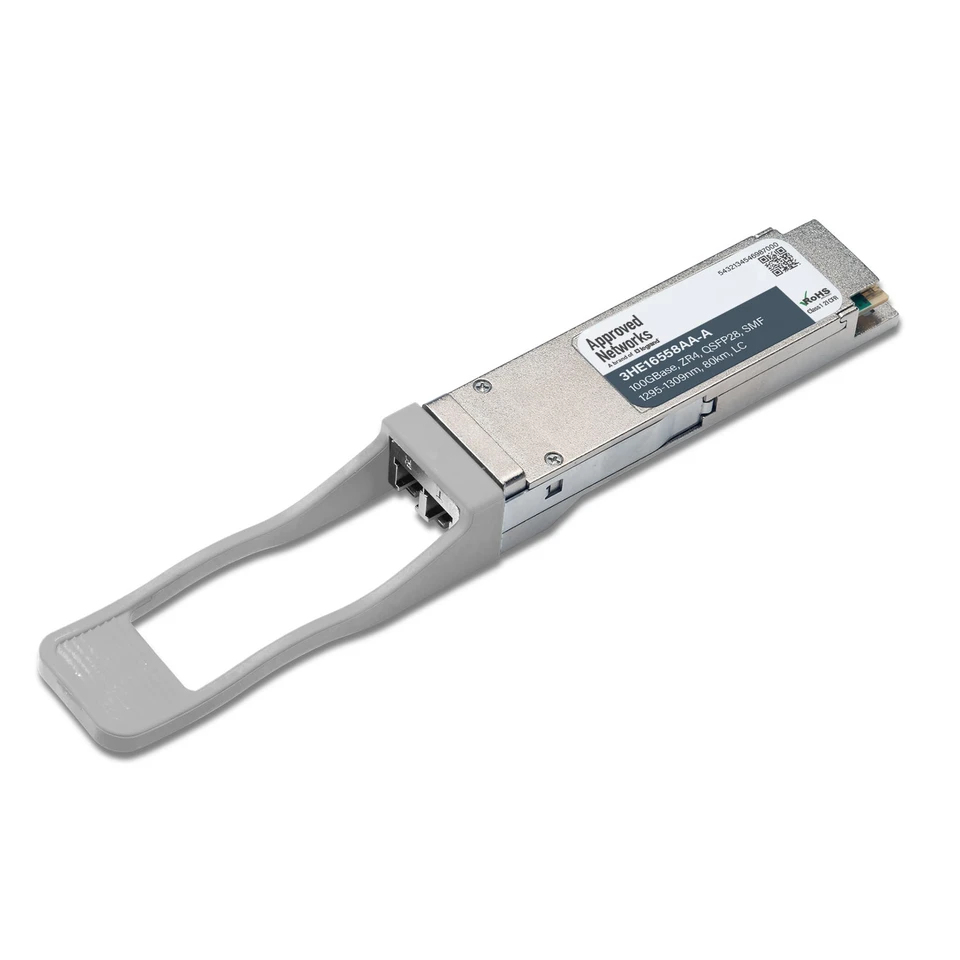

3HE16558AA-A network transceiver module Fiber optic 1031000 Mbit/s QSFP28
Model 3HE16558AA-A
19 specifications
- Speed1031000 Mbit/s
- TypeQSFP28
- ColourMetallic
- SFP transceiver typeFiber optic
- Maximum voltage3.3 V
- Minimum operating temperature0 °C
Overview
- Speed
- 1031000 Mbit/s
- Type
- QSFP28
- Colour
- Metallic
- SFP transceiver type
- Fiber optic
- Maximum voltage
- 3.3 V
- Minimum operating temperature
- 0 °C
- Brand
- Legrand
- Category
- Network Transceiver Module
- Model
- 3HE16558AA-A
- Part number
- 3HE16558AA-A
- Also known as
- Legrand 3HE16558AA-A network transceiver module Fiber optic 1031000 Mbit/s QSFP28
Specifications
19 specifications in 5 groups
Performance
| Specification | Value |
|---|---|
| SFP transceiver type | Fiber optic |
| Maximum data transfer rate | 1031000 Mbit/s |
| Interface type | QSFP28 |
| Single-mode fiber (SMF) supported | Yes |
| Fiber optic connector | LC |
| SFP transceiver standard | ZR4 |
| Maximum transfer distance | 80000 m |
| Ethernet interface type | 100 Gigabit Ethernet |
| Fiber ethernet cabling technology | 100GBASE |
Features
| Specification | Value |
|---|---|
| Product colour | Metallic |
| Form factor | QSFP28 |
| Plug and Play | Yes |
| Brand compatibility | Nokia |
Power
| Specification | Value |
|---|---|
| Maximum voltage | 3.3 V |
| Power consumption (typical) | 6 W |
Operational conditions
| Specification | Value |
|---|---|
| Minimum operating temperature | 0 °C |
| Maximum operating temperature | 70 °C |
| Operating temperature (T-T) | 0 - 70 °C |
Packaging content
| Specification | Value |
|---|---|
| Quantity per pack | 1 pc(s) |
