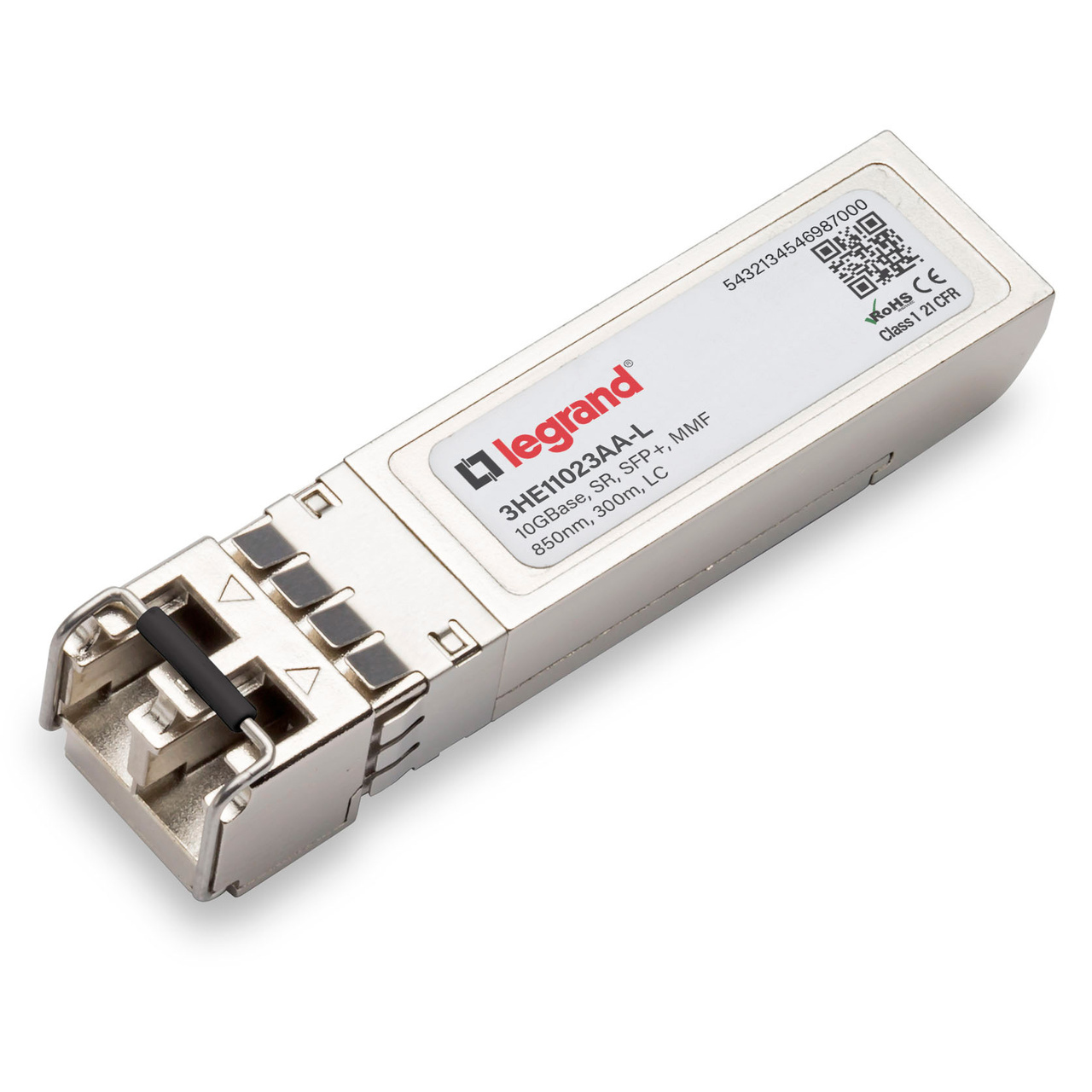

3HE11023AA-L network transceiver module Fiber optic 10000 Mbit/s SFP+ 850 nm
Model 3HE11023AA-L
17 specifications
- Speed10000 Mbit/s
- TypeSFP+
- ColourSilver
- SFP transceiver typeFiber optic
- Operating temperature (T-T)-40 - 85 °C
Overview
- Speed
- 10000 Mbit/s
- Type
- SFP+
- Colour
- Silver
- SFP transceiver type
- Fiber optic
- Operating temperature (T-T)
- -40 - 85 °C
- Brand
- Legrand
- Category
- Network Transceiver Module
- Model
- 3HE11023AA-L
- Part number
- 3HE11023AA-L
- Also known as
- Legrand 3HE11023AA-L network transceiver module Fiber optic 10000 Mbit/s SFP+ 850 nm
Specifications
17 specifications in 5 groups
Performance
| Specification | Value |
|---|---|
| SFP transceiver type | Fiber optic |
| Maximum data transfer rate | 10000 Mbit/s |
| Interface type | SFP+ |
| Multi-mode fiber (MMF) supported | Yes |
| Fiber optic connector | LC |
| SFP transceiver standard | SR |
| Maximum transfer distance | 300 m |
| Wavelength | 850 nm |
| Fiber ethernet cabling technology | 10GBASE |
| Duplex system | Full |
| Digital Diagnostics Monitoring (DDM) | Yes |
Features
| Specification | Value |
|---|---|
| Product colour | Silver |
| Form factor | SFP+ |
| Brand compatibility | Alcatel |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | -40 - 85 °C |
Packaging content
| Specification | Value |
|---|---|
| Quantity per pack | 1 pc(s) |
Logistics data
| Specification | Value |
|---|---|
| Country of origin | China |
