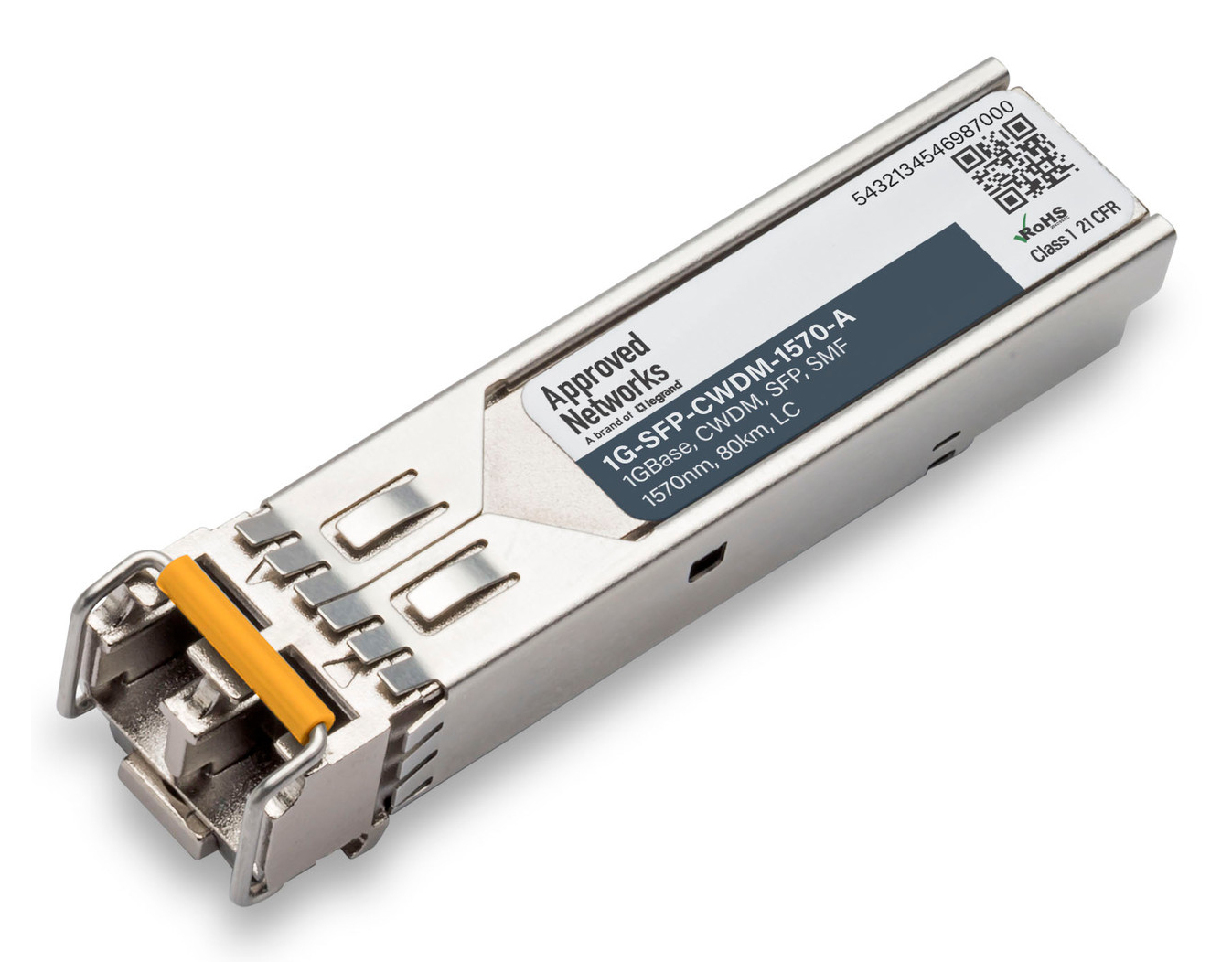

1G-SFP-CWDM-1570-A network transceiver module Fiber optic 1250 Mbit/s 1570 nm
Model 1G-SFP-CWDM-1570-A
19 specifications
- Speed1250 Mbit/s
- ColourStainless steel, Orange
- SFP transceiver typeFiber optic
- Input voltage3.3 V
- Operating temperature (T-T)-40 - 85 °C
Overview
- Speed
- 1250 Mbit/s
- Colour
- Stainless steel, Orange
- SFP transceiver type
- Fiber optic
- Input voltage
- 3.3 V
- Operating temperature (T-T)
- -40 - 85 °C
- Brand
- Legrand
- Category
- Network Transceiver Module
- Model
- 1G-SFP-CWDM-1570-A
- Part number
- 1G-SFP-CWDM-1570-A
- Also known as
- Legrand 1G-SFP-CWDM-1570-A network transceiver module Fiber optic 1250 Mbit/s 1570 nm
Specifications
19 specifications in 5 groups
Performance
| Specification | Value |
|---|---|
| SFP transceiver type | Fiber optic |
| Maximum data transfer rate | 1250 Mbit/s |
| Interface type | SFP |
| Single-mode fiber (SMF) supported | Yes |
| Fiber optic connector | LC |
| Fiber cable diameters supported (core/cladding) | 9/125 µm |
| Maximum transfer distance | 80000 m |
| Wavelength | 1570 nm |
| Fiber ethernet cabling technology | 1000BASE |
| Digital Diagnostics Monitoring (DDM) | Yes |
Features
| Specification | Value |
|---|---|
| Product colour | Stainless steel, Orange |
| Housing material | Metal |
| Hot-Plug support | Yes |
| Compatible products | SFF-8472 |
Power
| Specification | Value |
|---|---|
| Input voltage | 3.3 V |
| Maximum voltage | 3.47 V |
| Power consumption (typical) | 1 W |
Certificates
| Specification | Value |
|---|---|
| Compliance certificates | RoHS |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | -40 - 85 °C |
