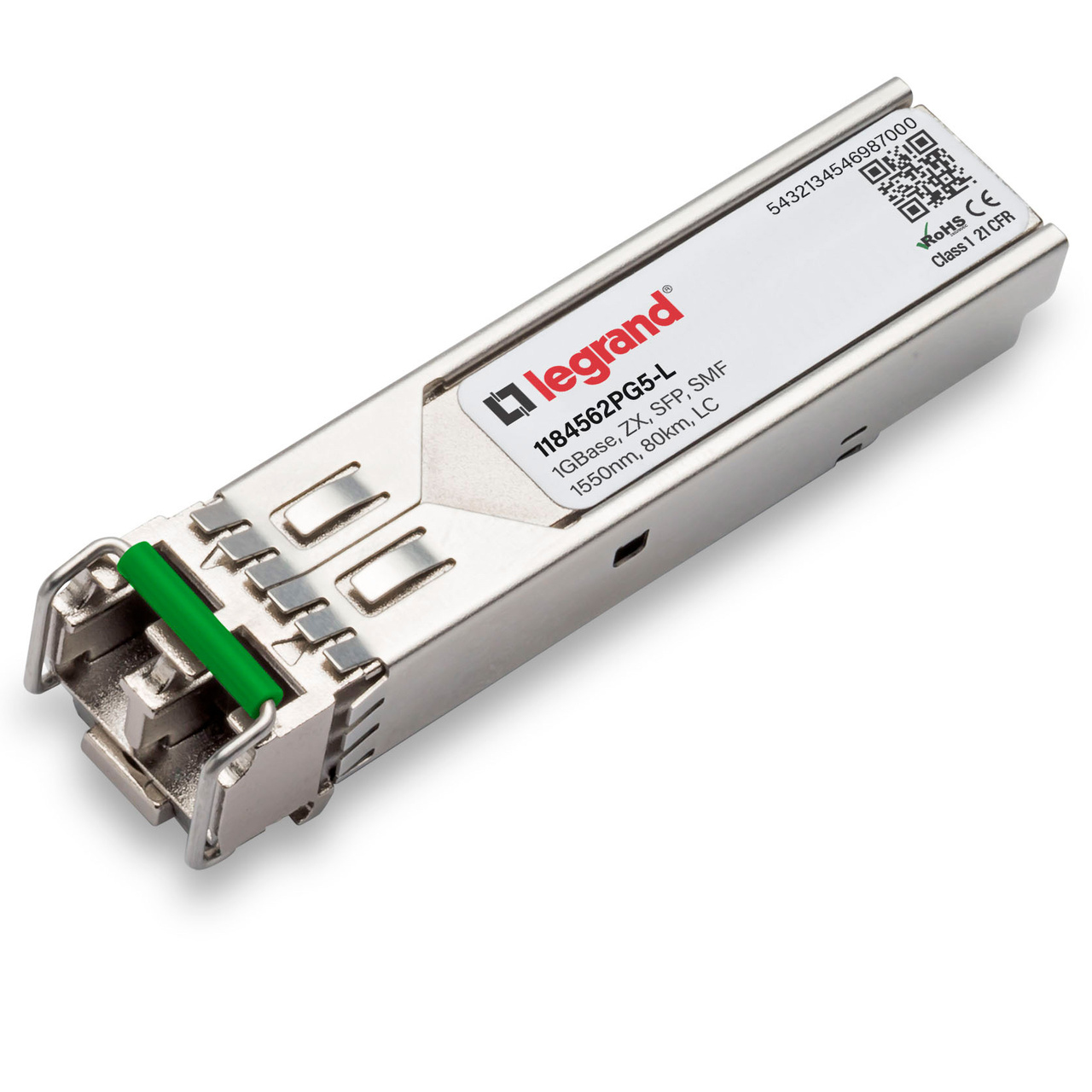

1184562PG5-OP network transceiver module Fiber optic 1000 Mbit/s SFP 1550 nm
Model 1184562PG5-OPEAN 662875074557
23 specifications
- Speed1000 Mbit/s
- TypeSFP
- ColourSilver
- SFP transceiver typeFiber optic
- Operating temperature (T-T)-40 - 85 °C
- Width13.4 mm
Overview
- Speed
- 1000 Mbit/s
- Type
- SFP
- Colour
- Silver
- SFP transceiver type
- Fiber optic
- Operating temperature (T-T)
- -40 - 85 °C
- Width
- 13.4 mm
- Brand
- Legrand
- Category
- Network Transceiver Module
- Model
- 1184562PG5-OP
- Part number
- 1184562PG5-OP
- EAN / UPC
- 662875074557
- Also known as
- Legrand 1184562PG5-OP network transceiver module Fiber optic 1000 Mbit/s SFP 1550 nm
Specifications
23 specifications in 5 groups
Performance
| Specification | Value |
|---|---|
| SFP transceiver type | Fiber optic |
| Maximum data transfer rate | 1000 Mbit/s |
| Interface type | SFP |
| Single-mode fiber (SMF) supported | Yes |
| Fiber optic connector | LC |
| SFP transceiver standard | ZX |
| Maximum transfer distance | 80000 m |
| Wavelength | 1550 nm |
| Ethernet interface type | Fast Ethernet |
| Fiber ethernet cabling technology | 1000BASE |
| Duplex system | Full |
| Digital Diagnostics Monitoring (DDM) | Yes |
Features
| Specification | Value |
|---|---|
| Product colour | Silver |
| Form factor | SFP |
| Hot-Plug support | Yes |
| Hot-swap | Yes |
| Easy to install | Yes |
| Brand compatibility | Adtran |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | -40 - 85 °C |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 13.4 mm |
| Depth | 56.6 mm |
| Height | 13.4 mm |
Logistics data
| Specification | Value |
|---|---|
| Country of origin | China |
