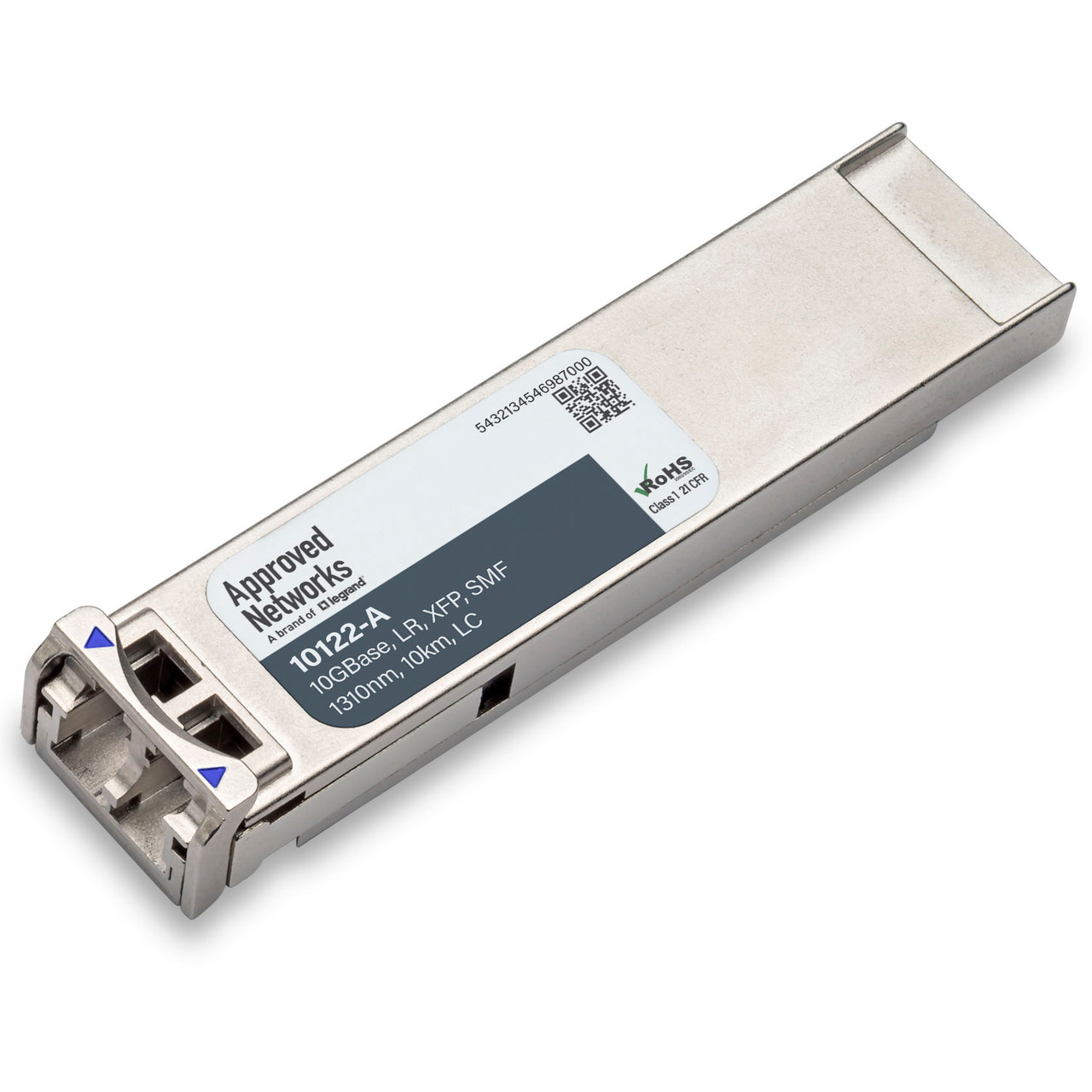

10122-A network transceiver module Fiber optic 10000 Mbit/s XFP 1310 nm
Model 10122-A
22 specifications
- Speed10000 Mbit/s
- TypeXFP
- ColourSilver
- SFP transceiver typeFiber optic
- Power consumption (typical)2.5 W
- Minimum operating temperature0 °C
Overview
- Speed
- 10000 Mbit/s
- Type
- XFP
- Colour
- Silver
- SFP transceiver type
- Fiber optic
- Power consumption (typical)
- 2.5 W
- Minimum operating temperature
- 0 °C
- Brand
- Legrand
- Category
- Network Transceiver Module
- Model
- 10122-A
- Part number
- 10122-A
- Also known as
- Legrand 10122-A network transceiver module Fiber optic 10000 Mbit/s XFP 1310 nm
Specifications
22 specifications in 5 groups
Performance
| Specification | Value |
|---|---|
| SFP transceiver type | Fiber optic |
| Maximum data transfer rate | 10000 Mbit/s |
| Interface type | XFP |
| Single-mode fiber (SMF) supported | Yes |
| SFP transceiver standard | LR |
| Maximum transfer distance | 10000 m |
| Wavelength | 1310 nm |
| Tx power (min) | -6 dBmW |
| Tx power (max) | 0 dBmW |
| Link budget | 8 dB |
| Ethernet interface type | 10 Gigabit Ethernet |
| Digital Diagnostics Monitoring (DDM) | Yes |
Features
| Specification | Value |
|---|---|
| Product colour | Silver |
| Form factor | XFP |
| Brand compatibility | Extreme Networks |
Power
| Specification | Value |
|---|---|
| Power consumption (typical) | 2.5 W |
Certificates
| Specification | Value |
|---|---|
| Compliance certificates | RoHS |
Operational conditions
| Specification | Value |
|---|---|
| Minimum operating temperature | 0 °C |
| Maximum operating temperature | 70 °C |
| Operating temperature (T-T) | 0 - 70 °C |
| Storage temperature (T-T) | -40 - 85 °C |
| Operating relative humidity (H-H) | 0 - 85% |
