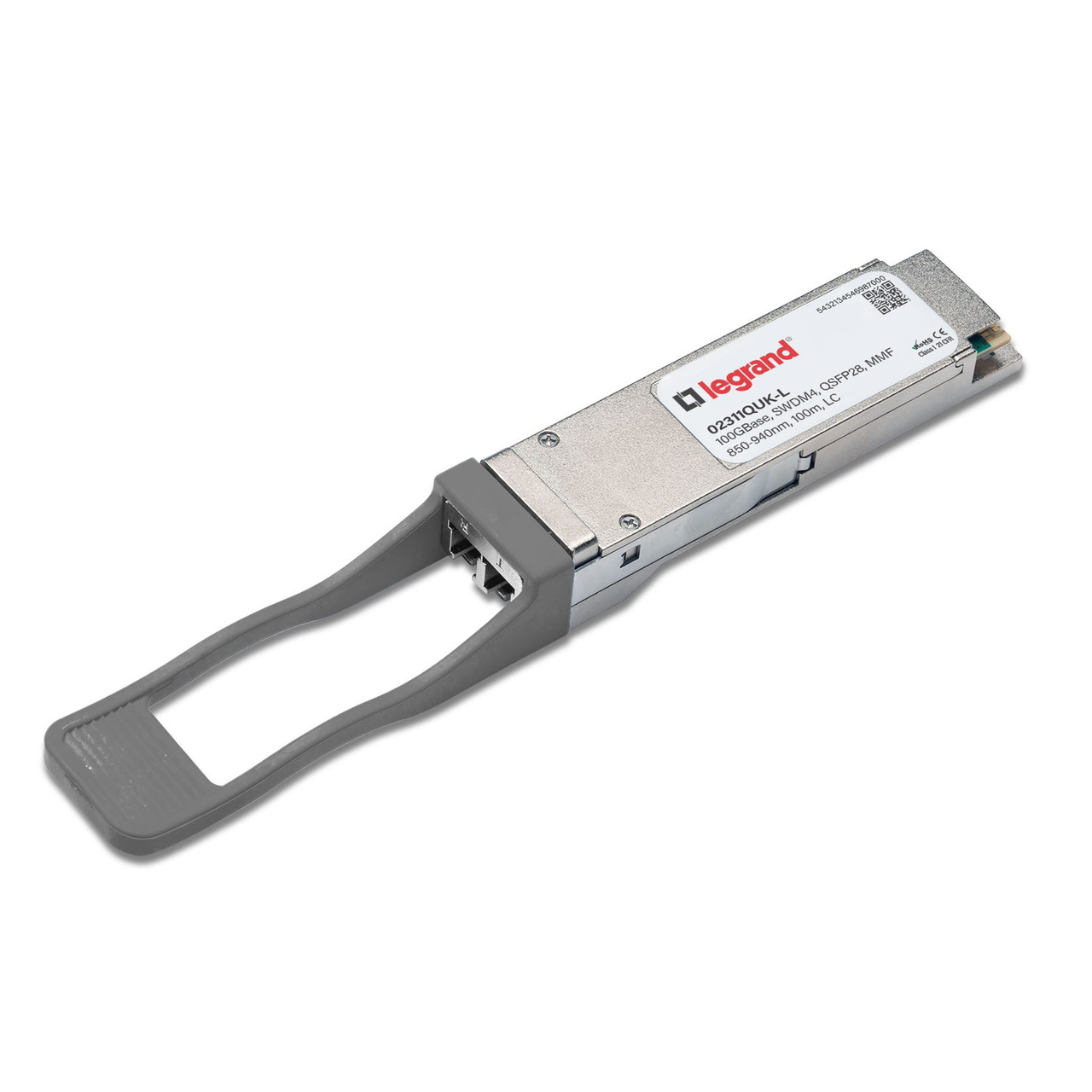

02311QUK-L network transceiver module Fiber optic 100000 Mbit/s QSFP28
Model 02311QUK-L
21 specifications
- Speed100000 Mbit/s
- TypeQSFP28
- ColourSilver
- SFP transceiver typeFiber optic
- Minimum operating temperature0 °C
Overview
- Speed
- 100000 Mbit/s
- Type
- QSFP28
- Colour
- Silver
- SFP transceiver type
- Fiber optic
- Minimum operating temperature
- 0 °C
- Brand
- Legrand
- Category
- Network Transceiver Module
- Model
- 02311QUK-L
- Part number
- 02311QUK-L
- Also known as
- Legrand 02311QUK-L network transceiver module Fiber optic 100000 Mbit/s QSFP28
Specifications
21 specifications in 5 groups
Performance
| Specification | Value |
|---|---|
| SFP transceiver type | Fiber optic |
| Maximum data transfer rate | 100000 Mbit/s |
| Interface type | QSFP28 |
| Multi-mode fiber (MMF) supported | Yes |
| Fiber optic connector | LC, QSFP28 |
| SFP transceiver standard | SWDM4 |
| Maximum transfer distance | 100 m |
| Tx wavelength (min) | 850 nm |
| Tx wavelength (max) | 940 nm |
| Ethernet interface type | 100 Gigabit Ethernet |
| Fiber ethernet cabling technology | 100GBASE |
| Duplex system | Full |
| Digital Diagnostics Monitoring (DDM) | Yes |
Features
| Specification | Value |
|---|---|
| Product colour | Silver |
| Form factor | QSFP28 |
| Brand compatibility | Huawei |
Operational conditions
| Specification | Value |
|---|---|
| Minimum operating temperature | 0 °C |
| Maximum operating temperature | 70 °C |
| Operating temperature (T-T) | 0 - 70 °C |
Packaging content
| Specification | Value |
|---|---|
| Quantity per pack | 1 pc(s) |
Logistics data
| Specification | Value |
|---|---|
| Country of origin | Malaysia |
