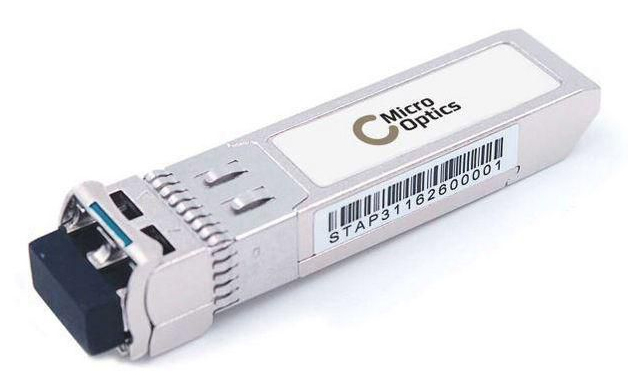

MO-UACC-OM-SFP28-LR network transceiver module Fiber optic 25000 Mbit/s 1310 nm
Model MO-UACC-OM-SFP28-LREAN 5715328133730
21 specifications
- Speed25000 Mbit/s
- Weight25 g
- SFP transceiver typeFiber optic
- Compatible productsUbiquiti UACC-OM-SFP28-LR
- Operating temperature (T-T)0 - 70 °C
Overview
- Speed
- 25000 Mbit/s
- Weight
- 25 g
- SFP transceiver type
- Fiber optic
- Compatible products
- Ubiquiti UACC-OM-SFP28-LR
- Operating temperature (T-T)
- 0 - 70 °C
- Brand
- Lanview
- Category
- Network Transceiver Module
- Model
- MO-UACC-OM-SFP28-LR
- Part number
- MO-UACC-OM-SFP28-LR
- EAN / UPC
- 5715328133730
- Also known as
- Lanview MO-UACC-OM-SFP28-LR network transceiver module Fiber optic 25000 Mbit/s 1310 nm
Specifications
21 specifications in 7 groups
Performance
| Specification | Value |
|---|---|
| SFP transceiver type | Fiber optic |
| Maximum data transfer rate | 25000 Mbit/s |
| Single-mode fiber (SMF) supported | Yes |
| Multi-mode fiber (MMF) supported | No |
| Fiber cable diameters supported (core/cladding) | 9/125 µm |
| SFP transceiver standard | LR |
| Maximum transfer distance | 10000 m |
| Wavelength | 1310 nm |
| Ethernet interface type | 25 Gigabit Ethernet |
| Fiber ethernet cabling technology | 25GBASE |
| Duplex system | Full |
| Digital Diagnostics Monitoring (DDM) | Yes |
Features
| Specification | Value |
|---|---|
| Compatible products | Ubiquiti UACC-OM-SFP28-LR |
Certificates
| Specification | Value |
|---|---|
| Certification | MSA |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 70 °C |
| Storage temperature (T-T) | -40 - 85 °C |
| Operating relative humidity (H-H) | 10 - 80% |
| Storage relative humidity (H-H) | 10 - 85% |
Weight & dimensions
| Specification | Value |
|---|---|
| Weight | 25 g |
Packaging content
| Specification | Value |
|---|---|
| Quantity per pack | 1 pc(s) |
Packaging data
| Specification | Value |
|---|---|
| Package weight | 36 g |
