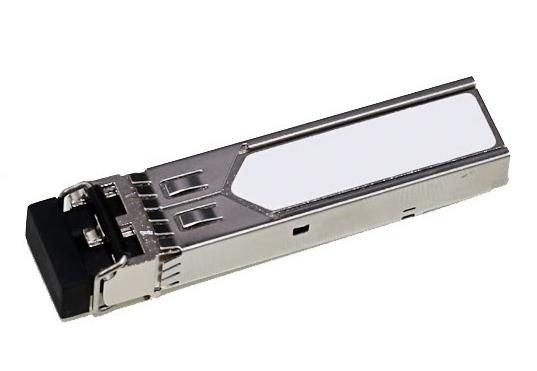

MO-SP31B33CDL10 network transceiver module Fiber optic 10000 Mbit/s SFP+ 1310 nm
Model MO-SP31B33CDL10EAN 5711045497360
40 specifications
- Speed10000 Mbit/s
- Weight10 g
- ColourMetallic
- SFP transceiver typeFiber optic
- Minimum operating temperature0 °C
- Width105 mm
Overview
- Speed
- 10000 Mbit/s
- Weight
- 10 g
- Colour
- Metallic
- SFP transceiver type
- Fiber optic
- Minimum operating temperature
- 0 °C
- Width
- 105 mm
- Brand
- Lanview
- Category
- Network Transceiver Module
- Model
- MO-SP31B33CDL10
- Part number
- MO-SP31B33CDL10
- EAN / UPC
- 5711045497360
- Also known as
- Lanview MO-SP31B33CDL10 network transceiver module Fiber optic 10000 Mbit/s SFP+ 1310 nm
Specifications
40 specifications in 7 groups
Performance
| Specification | Value |
|---|---|
| SFP transceiver type | Fiber optic |
| Maximum data transfer rate | 10000 Mbit/s |
| Interface type | SFP+ |
| Single-mode fiber (SMF) supported | Yes |
| Multi-mode fiber (MMF) supported | No |
| Fiber optic connector | LC |
| SFP transceiver standard | LR |
| Maximum transfer distance | 10000 m |
| Wavelength | 1310 nm |
| Ethernet interface type | 10 Gigabit Ethernet |
| Cabling technology | 1000/10000 |
| Fiber ethernet cabling technology | 10GBASE |
| Duplex system | Full |
| Auto MDI/MDI-X | Yes |
| Digital Diagnostics Monitoring (DDM) | Yes |
| Fiber ports quantity | 1 |
Features
| Specification | Value |
|---|---|
| Product colour | Metallic |
| Plug and Play | Yes |
| Hot-Plug support | Yes |
| Easy to install | Yes |
| Brand compatibility | Aruba Networks |
| Compatible products | HPE Aruba J9151A, J9151B, J9151C, J9151D, J9151E |
Certificates
| Specification | Value |
|---|---|
| Compliance certificates | RoHS |
| Certification | MSA |
Operational conditions
| Specification | Value |
|---|---|
| Minimum operating temperature | 0 °C |
| Maximum operating temperature | 70 °C |
| Operating temperature (T-T) | 0 - 70 °C |
| Storage temperature (T-T) | -40 - 85 °C |
| Operating relative humidity (H-H) | 10 - 80% |
| Storage relative humidity (H-H) | 10 - 85% |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 105 mm |
| Depth | 69 mm |
| Height | 23 mm |
| Weight | 10 g |
Packaging content
| Specification | Value |
|---|---|
| Quantity per pack | 1 pc(s) |
Packaging data
| Specification | Value |
|---|---|
| Package width | 105 mm |
| Package depth | 69 mm |
| Package height | 23 mm |
| Package weight | 34 g |
| Package type | Window box |
