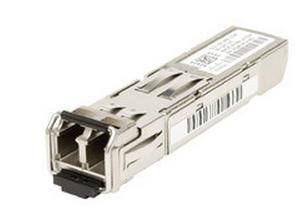

Lanview MO-SFP2173DL network transceiver module Fiber optic 1000 Mbit/s SFP 850 nm

MO-SFP2173DL network transceiver module Fiber optic 1000 Mbit/s SFP 850 nm

Model MO-SFP2173DLEAN 5711045116315

28 specifications

Speed1000 Mbit/s
Weight40 g
SFP transceiver typeFiber optic
Plug and PlayYes
Minimum operating temperature-45 °C

See all specifications

Overview

Speed: 1000 Mbit/s
Weight: 40 g
SFP transceiver type: Fiber optic
Plug and Play: Yes
Minimum operating temperature: -45 °C

Brand: Lanview
Category: Network Transceiver Module
Model: MO-SFP2173DL
Part number: MO-SFP2173DL
EAN / UPC: 5711045116315
Also known as: Lanview MO-SFP2173DL network transceiver module Fiber optic 1000 Mbit/s SFP 850 nm

Specifications

28 specifications in 9 groups

Performance

Specification	Value
SFP transceiver type	Fiber optic
Maximum data transfer rate	1000 Mbit/s
Interface type	SFP
Single-mode fiber (SMF) supported	No
Multi-mode fiber (MMF) supported	Yes
Fiber optic connector	LC
Maximum transfer distance	500 m
Wavelength	850 nm
Duplex system	Full
Digital Diagnostics Monitoring (DDM)	Yes
Fiber ports quantity	1

Features

Specification	Value
Plug and Play	Yes
Easy to install	Yes
Brand compatibility	Dell
Compatible products	Dell 320-2881

Certificates

Specification	Value
Compliance certificates	RoHS
Certification	MSA

Sustainability

Specification	Value
Sustainability compliance	Yes

Operational conditions

Specification	Value
Minimum operating temperature	-45 °C
Maximum operating temperature	75 °C
Operating temperature (T-T)	-45 - 75 °C
Storage temperature (T-T)	-40 - 85 °C
Storage relative humidity (H-H)	10 - 85%

Weight & dimensions

Specification	Value
Weight	40 g

Packaging content

Specification	Value
Quantity per pack	1 pc(s)

Packaging data

Specification	Value
Package weight	50 g
Package type	Window box

Logistics data

Specification	Value
Warranty period	3 year(s)
