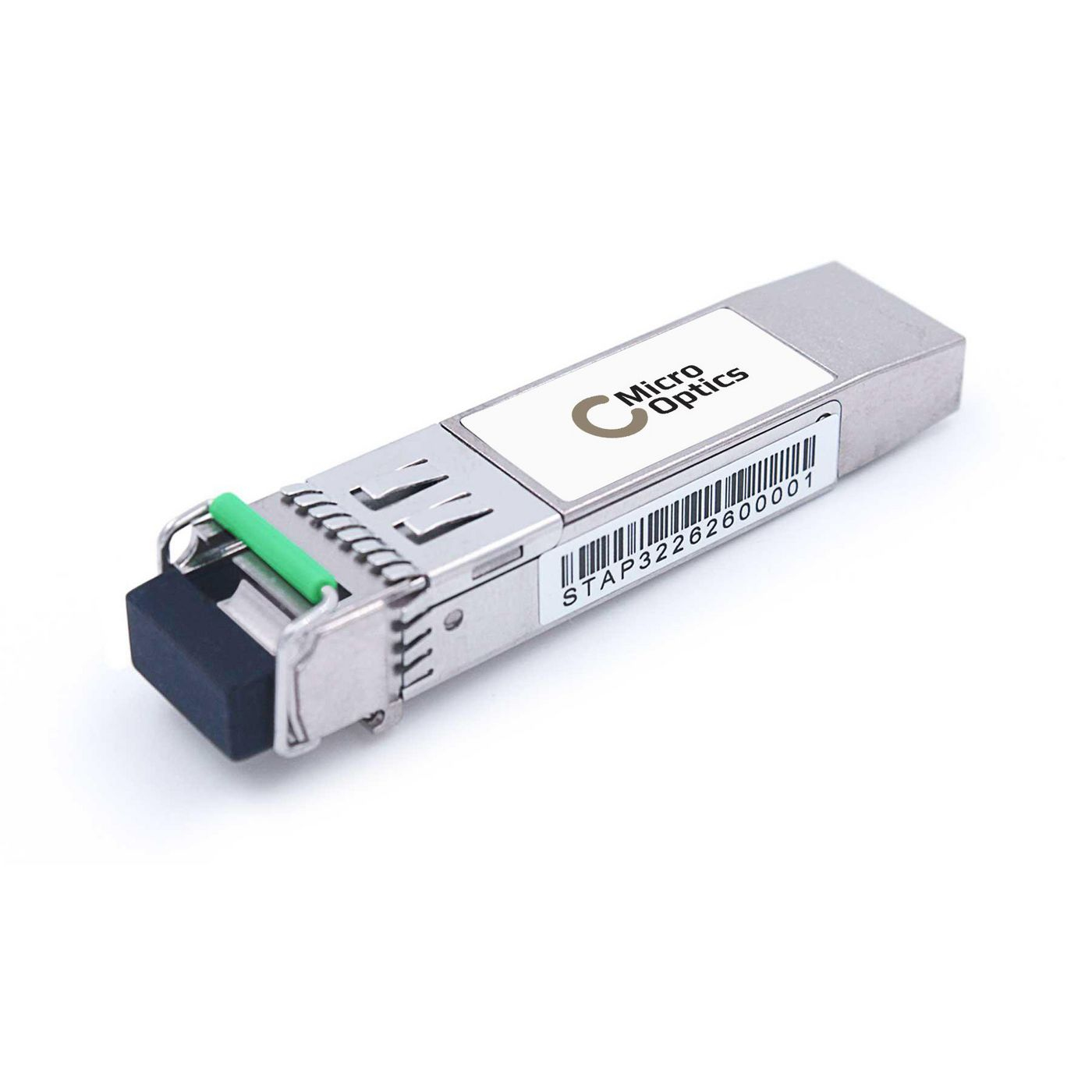

MO-MTB-TLA20 network transceiver module Fiber optic 10000 Mbit/s SFP+
Model MO-MTB-TLA20EAN 5704174260493
32 specifications
- Speed10000 Mbit/s
- TypeSFP+
- Weight50 g
- SFP transceiver typeFiber optic
- Width106 mm
Overview
- Speed
- 10000 Mbit/s
- Type
- SFP+
- Weight
- 50 g
- SFP transceiver type
- Fiber optic
- Width
- 106 mm
- Brand
- Lanview
- Category
- Network Transceiver Module
- Model
- MO-MTB-TLA20
- Part number
- MO-MTB-TLA20
- EAN / UPC
- 5704174260493
- Also known as
- Lanview MO-MTB-TLA20 network transceiver module Fiber optic 10000 Mbit/s SFP+
Specifications
32 specifications in 6 groups
Performance
| Specification | Value |
|---|---|
| SFP transceiver type | Fiber optic |
| Maximum data transfer rate | 10000 Mbit/s |
| Interface type | SFP+ |
| Single-mode fiber (SMF) supported | Yes |
| Multi-mode fiber (MMF) supported | No |
| Fiber optic connector | LC |
| Fiber cable diameters supported (core/cladding) | 9/125 µm |
| SFP transceiver standard | BX-U |
| Maximum transfer distance | 20000 m |
| Tx wavelength (max) | 1270 nm |
| Rx wavelength (max) | 1330 nm |
| Duplex system | Full |
| Digital Diagnostics Monitoring (DDM) | Yes |
| Fiber ports quantity | 1 |
Features
| Specification | Value |
|---|---|
| Form factor | SFP+ |
| Plug and Play | Yes |
| Hot-Plug support | Yes |
| Hot-swap | Yes |
| Easy to install | Yes |
| Brand compatibility | Planet |
| Compatible products | MTB-LA20 |
Certificates
| Specification | Value |
|---|---|
| Certification | MSA |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 106 mm |
| Depth | 68 mm |
| Height | 23 mm |
| Weight | 50 g |
Packaging content
| Specification | Value |
|---|---|
| Quantity per pack | 1 pc(s) |
Packaging data
| Specification | Value |
|---|---|
| Package width | 106 mm |
| Package depth | 68 mm |
| Package height | 23 mm |
| Package weight | 60 g |
| Package type | Window box |
