Lanview MO-MGB-SX network transceiver module Fiber optic 1000 Mbit/s 850 nm
Model MO-MGB-SXEAN 5712505767177
27 specifications
- Speed1000 Mbit/s
- Weight40 g
- SFP transceiver typeFiber optic
- Plug and PlayYes
- Operating temperature (T-T)-45 - 75 °C
- Width14 mm
Overview
- Speed
- 1000 Mbit/s
- Weight
- 40 g
- SFP transceiver type
- Fiber optic
- Plug and Play
- Yes
- Operating temperature (T-T)
- -45 - 75 °C
- Width
- 14 mm
- Brand
- Lanview
- Category
- Network Transceiver Module
- Model
- MO-MGB-SX
- Part number
- MO-MGB-SX
- EAN / UPC
- 5712505767177
- Also known as
- Lanview MO-MGB-SX network transceiver module Fiber optic 1000 Mbit/s 850 nm
Specifications
27 specifications in 7 groups
Performance
| Specification | Value |
|---|---|
| SFP transceiver type | Fiber optic |
| Maximum data transfer rate | 1000 Mbit/s |
| Single-mode fiber (SMF) supported | No |
| Multi-mode fiber (MMF) supported | Yes |
| Maximum transfer distance | 550 m |
| Wavelength | 850 nm |
| Link budget | 8 dB |
| Duplex system | Full |
| Digital Diagnostics Monitoring (DDM) | Yes |
| Fiber ports quantity | 1 |
Features
| Specification | Value |
|---|---|
| Plug and Play | Yes |
| Easy to install | Yes |
| Compatible products | Planet MGB-SX |
Certificates
| Specification | Value |
|---|---|
| Certification | MSA |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | -45 - 75 °C |
| Storage temperature (T-T) | -40 - 85 °C |
| Storage relative humidity (H-H) | 10 - 85% |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 14 mm |
| Depth | 56 mm |
| Height | 8.5 mm |
| Weight | 40 g |
Packaging content
| Specification | Value |
|---|---|
| Quantity per pack | 1 pc(s) |
Packaging data
| Specification | Value |
|---|---|
| Package width | 117 mm |
| Package depth | 105 mm |
| Package height | 23 mm |
| Package weight | 100 g |
| Package type | Window box |
Reviews
No reviews of Lanview MO-MGB-SX network transceiver module Fiber optic 1000 Mbit/s 850 nm yet. Have you used it? Tell others what you think.
Write a reviewCompare Lanview MO-MGB-SX network transceiver module Fiber optic 1000 Mbit/s 850 nm
All network transceiver module comparisons- Lanview MO-MGB-SX network transceiver module Fiber optic 1000 Mbit/s 850 nm vsLanview MO-FG-TRAN-SX network transceiver module Fiber optic 1000 Mbit/s 850 nmCompare specs
- Lanview MO-MGB-SX network transceiver module Fiber optic 1000 Mbit/s 850 nm vsLanview MO-AXM762 network transceiver module Fiber optic 10000 Mbit/s SFP+ 1310 nmCompare specs
- Lanview MO-MGB-SX network transceiver module Fiber optic 1000 Mbit/s 850 nm vsLanview MO-331-5311 network transceiver module Fiber optic 10000 Mbit/s SFP+ 850 nmCompare specs
- Lanview MO-MGB-SX network transceiver module Fiber optic 1000 Mbit/s 850 nm vsLanview MO-SFP-1GE-LX network transceiver module Fiber optic 1000 Mbit/s 1310 nmCompare specs
- Lanview MO-MGB-SX network transceiver module Fiber optic 1000 Mbit/s 850 nm vsHP QSFP-40G-SR4-C network transceiver module Fiber optic 40000 Mbit/s 850 nmCompare specs

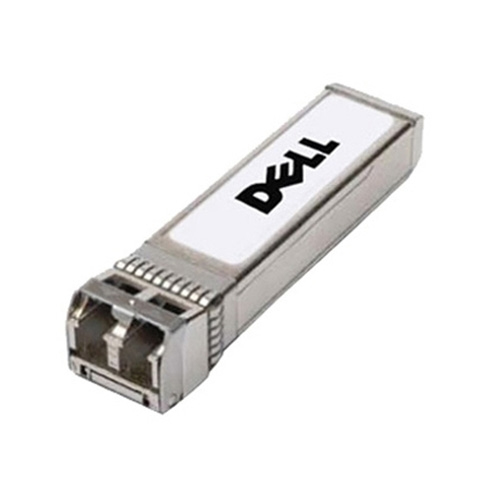

- Lanview MO-MGB-SX network transceiver module Fiber optic 1000 Mbit/s 850 nm vsDell 407-BBOL network transceiver module Fiber optic 10000 Mbit/s SFP+ 1310 nmCompare specs

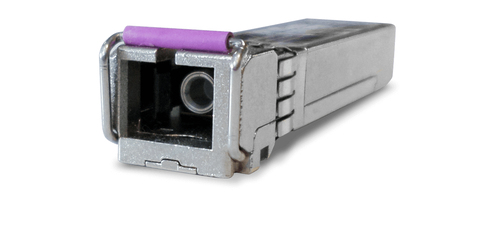

- Lanview MO-MGB-SX network transceiver module Fiber optic 1000 Mbit/s 850 nm vsAllied Telesis AT-SPBD20-14/I network transceiver module Fiber optic 1000 Mbit/s SFPCompare specs
