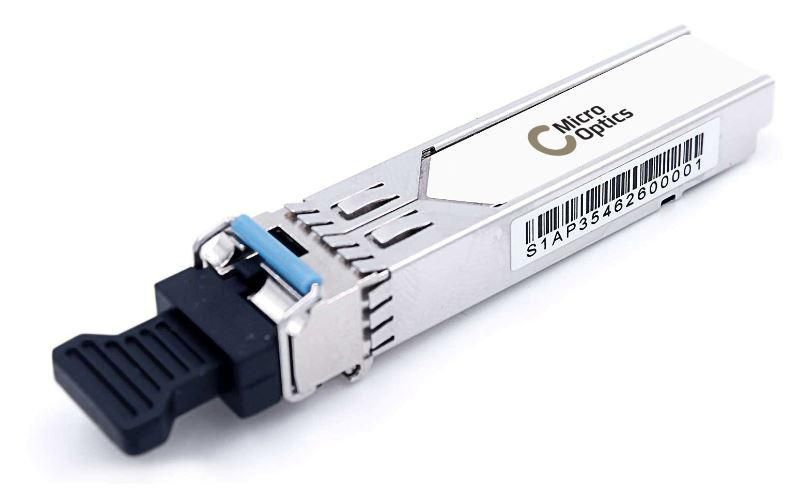

MO-MGB-LA43-10 network transceiver module Fiber optic 1000 Mbit/s SFP
Model MO-MGB-LA43-10EAN 5706998630063
26 specifications
- Speed1000 Mbit/s
- Weight30 g
- SFP transceiver typeFiber optic
- Plug and PlayYes
- Operating temperature (T-T)-45 - 75 °C
- Width16 mm
Overview
- Speed
- 1000 Mbit/s
- Weight
- 30 g
- SFP transceiver type
- Fiber optic
- Plug and Play
- Yes
- Operating temperature (T-T)
- -45 - 75 °C
- Width
- 16 mm
- Brand
- Lanview
- Category
- Network Transceiver Module
- Model
- MO-MGB-LA43-10
- Part number
- MO-MGB-LA43-10
- EAN / UPC
- 5706998630063
- Also known as
- Lanview MO-MGB-LA43-10 network transceiver module Fiber optic 1000 Mbit/s SFP
Specifications
26 specifications in 7 groups
Performance
| Specification | Value |
|---|---|
| SFP transceiver type | Fiber optic |
| Maximum data transfer rate | 1000 Mbit/s |
| Interface type | SFP |
| Single-mode fiber (SMF) supported | Yes |
| Multi-mode fiber (MMF) supported | No |
| SFP transceiver standard | BX-U |
| Tx wavelength (min) | 1310 nm |
| Rx wavelength (min) | 1490 nm |
| Duplex system | Full |
| Digital Diagnostics Monitoring (DDM) | Yes |
| Fiber ports quantity | 1 |
Features
| Specification | Value |
|---|---|
| Plug and Play | Yes |
| Easy to install | Yes |
| Brand compatibility | Planet |
| Compatible products | Planet MGB-LA43-10 |
Certificates
| Specification | Value |
|---|---|
| Certification | MSA |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | -45 - 75 °C |
| Storage temperature (T-T) | -40 - 85 °C |
| Storage relative humidity (H-H) | 10 - 85% |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 16 mm |
| Depth | 56 mm |
| Height | 10 mm |
| Weight | 30 g |
Packaging content
| Specification | Value |
|---|---|
| Quantity per pack | 1 pc(s) |
Packaging data
| Specification | Value |
|---|---|
| Package weight | 40 g |
| Package type | Window box |
