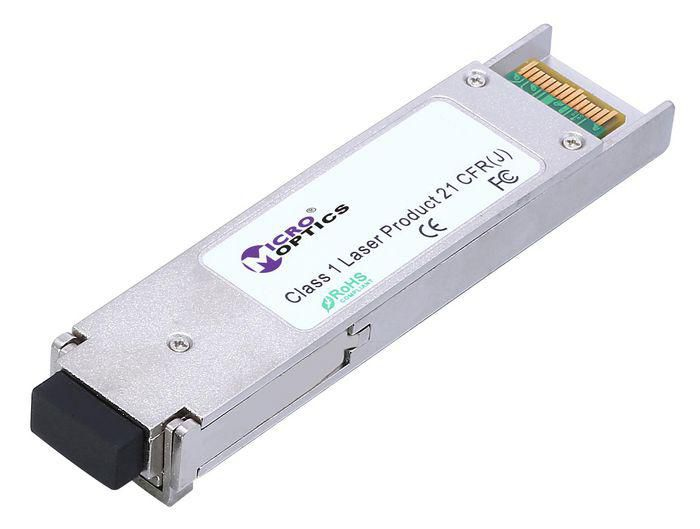

MO-JUN-XFP-10G-Z-OC192-LR2 network transceiver module Fiber optic 10000 Mbit/s 1550 nm
Model MO-JUN-XFP-10G-Z-OC192-LR2EAN 5715063122778
30 specifications
- Speed10000 Mbit/s
- TypeXFP
- Weight30 g
- SFP transceiver typeFiber optic
- Operating temperature (T-T)0 - 70 °C
- Width14 mm
Overview
- Speed
- 10000 Mbit/s
- Type
- XFP
- Weight
- 30 g
- SFP transceiver type
- Fiber optic
- Operating temperature (T-T)
- 0 - 70 °C
- Width
- 14 mm
- Brand
- Lanview
- Category
- Network Transceiver Module
- Model
- MO-JUN-XFP-10G-Z-OC192-LR2
- Part number
- MO-JUN-XFP-10G-Z-OC192-LR2
- EAN / UPC
- 5715063122778
- Also known as
- Lanview MO-JUN-XFP-10G-Z-OC192-LR2 network transceiver module Fiber optic 10000 Mbit/s 1550 nm
Specifications
30 specifications in 7 groups
Performance
| Specification | Value |
|---|---|
| SFP transceiver type | Fiber optic |
| Maximum data transfer rate | 10000 Mbit/s |
| Interface type | XFP |
| Single-mode fiber (SMF) supported | Yes |
| Multi-mode fiber (MMF) supported | No |
| Fiber optic connector | XFP |
| Fiber cable diameters supported (core/cladding) | 9/125 µm |
| SFP transceiver standard | LR2 |
| Maximum transfer distance | 80000 m |
| Wavelength | 1550 nm |
| Auto MDI/MDI-X | Yes |
| Digital Diagnostics Monitoring (DDM) | Yes |
| Fiber ports quantity | 1 |
Features
| Specification | Value |
|---|---|
| Form factor | XFP |
| Plug and Play | Yes |
| Hot-Plug support | Yes |
| Easy to install | Yes |
| Brand compatibility | Juniper |
| Compatible products | Juniper XFP-10G-Z-OC192-LR2 |
Certificates
| Specification | Value |
|---|---|
| Certification | MSA |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 70 °C |
| Storage temperature (T-T) | -40 - 85 °C |
| Operating relative humidity (H-H) | 10 - 80% |
| Storage relative humidity (H-H) | 10 - 85% |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 14 mm |
| Depth | 54 mm |
| Height | 8.5 mm |
| Weight | 30 g |
Packaging content
| Specification | Value |
|---|---|
| Quantity per pack | 1 pc(s) |
Packaging data
| Specification | Value |
|---|---|
| Package weight | 40 g |
