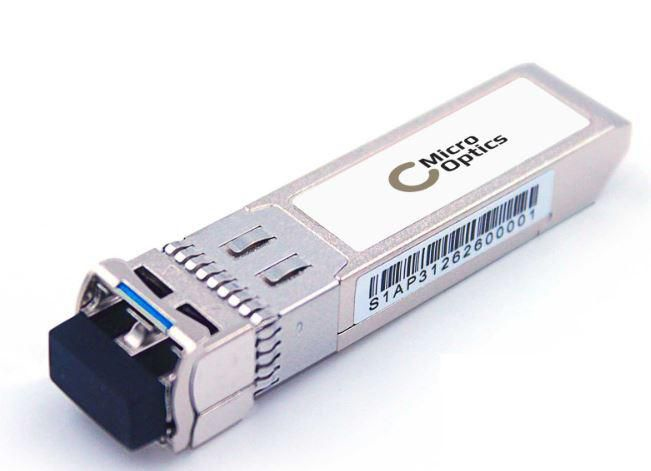

MO-JNP-25G-LR network transceiver module Fiber optic 25000 Mbit/s 1310 nm
Model MO-JNP-25G-LREAN 5715328111158
27 specifications
- Speed25000 Mbit/s
- TypeSFP28
- Weight30 g
- SFP transceiver typeFiber optic
- Operating temperature (T-T)0 - 70 °C
- Width61 mm
Overview
- Speed
- 25000 Mbit/s
- Type
- SFP28
- Weight
- 30 g
- SFP transceiver type
- Fiber optic
- Operating temperature (T-T)
- 0 - 70 °C
- Width
- 61 mm
- Brand
- Lanview
- Category
- Network Transceiver Module
- Model
- MO-JNP-25G-LR
- Part number
- MO-JNP-25G-LR
- EAN / UPC
- 5715328111158
- Also known as
- Lanview MO-JNP-25G-LR network transceiver module Fiber optic 25000 Mbit/s 1310 nm
Specifications
27 specifications in 6 groups
Performance
| Specification | Value |
|---|---|
| SFP transceiver type | Fiber optic |
| Maximum data transfer rate | 25000 Mbit/s |
| Single-mode fiber (SMF) supported | Yes |
| Fiber optic connector | SFP28 |
| SFP transceiver standard | LR |
| Maximum transfer distance | 10000 m |
| Maximum transfer distance (Single-mode) | 10000 m |
| Wavelength | 1310 nm |
| Ethernet interface type | 25 Gigabit Ethernet |
| Fiber ethernet cabling technology | 25GBASE |
| Duplex system | Full |
Features
| Specification | Value |
|---|---|
| Form factor | SFP28 |
| Plug and Play | Yes |
| Hot-Plug support | Yes |
| Easy to install | Yes |
| Brand compatibility | HP |
| Compatible products | Juniper JNP-25G-LR |
Certificates
| Specification | Value |
|---|---|
| Certification | MSA |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 70 °C |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 61 mm |
| Depth | 80 mm |
| Height | 20 mm |
| Weight | 30 g |
Packaging data
| Specification | Value |
|---|---|
| Package width | 61 mm |
| Package depth | 80 mm |
| Package height | 20 mm |
| Package weight | 40 g |
