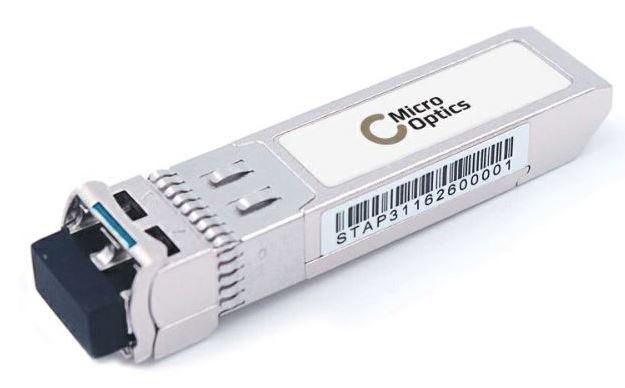

MO-JL783A network transceiver module 10000 Mbit/s
Model MO-JL783AEAN 5715063052792
23 specifications
- Speed10000 Mbit/s
- TypeSFP+
- Weight10 g
- Operating temperature (T-T)0 - 70 °C
- Width107 mm
Overview
- Speed
- 10000 Mbit/s
- Type
- SFP+
- Weight
- 10 g
- Operating temperature (T-T)
- 0 - 70 °C
- Width
- 107 mm
- Brand
- Lanview
- Category
- Network Transceiver Module
- Model
- MO-JL783A
- Part number
- MO-JL783A
- EAN / UPC
- 5715063052792
- Also known as
- Lanview MO-JL783A network transceiver module 10000 Mbit/s
Specifications
23 specifications in 7 groups
Performance
| Specification | Value |
|---|---|
| Maximum data transfer rate | 10000 Mbit/s |
| Single-mode fiber (SMF) supported | Yes |
| Fiber optic connector | SFP+ |
| SFP transceiver standard | LR |
| Maximum transfer distance | 10000 m |
| Ethernet interface type | 10 Gigabit Ethernet |
| Duplex system | Full |
Features
| Specification | Value |
|---|---|
| Form factor | SFP+ |
| Plug and Play | Yes |
| Hot-Plug support | Yes |
| Easy to install | Yes |
| Compatible products | HPE Aruba JL783A |
Certificates
| Specification | Value |
|---|---|
| Certification | MSA |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 70 °C |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 107 mm |
| Depth | 68 mm |
| Height | 23 mm |
| Weight | 10 g |
Packaging content
| Specification | Value |
|---|---|
| Quantity per pack | 1 pc(s) |
Packaging data
| Specification | Value |
|---|---|
| Package width | 107 mm |
| Package depth | 68 mm |
| Package height | 23 mm |
| Package weight | 20 g |
