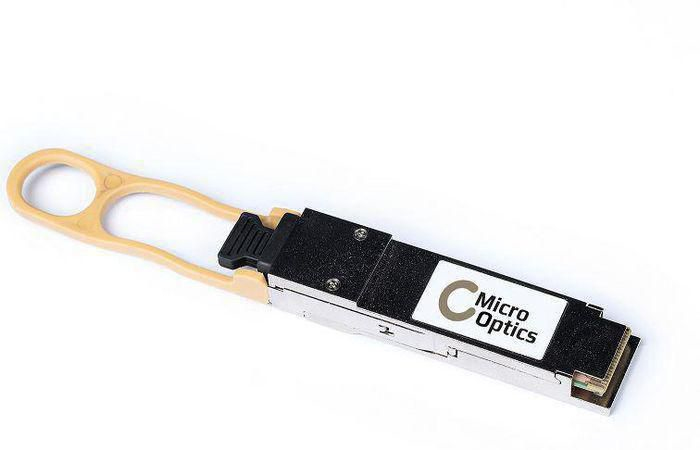

MO-JL309A network transceiver module Fiber optic 100000 Mbit/s 850 nm
Model MO-JL309AEAN 5715063225974
27 specifications
- Speed100000 Mbit/s
- TypeQSFP28
- Weight100 g
- SFP transceiver typeFiber optic
- Operating temperature (T-T)0 - 70 °C
- Width60 mm
Overview
- Speed
- 100000 Mbit/s
- Type
- QSFP28
- Weight
- 100 g
- SFP transceiver type
- Fiber optic
- Operating temperature (T-T)
- 0 - 70 °C
- Width
- 60 mm
- Brand
- Lanview
- Category
- Network Transceiver Module
- Model
- MO-JL309A
- Part number
- MO-JL309A
- EAN / UPC
- 5715063225974
- Also known as
- Lanview MO-JL309A network transceiver module Fiber optic 100000 Mbit/s 850 nm
Specifications
27 specifications in 6 groups
Performance
| Specification | Value |
|---|---|
| SFP transceiver type | Fiber optic |
| Maximum data transfer rate | 100000 Mbit/s |
| Single-mode fiber (SMF) supported | No |
| Multi-mode fiber (MMF) supported | Yes |
| Fiber optic connector | QSFP28 |
| SFP transceiver standard | SR4 |
| Wavelength | 850 nm |
| Ethernet interface type | 100 Gigabit Ethernet |
| Duplex system | Full |
| Fiber ports quantity | 1 |
Features
| Specification | Value |
|---|---|
| Form factor | QSFP28 |
| Plug and Play | Yes |
| Easy to install | Yes |
| Brand compatibility | HPE |
| Compatible products | HPE JL309A |
Certificates
| Specification | Value |
|---|---|
| Certification | MSA |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 70 °C |
| Storage relative humidity (H-H) | 10 - 85% |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 60 mm |
| Depth | 100 mm |
| Height | 30 mm |
| Weight | 100 g |
Packaging data
| Specification | Value |
|---|---|
| Package width | 60 mm |
| Package depth | 100 mm |
| Package height | 30 mm |
| Package weight | 200 g |
| Package type | Window box |
