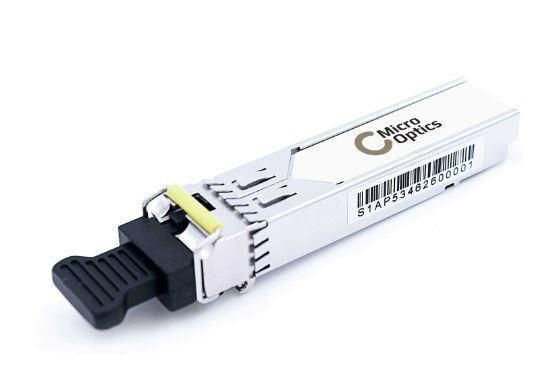

MO-J9142B network transceiver module Fiber optic
Model MO-J9142BEAN 5715063040546
23 specifications
- TypeSFP
- Weight30 g
- SFP transceiver typeFiber optic
- Operating temperature (T-T)0 - 70 °C
- Width80 mm
Overview
- Type
- SFP
- Weight
- 30 g
- SFP transceiver type
- Fiber optic
- Operating temperature (T-T)
- 0 - 70 °C
- Width
- 80 mm
- Brand
- Lanview
- Category
- Network Transceiver Module
- Model
- MO-J9142B
- Part number
- MO-J9142B
- EAN / UPC
- 5715063040546
- Also known as
- Lanview MO-J9142B network transceiver module Fiber optic
Specifications
23 specifications in 6 groups
Performance
| Specification | Value |
|---|---|
| SFP transceiver type | Fiber optic |
| Single-mode fiber (SMF) supported | Yes |
| Fiber optic connector | LC |
| SFP transceiver standard | BX-D |
| Tx wavelength (max) | 1490 nm |
| Rx wavelength (max) | 1310 nm |
| Duplex system | Half |
Features
| Specification | Value |
|---|---|
| Form factor | SFP |
| Plug and Play | Yes |
| Hot-Plug support | Yes |
| Easy to install | Yes |
| Brand compatibility | Aruba Networks |
| Compatible products | HPE ProCurve J9142B Compatible |
Certificates
| Specification | Value |
|---|---|
| Certification | MSA |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 70 °C |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 80 mm |
| Depth | 80 mm |
| Height | 30 mm |
| Weight | 30 g |
Packaging data
| Specification | Value |
|---|---|
| Package width | 80 mm |
| Package depth | 80 mm |
| Package height | 30 mm |
| Package weight | 40 g |
