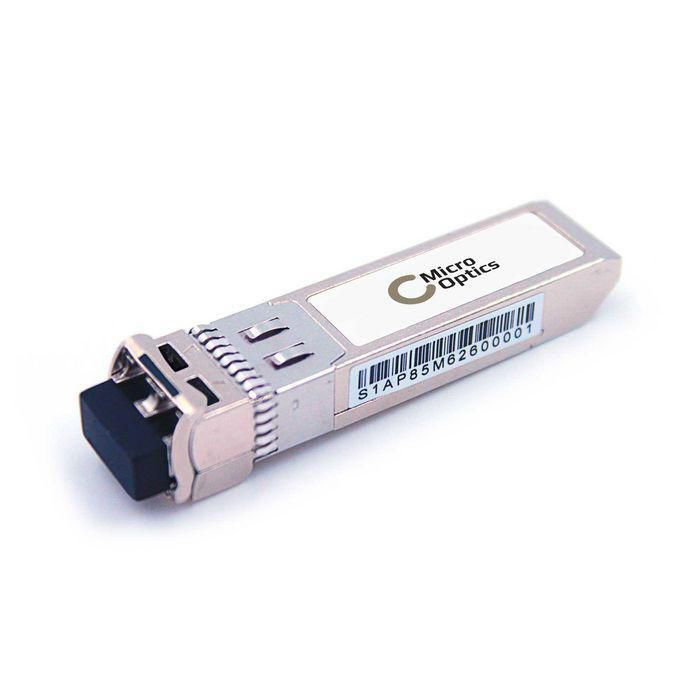

MO-E25GSFP28SR network transceiver module Fiber optic 25000 Mbit/s LC 850 nm
Model MO-E25GSFP28SREAN 5715063182253
32 specifications
- Speed25000 Mbit/s
- TypeSFP28
- Weight30 g
- SFP transceiver typeFiber optic
- Operating temperature (T-T)0 - 70 °C
- Width60 mm
Overview
- Speed
- 25000 Mbit/s
- Type
- SFP28
- Weight
- 30 g
- SFP transceiver type
- Fiber optic
- Operating temperature (T-T)
- 0 - 70 °C
- Width
- 60 mm
- Brand
- Lanview
- Category
- Network Transceiver Module
- Model
- MO-E25GSFP28SR
- Part number
- MO-E25GSFP28SR
- EAN / UPC
- 5715063182253
- Also known as
- Lanview MO-E25GSFP28SR network transceiver module Fiber optic 25000 Mbit/s LC 850 nm
Specifications
32 specifications in 6 groups
Performance
| Specification | Value |
|---|---|
| SFP transceiver type | Fiber optic |
| Maximum data transfer rate | 25000 Mbit/s |
| Interface type | LC |
| Single-mode fiber (SMF) supported | No |
| Multi-mode fiber (MMF) supported | Yes |
| Fiber optic connector | SFP28 |
| Fiber cable diameters supported (core/cladding) | 50/125 µm |
| SFP transceiver standard | SR |
| Maximum transfer distance | 100 m |
| Maximum transfer distance (Multi-mode) | 100 m |
| Wavelength | 850 nm |
| Ethernet interface type | 25 Gigabit Ethernet |
| Fiber ethernet cabling technology | 25GBASE |
| Duplex system | Full |
| Digital Diagnostics Monitoring (DDM) | Yes |
Features
| Specification | Value |
|---|---|
| Form factor | SFP28 |
| Plug and Play | Yes |
| Easy to install | Yes |
| Brand compatibility | Intel |
| Compatible products | Intel E25GSFP28SR |
Certificates
| Specification | Value |
|---|---|
| Certification | MSA |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 70 °C |
| Storage temperature (T-T) | -40 - 80 °C |
| Storage relative humidity (H-H) | 10 - 85% |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 60 mm |
| Depth | 100 mm |
| Height | 30 mm |
| Weight | 30 g |
Packaging data
| Specification | Value |
|---|---|
| Package width | 60 mm |
| Package depth | 100 mm |
| Package height | 30 mm |
| Package weight | 40 g |
