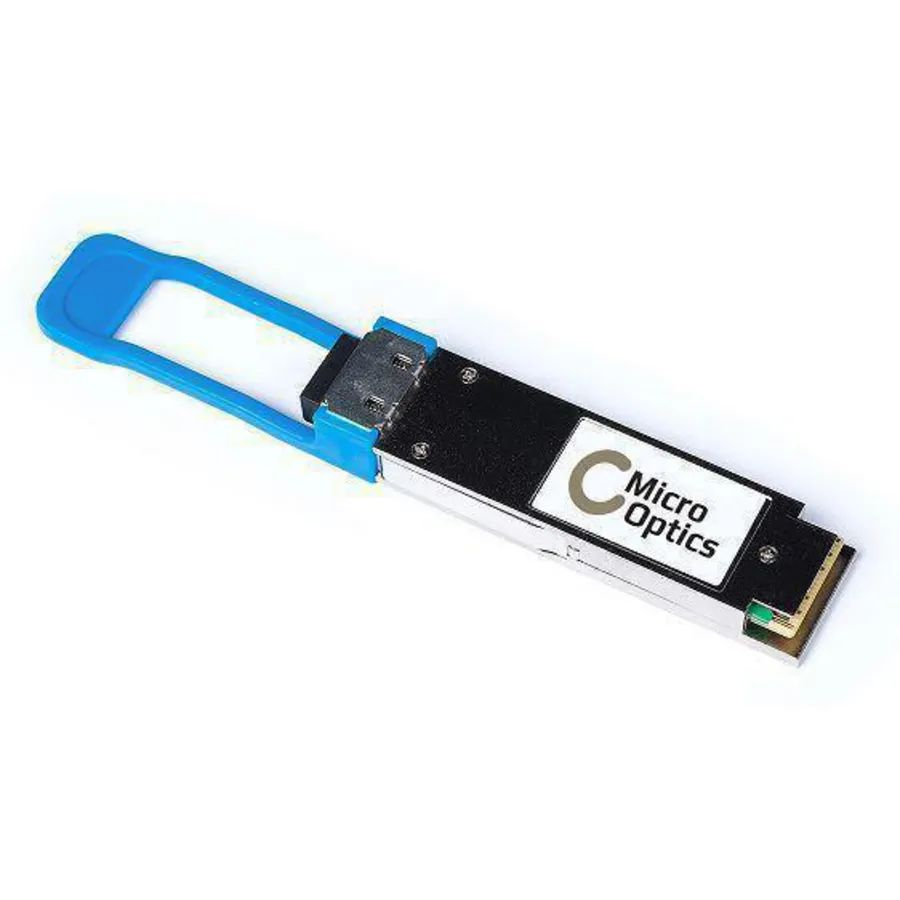

MO-CDM03JH232A network transceiver module Fiber optic 40000 Mbit/s QSFP+ 1310 nm
Model MO-CDM03JH232AEAN 5706998282927
25 specifications
- Speed40000 Mbit/s
- Weight10 g
- ColourSilver
- SFP transceiver typeFiber optic
- Operating temperature (T-T)-45 - 75 °C
Overview
- Speed
- 40000 Mbit/s
- Weight
- 10 g
- Colour
- Silver
- SFP transceiver type
- Fiber optic
- Operating temperature (T-T)
- -45 - 75 °C
- Brand
- Lanview
- Category
- Network Transceiver Module
- Model
- MO-CDM03JH232A
- Part number
- MO-CDM03JH232A
- EAN / UPC
- 5706998282927
- Also known as
- Lanview MO-CDM03JH232A network transceiver module Fiber optic 40000 Mbit/s QSFP+ 1310 nm
Specifications
25 specifications in 7 groups
Performance
| Specification | Value |
|---|---|
| SFP transceiver type | Fiber optic |
| Maximum data transfer rate | 40000 Mbit/s |
| Interface type | QSFP+ |
| Single-mode fiber (SMF) supported | Yes |
| Multi-mode fiber (MMF) supported | No |
| Fiber optic connector | LC |
| SFP transceiver standard | LR4 |
| Maximum transfer distance | 10000 m |
| Wavelength | 1310 nm |
| Duplex system | Full |
| Digital Diagnostics Monitoring (DDM) | Yes |
| Fiber ports quantity | 1 |
Features
| Specification | Value |
|---|---|
| Product colour | Silver |
| Plug and Play | Yes |
| Easy to install | Yes |
| Brand compatibility | Aruba Networks |
| Compatible products | HP Aruba JH232A |
Certificates
| Specification | Value |
|---|---|
| Certification | MSA |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | -45 - 75 °C |
| Storage temperature (T-T) | -40 - 85 °C |
| Storage relative humidity (H-H) | 10 - 85% |
Weight & dimensions
| Specification | Value |
|---|---|
| Weight | 10 g |
Packaging content
| Specification | Value |
|---|---|
| Quantity per pack | 1 pc(s) |
Packaging data
| Specification | Value |
|---|---|
| Package weight | 20 g |
| Package type | Window box |
