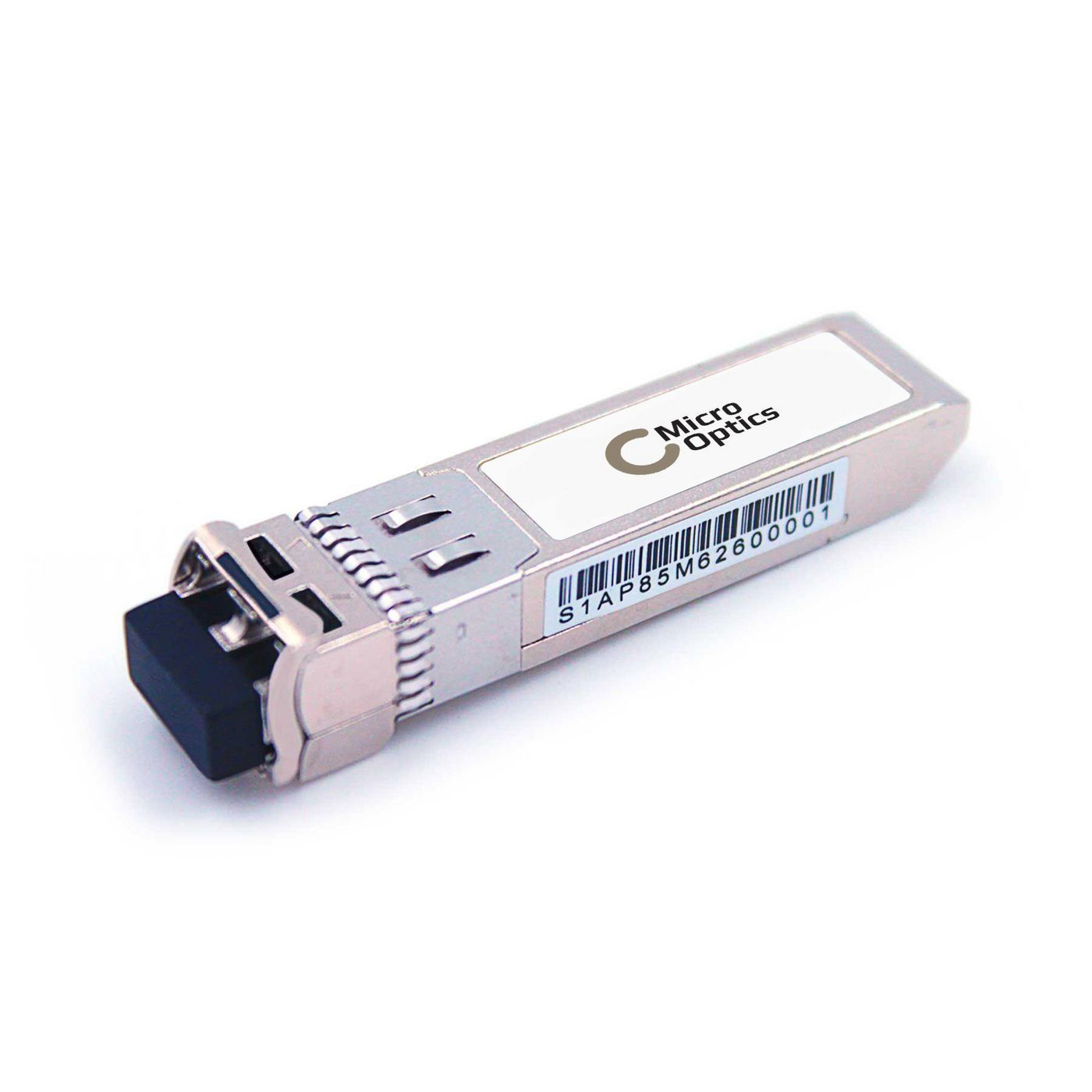

MO-CDLB456096-001 network transceiver module Fiber optic 10000 Mbit/s SFP+ 850 nm
Model MO-CDLB456096-001EAN 5704174320760
22 specifications
- Speed10000 Mbit/s
- Weight30 g
- SFP transceiver typeFiber optic
- Plug and PlayYes
- Minimum operating temperature-45 °C
- Width107 mm
Overview
- Speed
- 10000 Mbit/s
- Weight
- 30 g
- SFP transceiver type
- Fiber optic
- Plug and Play
- Yes
- Minimum operating temperature
- -45 °C
- Width
- 107 mm
- Brand
- Lanview
- Category
- Network Transceiver Module
- Model
- MO-CDLB456096-001
- Part number
- MO-CDLB456096-001
- EAN / UPC
- 5704174320760
- Also known as
- Lanview MO-CDLB456096-001 network transceiver module Fiber optic 10000 Mbit/s SFP+ 850 nm
Specifications
22 specifications in 6 groups
Performance
| Specification | Value |
|---|---|
| SFP transceiver type | Fiber optic |
| Maximum data transfer rate | 10000 Mbit/s |
| Interface type | SFP+ |
| Single-mode fiber (SMF) supported | No |
| Multi-mode fiber (MMF) supported | Yes |
| Maximum transfer distance | 300 m |
| Wavelength | 850 nm |
Features
| Specification | Value |
|---|---|
| Plug and Play | Yes |
| Easy to install | Yes |
| Brand compatibility | HP |
| Compatible products | HPE Blade system 456096-001 |
Certificates
| Specification | Value |
|---|---|
| Certification | MSA |
Operational conditions
| Specification | Value |
|---|---|
| Minimum operating temperature | -45 °C |
| Maximum operating temperature | 75 °C |
| Operating temperature (T-T) | -45 - 75 °C |
| Storage temperature (T-T) | -40 - 85 °C |
| Storage relative humidity (H-H) | 10 - 85% |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 107 mm |
| Depth | 66 mm |
| Height | 23 mm |
| Weight | 30 g |
Logistics data
| Specification | Value |
|---|---|
| Country of origin | China |
