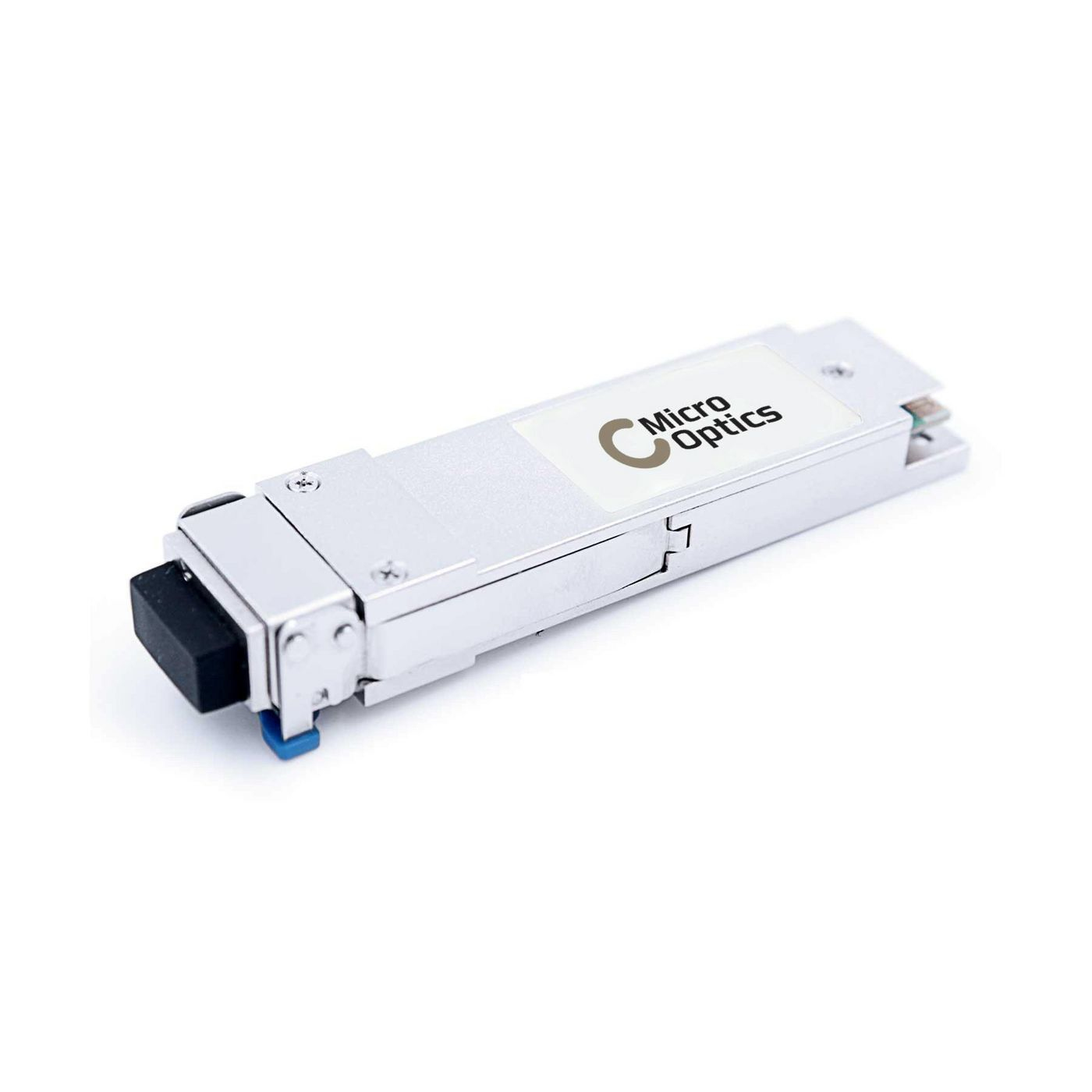

MO-C-QSFP40GLR4 network transceiver module Fiber optic 40000 Mbit/s QSFP+ 1310 nm
Model MO-C-QSFP40GLR4EAN 5706998742186
20 specifications
- Speed40000 Mbit/s
- Weight40 g
- SFP transceiver typeFiber optic
- Plug and PlayYes
- Minimum operating temperature-45 °C
Overview
- Speed
- 40000 Mbit/s
- Weight
- 40 g
- SFP transceiver type
- Fiber optic
- Plug and Play
- Yes
- Minimum operating temperature
- -45 °C
- Brand
- Lanview
- Category
- Network Transceiver Module
- Model
- MO-C-QSFP40GLR4
- Part number
- MO-C-QSFP40GLR4
- EAN / UPC
- 5706998742186
- Also known as
- Lanview MO-C-QSFP40GLR4 network transceiver module Fiber optic 40000 Mbit/s QSFP+ 1310 nm
Specifications
20 specifications in 6 groups
Performance
| Specification | Value |
|---|---|
| SFP transceiver type | Fiber optic |
| Maximum data transfer rate | 40000 Mbit/s |
| Interface type | QSFP+ |
| Single-mode fiber (SMF) supported | Yes |
| Multi-mode fiber (MMF) supported | No |
| Maximum transfer distance | 10000 m |
| Wavelength | 1310 nm |
| Digital Diagnostics Monitoring (DDM) | Yes |
Features
| Specification | Value |
|---|---|
| Plug and Play | Yes |
| Easy to install | Yes |
| Brand compatibility | Cisco |
| Compatible products | Cisco QSFP-LR4-40G |
Certificates
| Specification | Value |
|---|---|
| Certification | MSA |
Operational conditions
| Specification | Value |
|---|---|
| Minimum operating temperature | -45 °C |
| Maximum operating temperature | 75 °C |
| Operating temperature (T-T) | -45 - 75 °C |
| Storage temperature (T-T) | -40 - 85 °C |
| Storage relative humidity (H-H) | 10 - 85% |
Weight & dimensions
| Specification | Value |
|---|---|
| Weight | 40 g |
Logistics data
| Specification | Value |
|---|---|
| Country of origin | China |
