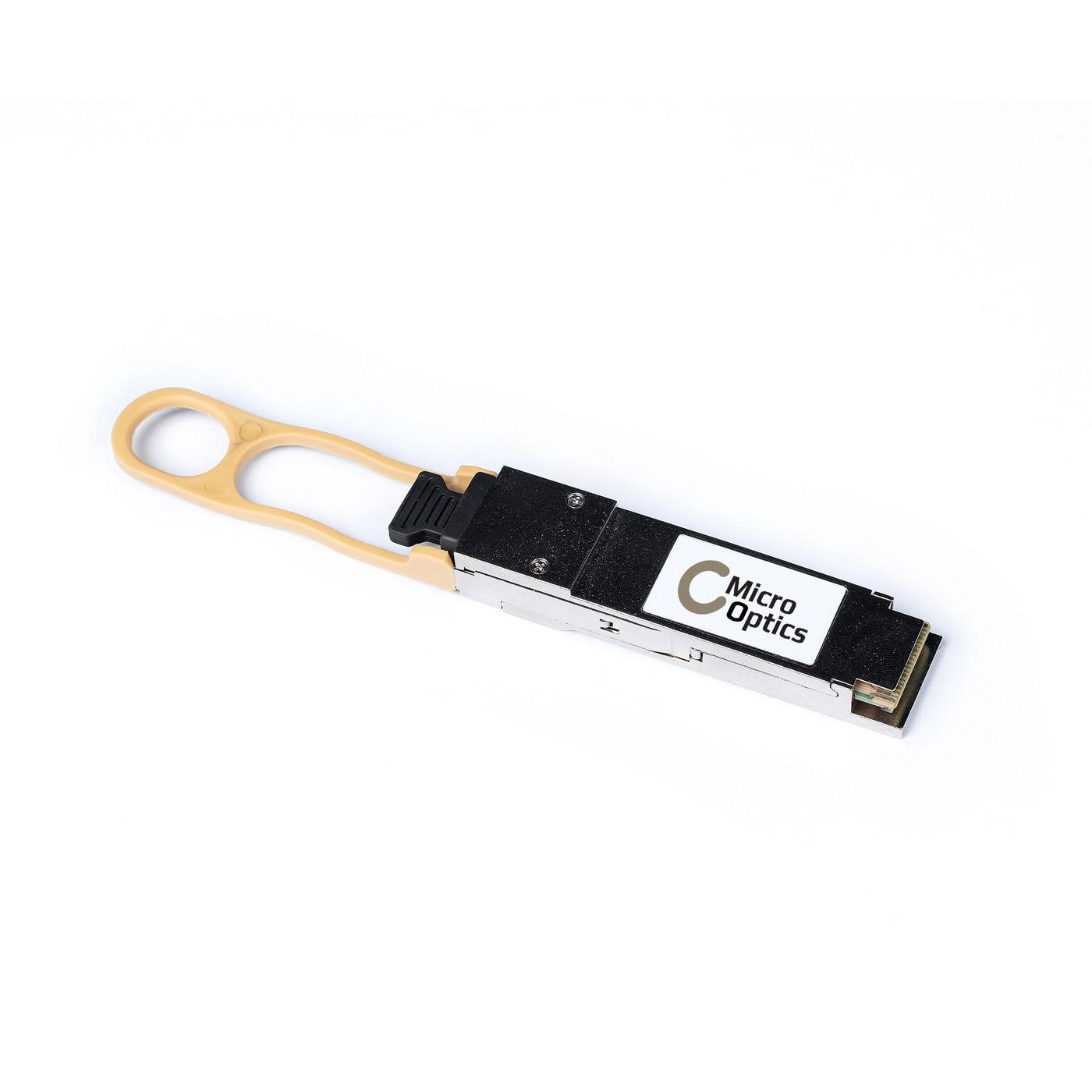

MO-407-BBYO network transceiver module Fiber optic 10000 Mbit/s QSFP28
Model MO-407-BBYOEAN 5704174269595
25 specifications
- Speed10000 Mbit/s
- Weight40 g
- SFP transceiver typeFiber optic
- Plug and PlayYes
- Operating temperature (T-T)-45 - 75 °C
- Width14 mm
Overview
- Speed
- 10000 Mbit/s
- Weight
- 40 g
- SFP transceiver type
- Fiber optic
- Plug and Play
- Yes
- Operating temperature (T-T)
- -45 - 75 °C
- Width
- 14 mm
- Brand
- Lanview
- Category
- Network Transceiver Module
- Model
- MO-407-BBYO
- Part number
- MO-407-BBYO
- EAN / UPC
- 5704174269595
- Also known as
- Lanview MO-407-BBYO network transceiver module Fiber optic 10000 Mbit/s QSFP28
Specifications
25 specifications in 6 groups
Performance
| Specification | Value |
|---|---|
| SFP transceiver type | Fiber optic |
| Maximum data transfer rate | 10000 Mbit/s |
| Interface type | QSFP28 |
| Single-mode fiber (SMF) supported | No |
| Multi-mode fiber (MMF) supported | Yes |
| Fiber optic connector | MPO |
| Maximum transfer distance | 200 m |
| Duplex system | Full |
| Digital Diagnostics Monitoring (DDM) | Yes |
| Fiber ports quantity | 1 |
Features
| Specification | Value |
|---|---|
| Plug and Play | Yes |
| Easy to install | Yes |
| Brand compatibility | Dell |
| Compatible products | 407-BBYO |
Certificates
| Specification | Value |
|---|---|
| Certification | MSA |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | -45 - 75 °C |
| Storage temperature (T-T) | -40 - 85 °C |
| Operating relative humidity (H-H) | 10 - 85% |
| Storage relative humidity (H-H) | 10 - 85% |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 14 mm |
| Depth | 56 mm |
| Height | 10 mm |
| Weight | 40 g |
Packaging data
| Specification | Value |
|---|---|
| Package weight | 50 g |
| Package type | Window box |
