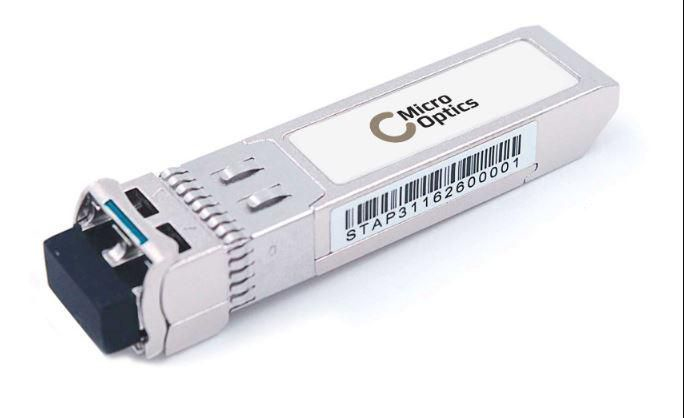

MO-407-BBWK network transceiver module Fiber optic 25000 Mbit/s SFP28 850 nm
Model MO-407-BBWKEAN 5704174970163
27 specifications
- Speed25000 Mbit/s
- Weight30 g
- SFP transceiver typeFiber optic
- Plug and PlayYes
- Storage temperature (T-T)-40 - 85 °C
- Width80 mm
Overview
- Speed
- 25000 Mbit/s
- Weight
- 30 g
- SFP transceiver type
- Fiber optic
- Plug and Play
- Yes
- Storage temperature (T-T)
- -40 - 85 °C
- Width
- 80 mm
- Brand
- Lanview
- Category
- Network Transceiver Module
- Model
- MO-407-BBWK
- Part number
- MO-407-BBWK
- EAN / UPC
- 5704174970163
- Also known as
- Lanview MO-407-BBWK network transceiver module Fiber optic 25000 Mbit/s SFP28 850 nm
Specifications
27 specifications in 7 groups
Performance
| Specification | Value |
|---|---|
| SFP transceiver type | Fiber optic |
| Maximum data transfer rate | 25000 Mbit/s |
| Interface type | SFP28 |
| Single-mode fiber (SMF) supported | No |
| Multi-mode fiber (MMF) supported | Yes |
| Fiber optic connector | LC |
| Wavelength | 850 nm |
| Duplex system | Full |
| Digital Diagnostics Monitoring (DDM) | Yes |
| Fiber ports quantity | 1 |
Features
| Specification | Value |
|---|---|
| Plug and Play | Yes |
| Easy to install | Yes |
| Brand compatibility | Dell |
| Compatible products | Dell 407-BBWK |
Certificates
| Specification | Value |
|---|---|
| Certification | MSA |
Operational conditions
| Specification | Value |
|---|---|
| Storage temperature (T-T) | -40 - 85 °C |
| Storage relative humidity (H-H) | 10 - 85% |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 80 mm |
| Depth | 120 mm |
| Height | 40 mm |
| Weight | 30 g |
Packaging content
| Specification | Value |
|---|---|
| Quantity per pack | 1 pc(s) |
Packaging data
| Specification | Value |
|---|---|
| Package width | 80 mm |
| Package depth | 120 mm |
| Package height | 40 mm |
| Package weight | 40 g |
| Package type | Window box |
