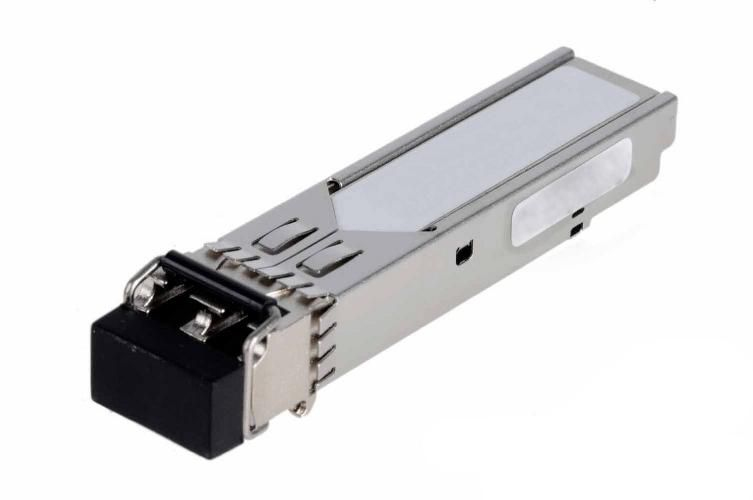

Lanview MO-3C-S31121-3CL10 network transceiver module Fiber optic 1000 Mbit/s SFP 1310 nm

MO-3C-S31121-3CL10 network transceiver module Fiber optic 1000 Mbit/s SFP 1310 nm

Model MO-3C-S31121-3CL10EAN 5711045390715

31 specifications

Speed1000 Mbit/s
Weight30 g
SFP transceiver typeFiber optic
Plug and PlayYes
Operating temperature (T-T)0 - 70 °C
Width13.4 mm

See all specifications

Overview

Speed: 1000 Mbit/s
Weight: 30 g
SFP transceiver type: Fiber optic
Plug and Play: Yes
Operating temperature (T-T): 0 - 70 °C
Width: 13.4 mm

Brand: Lanview
Category: Network Transceiver Module
Model: MO-3C-S31121-3CL10
Part number: MO-3C-S31121-3CL10
EAN / UPC: 5711045390715
Also known as: Lanview MO-3C-S31121-3CL10 network transceiver module Fiber optic 1000 Mbit/s SFP 1310 nm

Specifications

31 specifications in 7 groups

Performance

Specification	Value
SFP transceiver type	Fiber optic
Maximum data transfer rate	1000 Mbit/s
Interface type	SFP
Single-mode fiber (SMF) supported	Yes
Multi-mode fiber (MMF) supported	No
Fiber optic connector	LC
Fiber cable diameters supported (core/cladding)	9/125 µm
SFP transceiver standard	LX
Maximum transfer distance	10000 m
Wavelength	1310 nm
Cabling technology	10/100/1000
Duplex system	Full
Auto MDI/MDI-X	Yes
Digital Diagnostics Monitoring (DDM)	Yes
Fiber ports quantity	1

Features

Specification	Value
Plug and Play	Yes
Hot-Plug support	Yes
Easy to install	Yes
Compatible products	3Com 3CSFP92

Certificates

Specification	Value
Certification	MSA

Operational conditions

Specification	Value
Operating temperature (T-T)	0 - 70 °C
Storage temperature (T-T)	-40 - 85 °C
Operating relative humidity (H-H)	10 - 80%
Storage relative humidity (H-H)	10 - 85%

Weight & dimensions

Specification	Value
Width	13.4 mm
Depth	56.5 mm
Height	8.5 mm
Weight	30 g

Packaging content

Specification	Value
Quantity per pack	1 pc(s)

Packaging data

Specification	Value
Package weight	40 g
Package type	Window box
