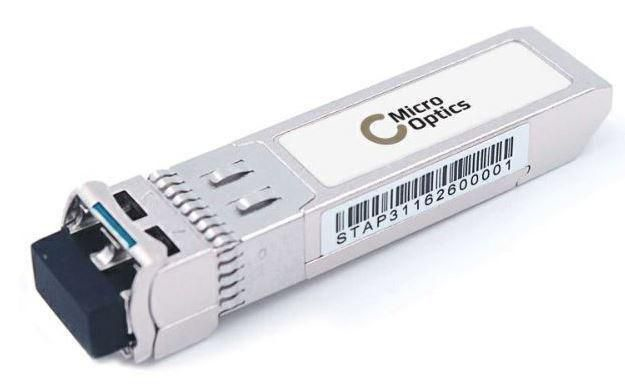

Lanview MO-10504 network transceiver module Fiber optic 25000 Mbit/s 1310 nm

MO-10504 network transceiver module Fiber optic 25000 Mbit/s 1310 nm

Model MO-10504EAN 5715063159002

32 specifications

Speed25000 Mbit/s
TypeSFP+
Weight30 g
SFP transceiver typeFiber optic
Operating temperature (T-T)0 - 70 °C
Width60 mm

See all specifications

Overview

Speed: 25000 Mbit/s
Type: SFP+
Weight: 30 g
SFP transceiver type: Fiber optic
Operating temperature (T-T): 0 - 70 °C
Width: 60 mm

Brand: Lanview
Category: Network Transceiver Module
Model: MO-10504
Part number: MO-10504
EAN / UPC: 5715063159002
Also known as: Lanview MO-10504 network transceiver module Fiber optic 25000 Mbit/s 1310 nm

Specifications

32 specifications in 7 groups

Performance

Specification	Value
SFP transceiver type	Fiber optic
Maximum data transfer rate	25000 Mbit/s
Single-mode fiber (SMF) supported	Yes
Multi-mode fiber (MMF) supported	No
Fiber optic connector	LC
Fiber cable diameters supported (core/cladding)	9/125 µm
SFP transceiver standard	LR
Maximum transfer distance	10000 m
Wavelength	1310 nm
Ethernet interface type	25 Gigabit Ethernet
Fiber ethernet cabling technology	25GBASE
Duplex system	Full
Digital Diagnostics Monitoring (DDM)	Yes

Features

Specification	Value
Form factor	SFP+
Plug and Play	Yes
Easy to install	Yes
Brand compatibility	Extreme Networks
Compatible products	Extreme networks 25G-SFP28-LR

Certificates

Specification	Value
Certification	MSA

Operational conditions

Specification	Value
Operating temperature (T-T)	0 - 70 °C
Storage temperature (T-T)	-40 - 85 °C
Operating relative humidity (H-H)	10 - 80%
Storage relative humidity (H-H)	10 - 85%

Weight & dimensions

Specification	Value
Width	60 mm
Depth	100 mm
Height	30 mm
Weight	30 g

Packaging content

Specification	Value
Quantity per pack	1 pc(s)

Packaging data

Specification	Value
Package width	60 mm
Package depth	100 mm
Package height	30 mm
Package weight	40 g
