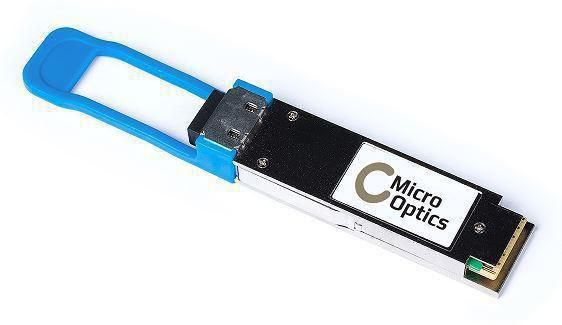

MO-10404 network transceiver module Fiber optic 100000 Mbit/s
Model MO-10404EAN 5715063159088
25 specifications
- Speed100000 Mbit/s
- TypeQSFP28
- Weight30 g
- SFP transceiver typeFiber optic
- Operating temperature (T-T)0 - 70 °C
- Width60 mm
Overview
- Speed
- 100000 Mbit/s
- Type
- QSFP28
- Weight
- 30 g
- SFP transceiver type
- Fiber optic
- Operating temperature (T-T)
- 0 - 70 °C
- Width
- 60 mm
- Brand
- Lanview
- Category
- Network Transceiver Module
- Model
- MO-10404
- Part number
- MO-10404
- EAN / UPC
- 5715063159088
- Also known as
- Lanview MO-10404 network transceiver module Fiber optic 100000 Mbit/s
Specifications
25 specifications in 6 groups
Performance
| Specification | Value |
|---|---|
| SFP transceiver type | Fiber optic |
| Maximum data transfer rate | 100000 Mbit/s |
| Single-mode fiber (SMF) supported | Yes |
| Multi-mode fiber (MMF) supported | No |
| Fiber optic connector | QSFP28 |
| SFP transceiver standard | CWDM4 |
| Maximum transfer distance | 2000 m |
| Ethernet interface type | 100 Gigabit Ethernet |
| Duplex system | Full |
Features
| Specification | Value |
|---|---|
| Form factor | QSFP28 |
| Plug and Play | Yes |
| Hot-Plug support | Yes |
| Easy to install | Yes |
| Brand compatibility | Extreme Networks |
| Compatible products | Extreme networks 10404 |
Certificates
| Specification | Value |
|---|---|
| Certification | MSA |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 70 °C |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 60 mm |
| Depth | 100 mm |
| Height | 30 mm |
| Weight | 30 g |
Packaging data
| Specification | Value |
|---|---|
| Package width | 60 mm |
| Package depth | 100 mm |
| Package height | 30 mm |
| Package weight | 40 g |
