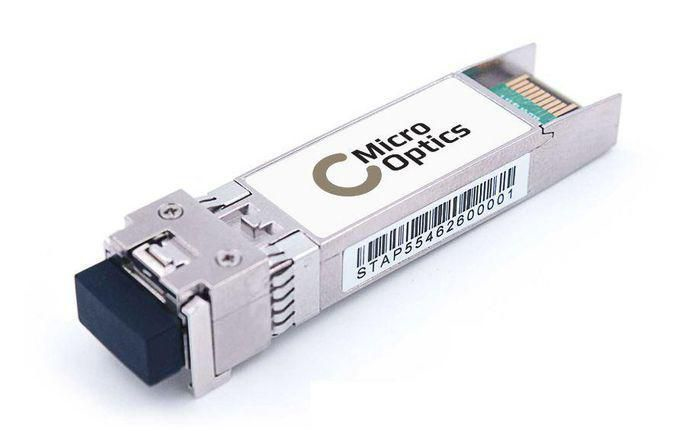

MO-10309 network transceiver module 10000 Mbit/s 1550 nm
Model MO-10309EAN 5715063157879
27 specifications
- Speed10000 Mbit/s
- TypeSFP+
- Weight20 g
- Operating temperature (T-T)0 - 70 °C
- Width60 mm
Overview
- Speed
- 10000 Mbit/s
- Type
- SFP+
- Weight
- 20 g
- Operating temperature (T-T)
- 0 - 70 °C
- Width
- 60 mm
- Brand
- Lanview
- Category
- Network Transceiver Module
- Model
- MO-10309
- Part number
- MO-10309
- EAN / UPC
- 5715063157879
- Also known as
- Lanview MO-10309 network transceiver module 10000 Mbit/s 1550 nm
Specifications
27 specifications in 6 groups
Performance
| Specification | Value |
|---|---|
| Maximum data transfer rate | 10000 Mbit/s |
| Single-mode fiber (SMF) supported | Yes |
| Multi-mode fiber (MMF) supported | No |
| Fiber optic connector | LC |
| SFP transceiver standard | ER |
| Maximum transfer distance | 40000 m |
| Wavelength | 1550 nm |
| Ethernet interface type | 10 Gigabit Ethernet |
| Cabling technology | 1000/10000 |
| Fiber ethernet cabling technology | 10GBASE |
| Duplex system | Full |
Features
| Specification | Value |
|---|---|
| Form factor | SFP+ |
| Plug and Play | Yes |
| Hot-Plug support | Yes |
| Easy to install | Yes |
| Brand compatibility | Extreme Networks |
| Compatible products | Extreme networks 10309 |
Certificates
| Specification | Value |
|---|---|
| Certification | MSA |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 70 °C |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 60 mm |
| Depth | 100 mm |
| Height | 30 mm |
| Weight | 20 g |
Packaging data
| Specification | Value |
|---|---|
| Package width | 60 mm |
| Package depth | 100 mm |
| Package height | 30 mm |
| Package weight | 30 g |
