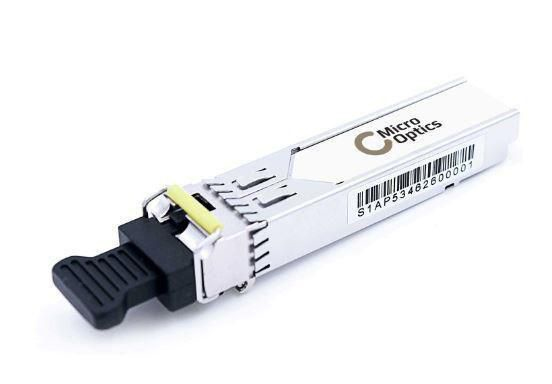

MO-10056H network transceiver module Fiber optic 1000 Mbit/s
Model MO-10056HEAN 5715063157398
29 specifications
- Speed1000 Mbit/s
- TypeSFP
- Weight20 g
- SFP transceiver typeFiber optic
- Operating temperature (T-T)0 - 70 °C
- Width60 mm
Overview
- Speed
- 1000 Mbit/s
- Type
- SFP
- Weight
- 20 g
- SFP transceiver type
- Fiber optic
- Operating temperature (T-T)
- 0 - 70 °C
- Width
- 60 mm
- Brand
- Lanview
- Category
- Network Transceiver Module
- Model
- MO-10056H
- Part number
- MO-10056H
- EAN / UPC
- 5715063157398
- Also known as
- Lanview MO-10056H network transceiver module Fiber optic 1000 Mbit/s
Specifications
29 specifications in 6 groups
Performance
| Specification | Value |
|---|---|
| SFP transceiver type | Fiber optic |
| Maximum data transfer rate | 1000 Mbit/s |
| Single-mode fiber (SMF) supported | Yes |
| Multi-mode fiber (MMF) supported | No |
| Fiber optic connector | SFP |
| Fiber cable diameters supported (core/cladding) | 9/125 µm |
| SFP transceiver standard | BX-D |
| Maximum transfer distance | 20000 m |
| Tx wavelength (max) | 1490 nm |
| Rx wavelength (max) | 1310 nm |
| Ethernet interface type | Gigabit Ethernet |
| Cabling technology | 1000/10000 |
| Fiber ethernet cabling technology | 1000BASE |
| Duplex system | Half |
Features
| Specification | Value |
|---|---|
| Form factor | SFP |
| Plug and Play | Yes |
| Easy to install | Yes |
| Brand compatibility | Extreme Networks |
| Compatible products | Extreme networks 10056H |
Certificates
| Specification | Value |
|---|---|
| Certification | MSA |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 70 °C |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 60 mm |
| Depth | 100 mm |
| Height | 30 mm |
| Weight | 20 g |
Packaging data
| Specification | Value |
|---|---|
| Package width | 60 mm |
| Package depth | 100 mm |
| Package height | 30 mm |
| Package weight | 30 g |
