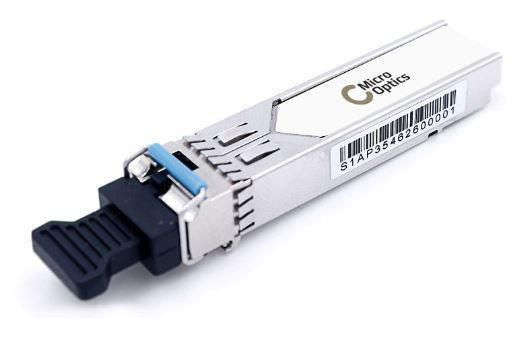

MO-02315285 network transceiver module Fiber optic 1000 Mbit/s SFP 1310 nm
Model MO-02315285EAN 5715063256367
34 specifications
- Speed1000 Mbit/s
- TypeSFP
- Weight30 g
- SFP transceiver typeFiber optic
- Operating temperature (T-T)0 - 70 °C
- Width60 mm
Overview
- Speed
- 1000 Mbit/s
- Type
- SFP
- Weight
- 30 g
- SFP transceiver type
- Fiber optic
- Operating temperature (T-T)
- 0 - 70 °C
- Width
- 60 mm
- Brand
- Lanview
- Category
- Network Transceiver Module
- Model
- MO-02315285
- Part number
- MO-02315285
- EAN / UPC
- 5715063256367
- Also known as
- Lanview MO-02315285 network transceiver module Fiber optic 1000 Mbit/s SFP 1310 nm
Specifications
34 specifications in 7 groups
Performance
| Specification | Value |
|---|---|
| SFP transceiver type | Fiber optic |
| Maximum data transfer rate | 1000 Mbit/s |
| Interface type | SFP |
| Single-mode fiber (SMF) supported | Yes |
| Multi-mode fiber (MMF) supported | No |
| Fiber optic connector | LC |
| SFP transceiver standard | BX-U |
| Maximum transfer distance | 10000 m |
| Wavelength | 1310 nm |
| Tx wavelength (min) | 1310 nm |
| Rx wavelength (min) | 1490 nm |
| Cabling technology | 10/100/1000 |
| Duplex system | Half |
| Digital Diagnostics Monitoring (DDM) | Yes |
| Fiber ports quantity | 1 |
Features
| Specification | Value |
|---|---|
| Form factor | SFP |
| Plug and Play | Yes |
| Easy to install | Yes |
| Brand compatibility | Huawei |
| Compatible products | Huawei 02315285 |
Certificates
| Specification | Value |
|---|---|
| Certification | MSA |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 70 °C |
| Storage temperature (T-T) | -40 - 85 °C |
| Storage relative humidity (H-H) | 10 - 85% |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 60 mm |
| Depth | 100 mm |
| Height | 30 mm |
| Weight | 30 g |
Packaging content
| Specification | Value |
|---|---|
| Quantity per pack | 1 pc(s) |
Packaging data
| Specification | Value |
|---|---|
| Package width | 60 mm |
| Package depth | 100 mm |
| Package height | 30 mm |
| Package weight | 40 g |
| Package type | Window box |
