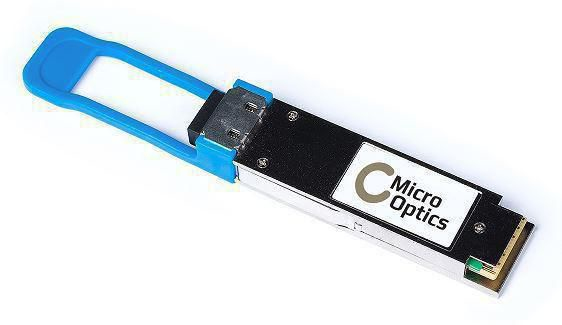

MO-02311BKT network transceiver module Fiber optic LC
Model MO-02311BKTEAN 5715063256589
29 specifications
- TypeQSFP+
- Weight20 g
- SFP transceiver typeFiber optic
- Operating temperature (T-T)0 - 70 °C
- Width60 mm
Overview
- Type
- QSFP+
- Weight
- 20 g
- SFP transceiver type
- Fiber optic
- Operating temperature (T-T)
- 0 - 70 °C
- Width
- 60 mm
- Brand
- Lanview
- Category
- Network Transceiver Module
- Model
- MO-02311BKT
- Part number
- MO-02311BKT
- EAN / UPC
- 5715063256589
- Also known as
- Lanview MO-02311BKT network transceiver module Fiber optic LC
Specifications
29 specifications in 6 groups
Performance
| Specification | Value |
|---|---|
| SFP transceiver type | Fiber optic |
| Interface type | LC |
| Fiber optic connector | QSFP+ |
| SFP transceiver standard | ER4 |
| Maximum transfer distance (Single-mode) | 40000 m |
| Ethernet interface type | 40 Gigabit Ethernet |
| Cabling technology | 1000/10000 |
| Fiber ethernet cabling technology | 40GBASE |
| Duplex system | Full |
| Auto-negotiation | Yes |
Features
| Specification | Value |
|---|---|
| Form factor | QSFP+ |
| Plug and Play | Yes |
| Hot-Plug support | Yes |
| Easy to install | Yes |
| Brand compatibility | Huawei |
| Compatible products | Huawei MO-02311BKT |
Certificates
| Specification | Value |
|---|---|
| Certification | MSA |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 70 °C |
| Storage temperature (T-T) | -40 - 80 °C |
| Storage relative humidity (H-H) | 10 - 85% |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 60 mm |
| Depth | 100 mm |
| Height | 30 mm |
| Weight | 20 g |
Packaging data
| Specification | Value |
|---|---|
| Package width | 60 mm |
| Package depth | 100 mm |
| Package height | 30 mm |
| Package weight | 30 g |
| Package type | Window box |
