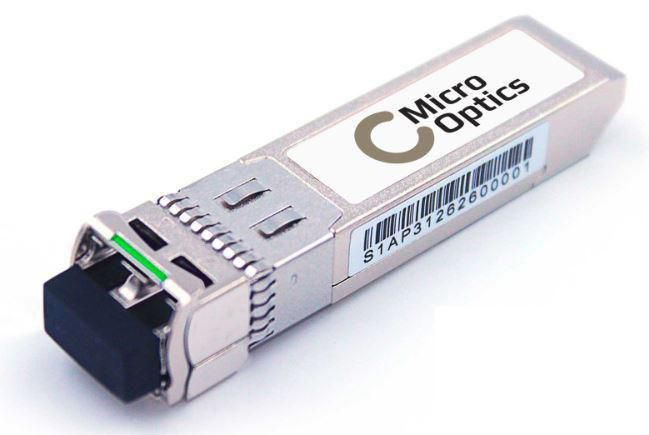

MO-02310SNN network transceiver module Fiber optic 10000 Mbit/s SFP+ 1550 nm
Model MO-02310SNNEAN 5715063257715
32 specifications
- Speed10000 Mbit/s
- TypeSFP+
- Weight10 g
- SFP transceiver typeFiber optic
- Operating temperature (T-T)0 - 70 °C
- Width60 mm
Overview
- Speed
- 10000 Mbit/s
- Type
- SFP+
- Weight
- 10 g
- SFP transceiver type
- Fiber optic
- Operating temperature (T-T)
- 0 - 70 °C
- Width
- 60 mm
- Brand
- Lanview
- Category
- Network Transceiver Module
- Model
- MO-02310SNN
- Part number
- MO-02310SNN
- EAN / UPC
- 5715063257715
- Also known as
- Lanview MO-02310SNN network transceiver module Fiber optic 10000 Mbit/s SFP+ 1550 nm
Specifications
32 specifications in 7 groups
Performance
| Specification | Value |
|---|---|
| SFP transceiver type | Fiber optic |
| Maximum data transfer rate | 10000 Mbit/s |
| Interface type | SFP+ |
| Single-mode fiber (SMF) supported | Yes |
| Multi-mode fiber (MMF) supported | No |
| Fiber optic connector | LC |
| SFP transceiver standard | ZR |
| Maximum transfer distance | 80000 m |
| Wavelength | 1550 nm |
| Cabling technology | 1000/10000 |
| Duplex system | Full |
| Digital Diagnostics Monitoring (DDM) | Yes |
| Fiber ports quantity | 1 |
Features
| Specification | Value |
|---|---|
| Form factor | SFP+ |
| Plug and Play | Yes |
| Easy to install | Yes |
| Brand compatibility | Huawei |
| Compatible products | Huawei 02310SNN |
Certificates
| Specification | Value |
|---|---|
| Certification | MSA |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 70 °C |
| Storage temperature (T-T) | -40 - 85 °C |
| Storage relative humidity (H-H) | 10 - 85% |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 60 mm |
| Depth | 100 mm |
| Height | 30 mm |
| Weight | 10 g |
Packaging content
| Specification | Value |
|---|---|
| Quantity per pack | 1 pc(s) |
Packaging data
| Specification | Value |
|---|---|
| Package width | 60 mm |
| Package depth | 100 mm |
| Package height | 30 mm |
| Package weight | 20 g |
| Package type | Window box |
