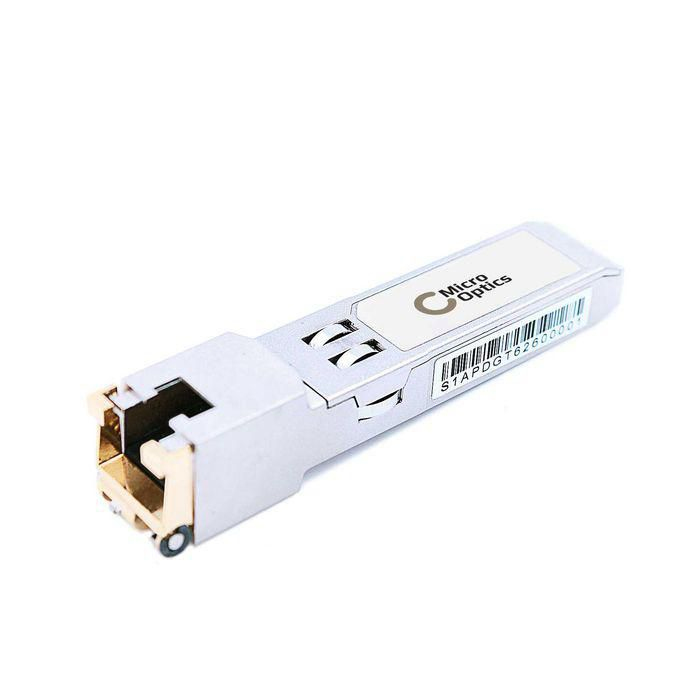

Lanview Cisco GLC-T Compatible SFP RJ-45 Copper, 100m Updated firmware.

Cisco GLC-T Compatible SFP RJ-45 Copper, 100m Updated firmware.

Model Cisco GLC-T Compatible SFP RJ-45 Copper, 100m Updated firmware.Part no. MO-C-ST1-UPDATEDEAN 5715063879122

31 specifications

Speed1000 Mbit/s
TypeSFP
Weight10 g
SFP transceiver typeCopper
Operating temperature (T-T)0 - 70 °C
Width106 mm

See all specifications

Overview

Speed: 1000 Mbit/s
Type: SFP
Weight: 10 g
SFP transceiver type: Copper
Operating temperature (T-T): 0 - 70 °C
Width: 106 mm

Brand: Lanview
Category: Network Transceiver Module
Model: Cisco GLC-T Compatible SFP RJ-45 Copper, 100m Updated firmware.
Part number: MO-C-ST1-UPDATED
EAN / UPC: 5715063879122
Also known as: Lanview Cisco GLC-T Compatible SFP RJ-45 Copper, 100m Updated firmware. network transceiver module 1000 Mbit/s

Specifications

31 specifications in 7 groups

Performance

Specification	Value
SFP transceiver type	Copper
Maximum data transfer rate	1000 Mbit/s
Interface type	SFP
Single-mode fiber (SMF) supported	No
Multi-mode fiber (MMF) supported	No
Fiber optic connector	RJ-45
SFP transceiver standard	TX
Maximum transfer distance	100 m
Cabling technology	10/100/1000
Ethernet LAN (RJ-45) ports	1
Auto MDI/MDI-X	Yes

Features

Specification	Value
Form factor	SFP
Plug and Play	Yes
Hot-Plug support	Yes
Easy to install	Yes
Brand compatibility	Cisco
Compatible products	Cisco GLC-T, GLC-T=, GLC-TE

Certificates

Specification	Value
Certification	MSA

Operational conditions

Specification	Value
Operating temperature (T-T)	0 - 70 °C
Storage temperature (T-T)	-40 - 85 °C
Operating relative humidity (H-H)	10 - 80%
Storage relative humidity (H-H)	10 - 85%

Weight & dimensions

Specification	Value
Width	106 mm
Depth	68 mm
Height	23 mm
Weight	10 g

Packaging content

Specification	Value
Quantity per pack	1 pc(s)

Packaging data

Specification	Value
Package width	106 mm
Package depth	68 mm
Package height	23 mm
Package weight	40 g
