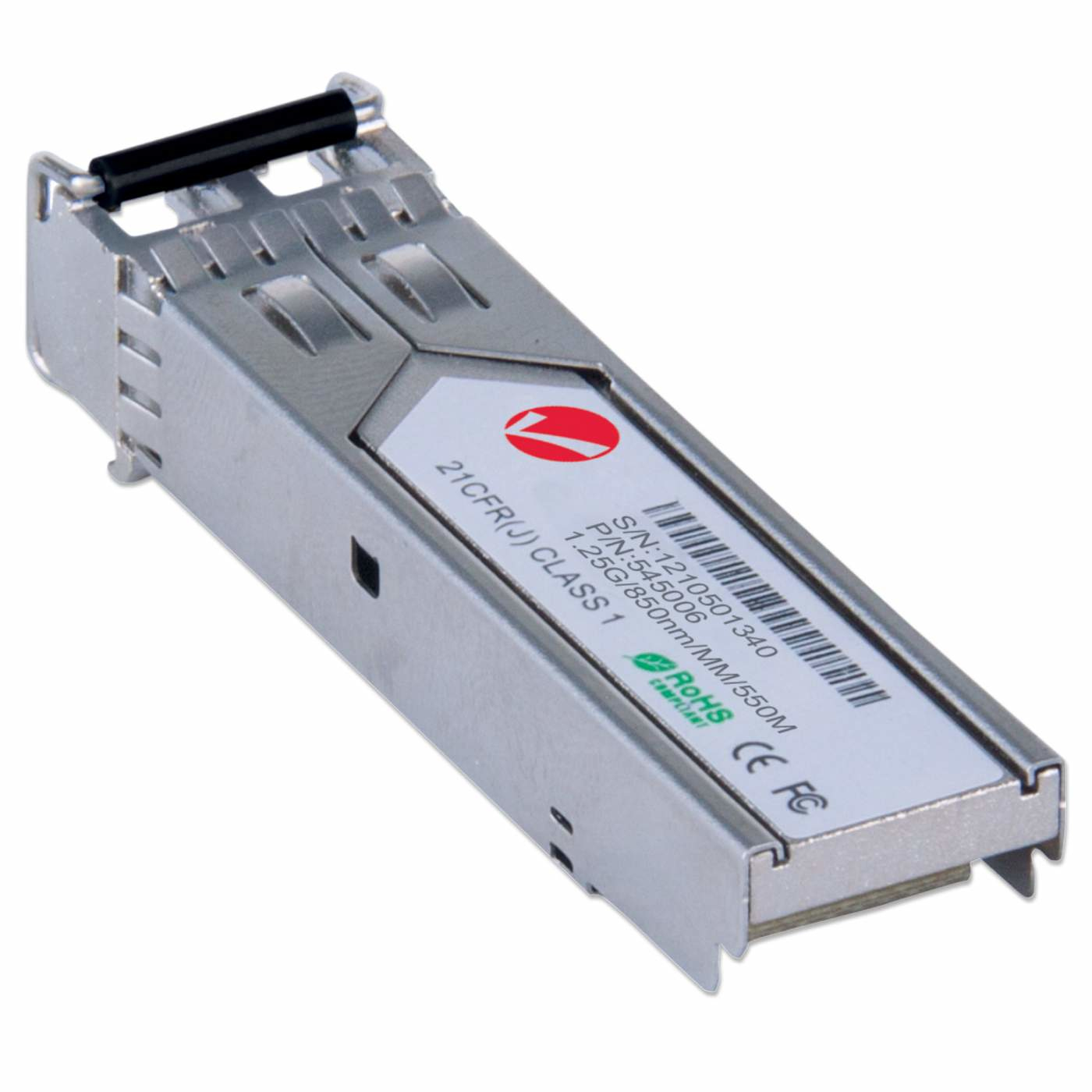

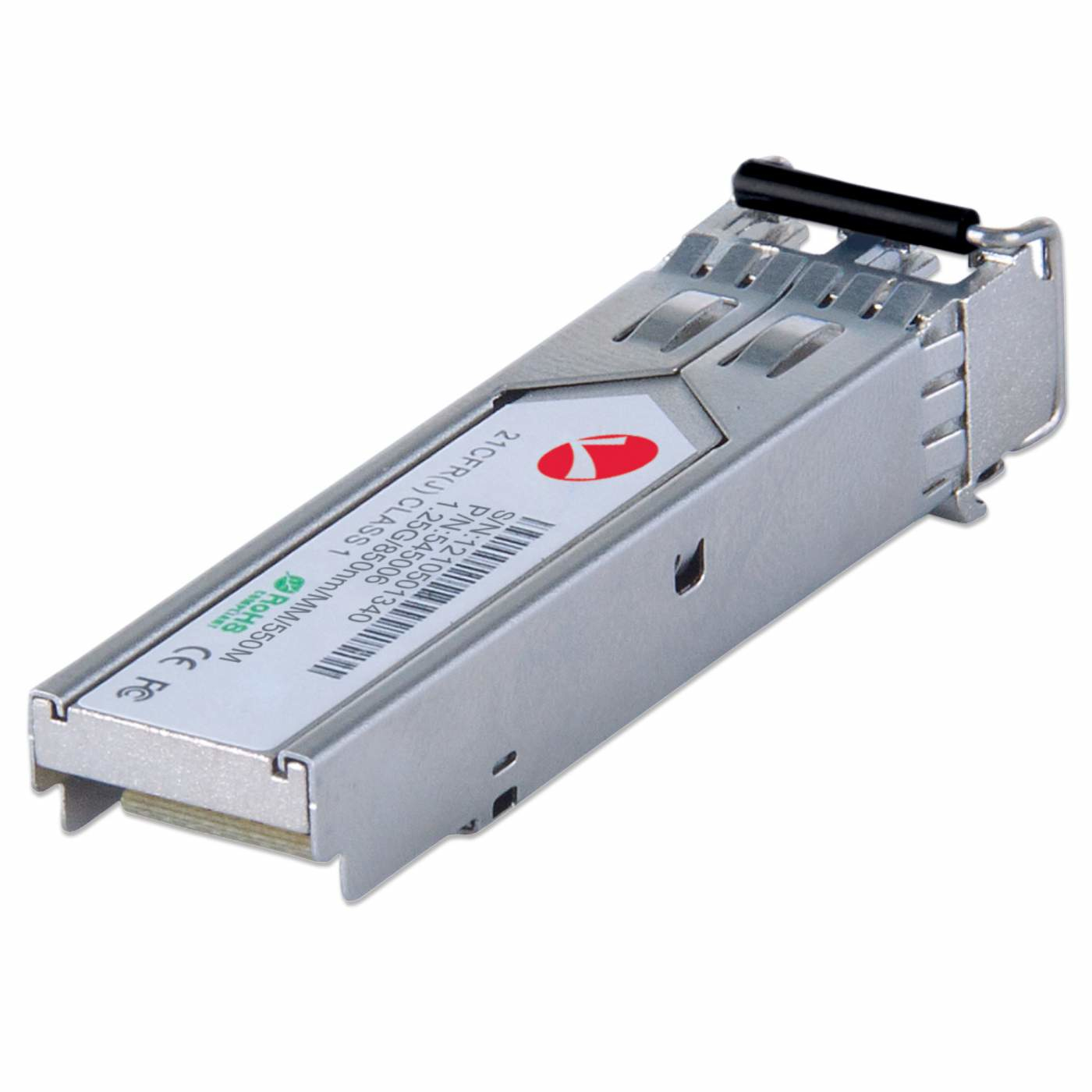

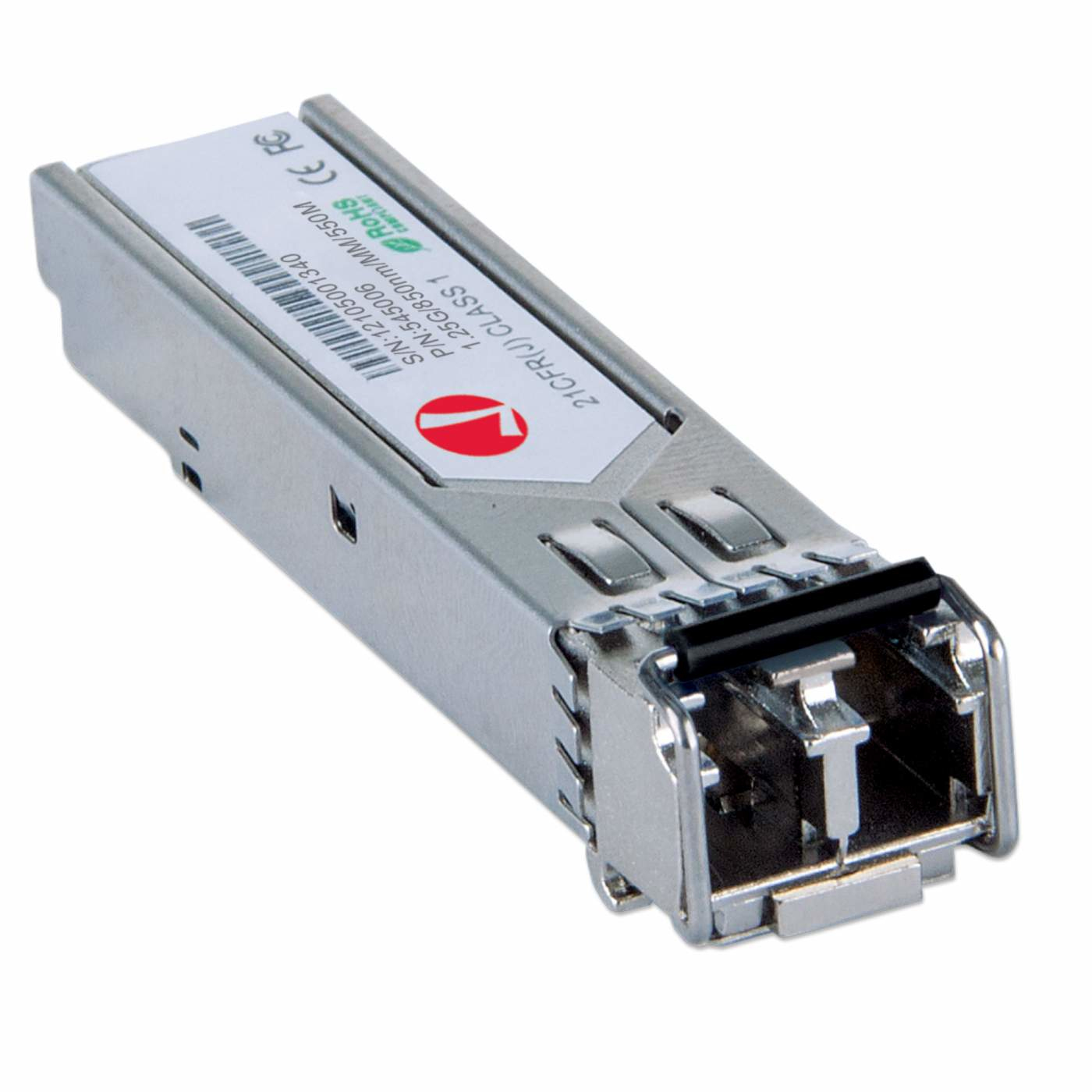

Intellinet Transceiver Module Optical, Gigabit Fiber SFP Mini-GBIC, 1000Base-Sx (LC) Multi-Mode Port, 550m, Wavelength 850nm, Ethernet, Fibre, MSA Compliant, Eq
Model 545006EAN 7666235450060
30 specifications
- Speed1000 Mbit/s
- TypeSFP
- Weight15 g
- ColourAluminium
- SFP transceiver typeFiber optic
- Input voltage3.3 V
Overview
- Speed
- 1000 Mbit/s
- Type
- SFP
- Weight
- 15 g
- Colour
- Aluminium
- SFP transceiver type
- Fiber optic
- Input voltage
- 3.3 V
- Brand
- Intellinet
- Category
- Network Transceiver Module
- Model
- 545006
- Part number
- 545006
- EAN / UPC
- 7666235450060, 070090134695, 132018352427, 617407295566 +4 more
- Also known as
- Intellinet Transceiver Module Optical, Gigabit Fiber SFP Mini-GBIC, 1000Base-Sx (LC) Multi-Mode Port, 550m, Wavelength 850nm, Ethernet, Fibre, MSA Compliant, Eq
Specifications
30 specifications in 7 groups
Performance
| Specification | Value |
|---|---|
| SFP transceiver type | Fiber optic |
| Maximum data transfer rate | 1000 Mbit/s |
| Interface type | SFP |
| Multi-mode fiber (MMF) supported | Yes |
| Fiber optic connector | LC |
| Fiber cable diameters supported (core/cladding) | 50/125,62.5/125 µm |
| Maximum transfer distance | 550 m |
| Wavelength | 850 nm |
| Tx power (min) | -8 dBmW |
| Tx power (max) | -3 dBmW |
| Link budget | 8 dB |
| Ethernet interface type | Gigabit Ethernet |
| Networking standards | IEEE 802.3z |
| Fiber ethernet cabling technology | 1000BASE |
| Duplex system | Full |
Features
| Specification | Value |
|---|---|
| Product colour | Aluminium |
| Form factor | SFP |
| Hot-Plug support | Yes |
Power
| Specification | Value |
|---|---|
| Input voltage | 3.3 V |
| Power consumption (typical) | 1 W |
Certificates
| Specification | Value |
|---|---|
| Compliance certificates | CE, RoHS, Federal Communications Commission (FCC) |
| Certification | FCC Class B, CE, RoHS, IEC-60825, UKCA, NDAA |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 70 °C |
| Storage temperature (T-T) | -40 - 85 °C |
| Operating relative humidity (H-H) | 5 - 95% |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 13 mm |
| Depth | 55 mm |
| Height | 12 mm |
| Weight | 15 g |
Packaging content
| Specification | Value |
|---|---|
| Quantity per pack | 1 pc(s) |
