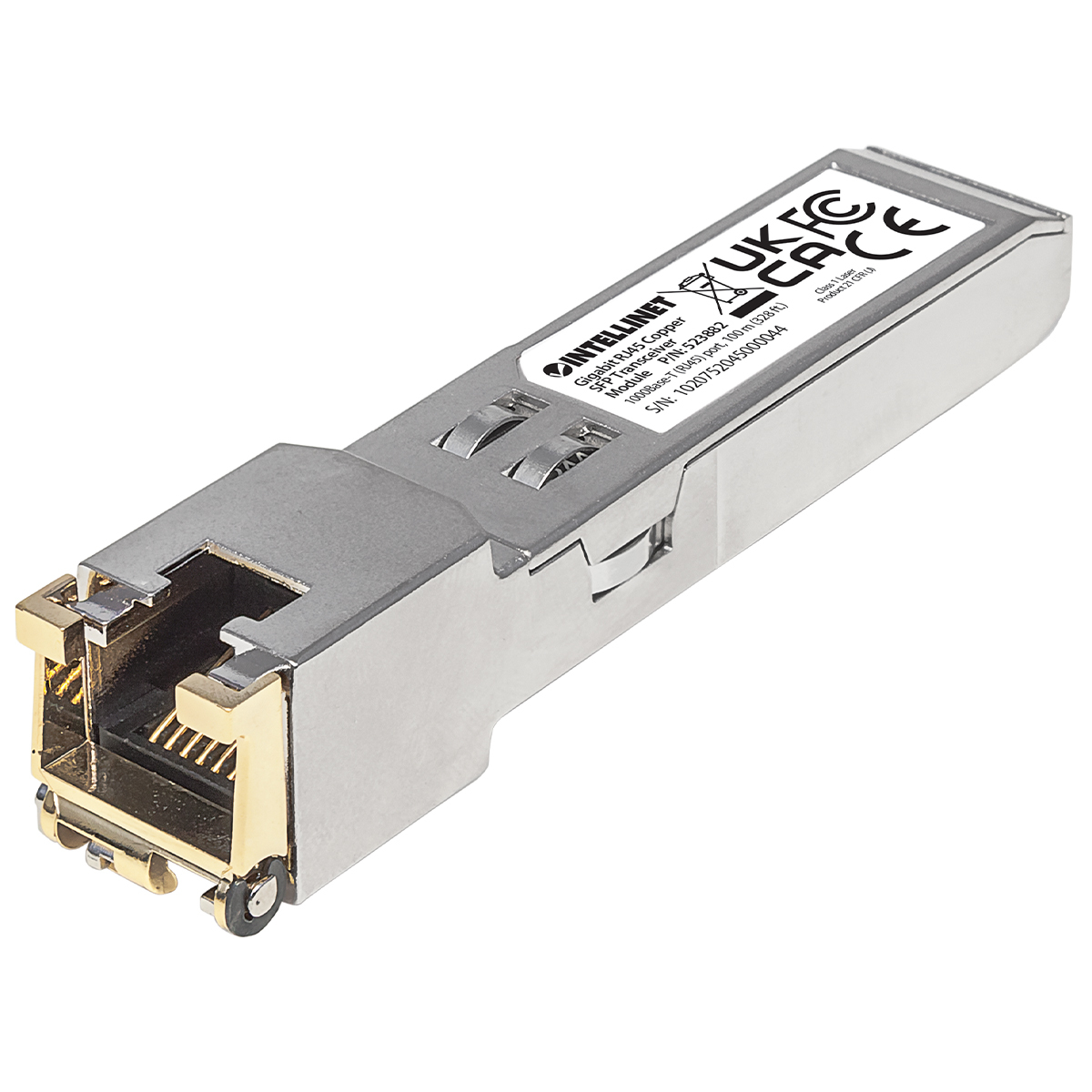

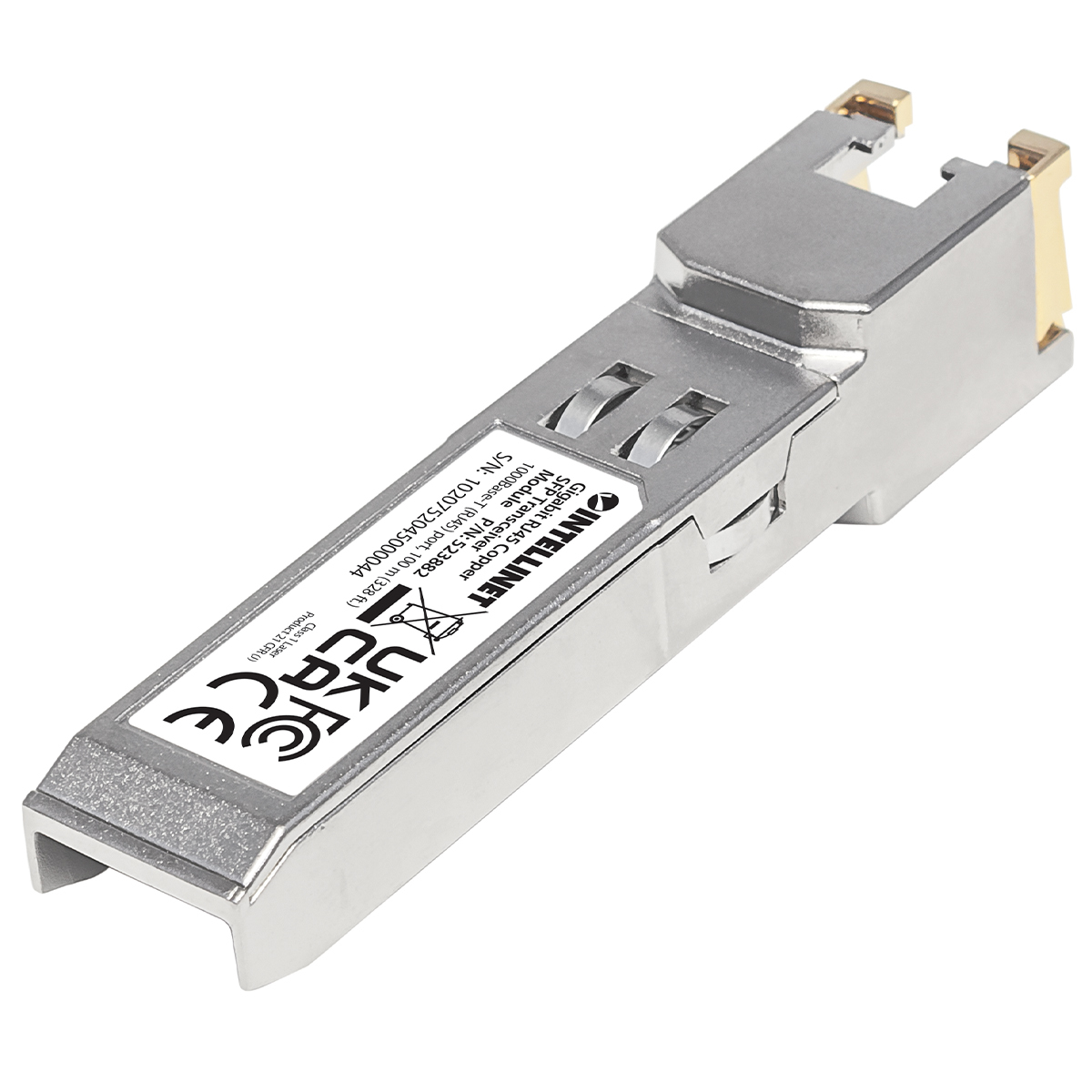

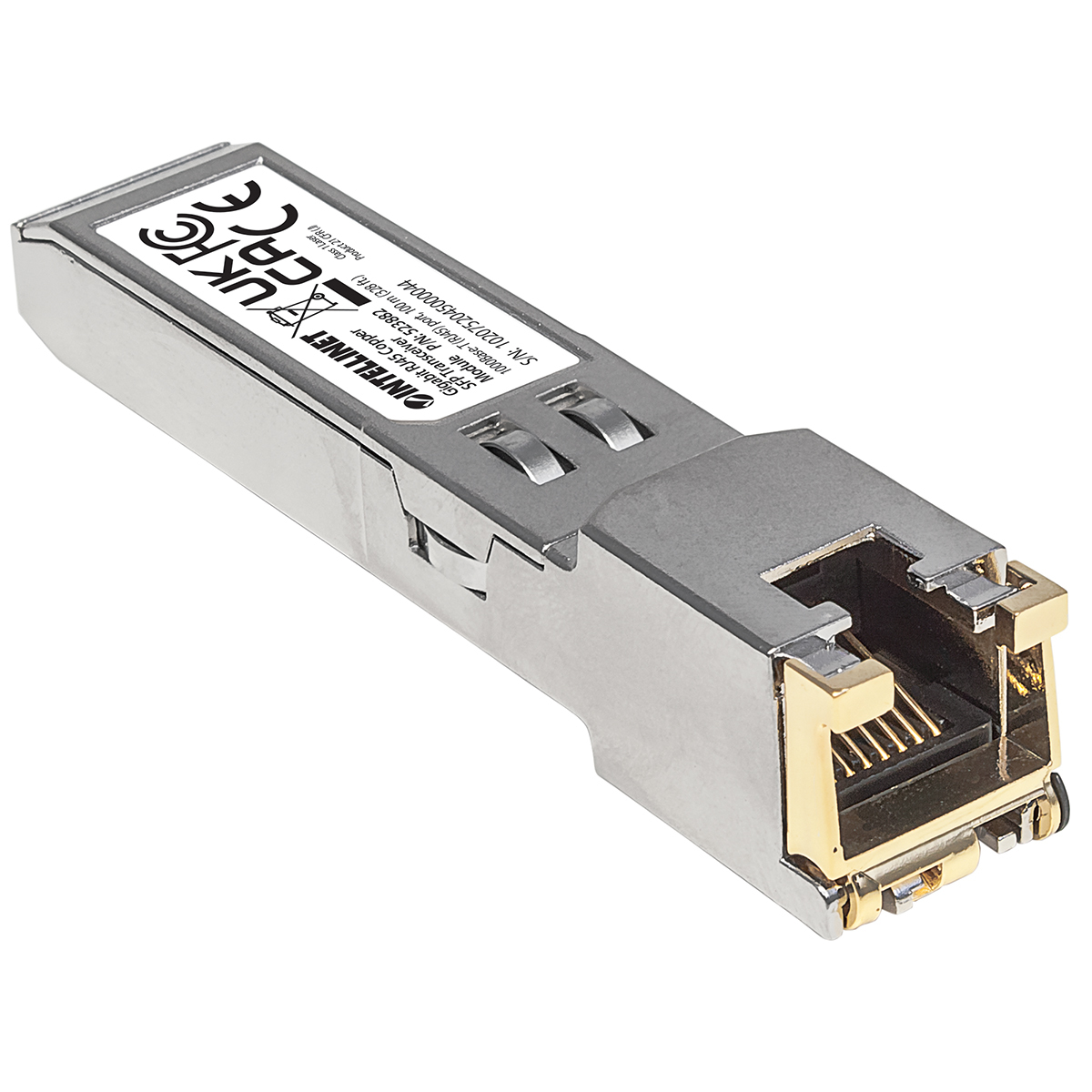

Intellinet Transceiver Module Optical, Gigabit RJ45 Copper SFP, 1000Base-T (RJ45) port, 100m, MSA Compliant, Equivalent to Cisco GLC-T, Ethernet, Fiber/Fibre, T
Model 523882EAN 766623523882
22 specifications
- Speed1250 Mbit/s
- Weight21 g
- ColourMetallic
- Input voltage3.3 V
- Operating temperature (T-T)0 - 70 °C
- Width14 mm
Overview
- Speed
- 1250 Mbit/s
- Weight
- 21 g
- Colour
- Metallic
- Input voltage
- 3.3 V
- Operating temperature (T-T)
- 0 - 70 °C
- Width
- 14 mm
- Brand
- Intellinet
- Category
- Network Transceiver Module
- Model
- 523882
- Part number
- 523882
- EAN / UPC
- 766623523882
- Also known as
- Intellinet Transceiver Module Optical, Gigabit RJ45 Copper SFP, 1000Base-T (RJ45) port, 100m, MSA Compliant, Equivalent to Cisco GLC-T, Ethernet, Fiber/Fibre, T
Specifications
22 specifications in 8 groups
Performance
| Specification | Value |
|---|---|
| Maximum data transfer rate | 1250 Mbit/s |
| Interface type | SFP |
| Maximum transfer distance | 100 m |
| Ethernet LAN | Yes |
| Ethernet interface type | Gigabit Ethernet |
| Networking standards | IEEE 802.3, IEEE 802.3ab, IEEE 802.3u |
| Duplex system | Full |
Features
| Specification | Value |
|---|---|
| Product colour | Metallic |
| Hot-Plug support | Yes |
Power
| Specification | Value |
|---|---|
| Input voltage | 3.3 V |
| Power consumption (typical) | 1.2 W |
Certificates
| Specification | Value |
|---|---|
| Compliance certificates | CE, RoHS, Federal Communications Commission (FCC) |
| Certification | FCC Class B, CE Mark |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 70 °C |
| Storage temperature (T-T) | -40 - 85 °C |
| Operating relative humidity (H-H) | 10 - 85% |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 14 mm |
| Depth | 67 mm |
| Height | 12 mm |
| Weight | 21 g |
Packaging content
| Specification | Value |
|---|---|
| Quantity per pack | 1 pc(s) |
Logistics data
| Specification | Value |
|---|---|
| Harmonized System (HS) code | 85369010 |
