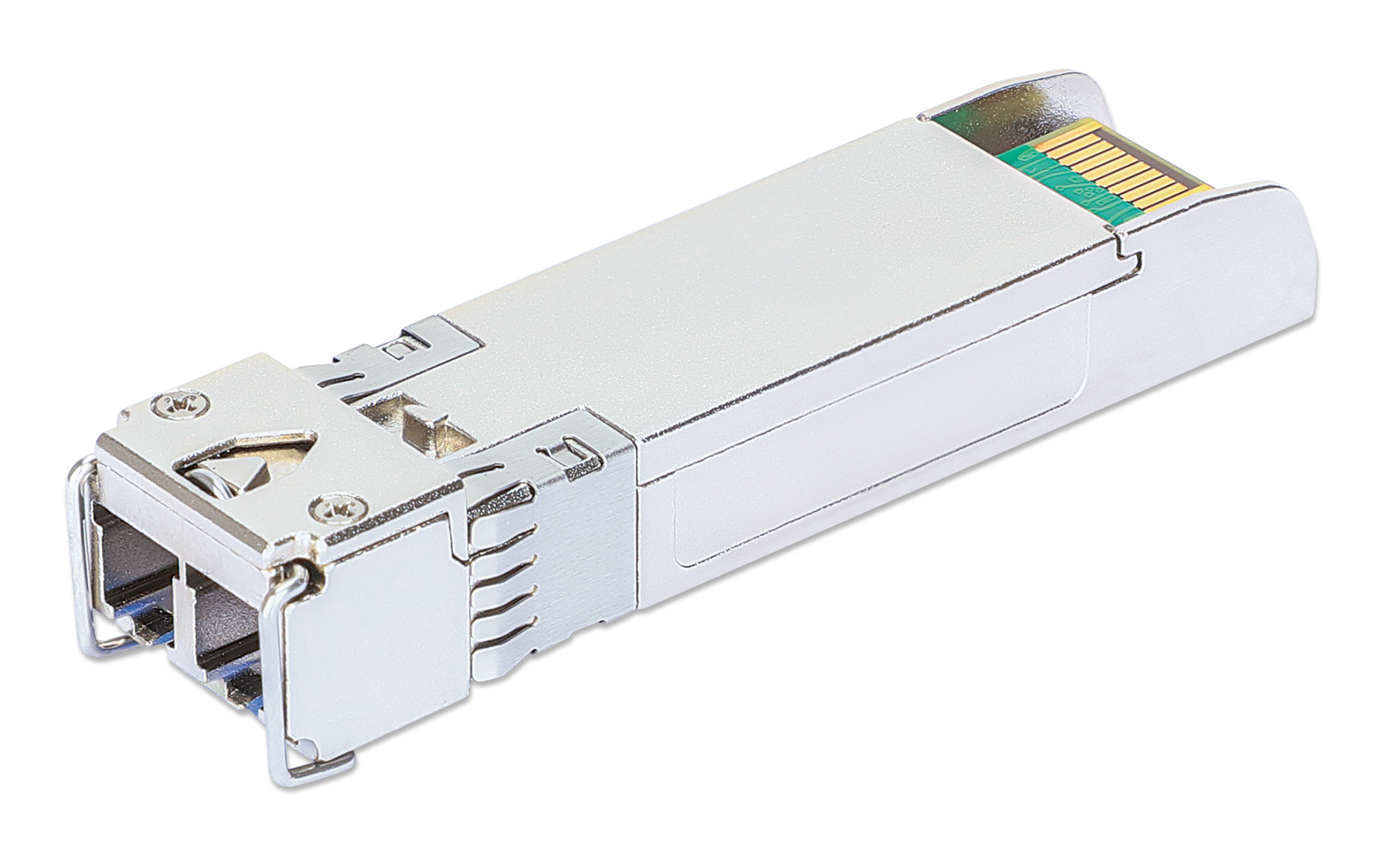

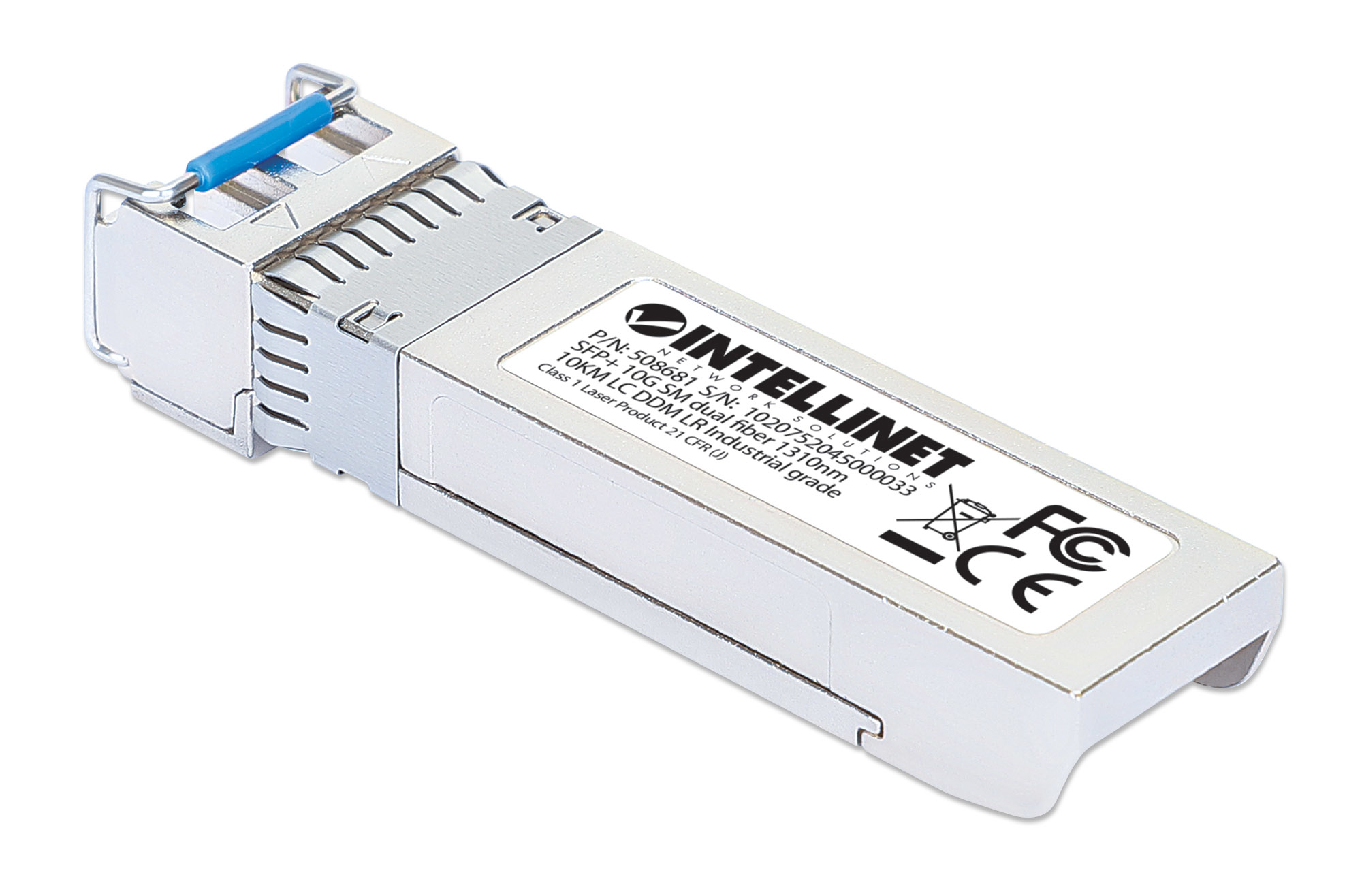

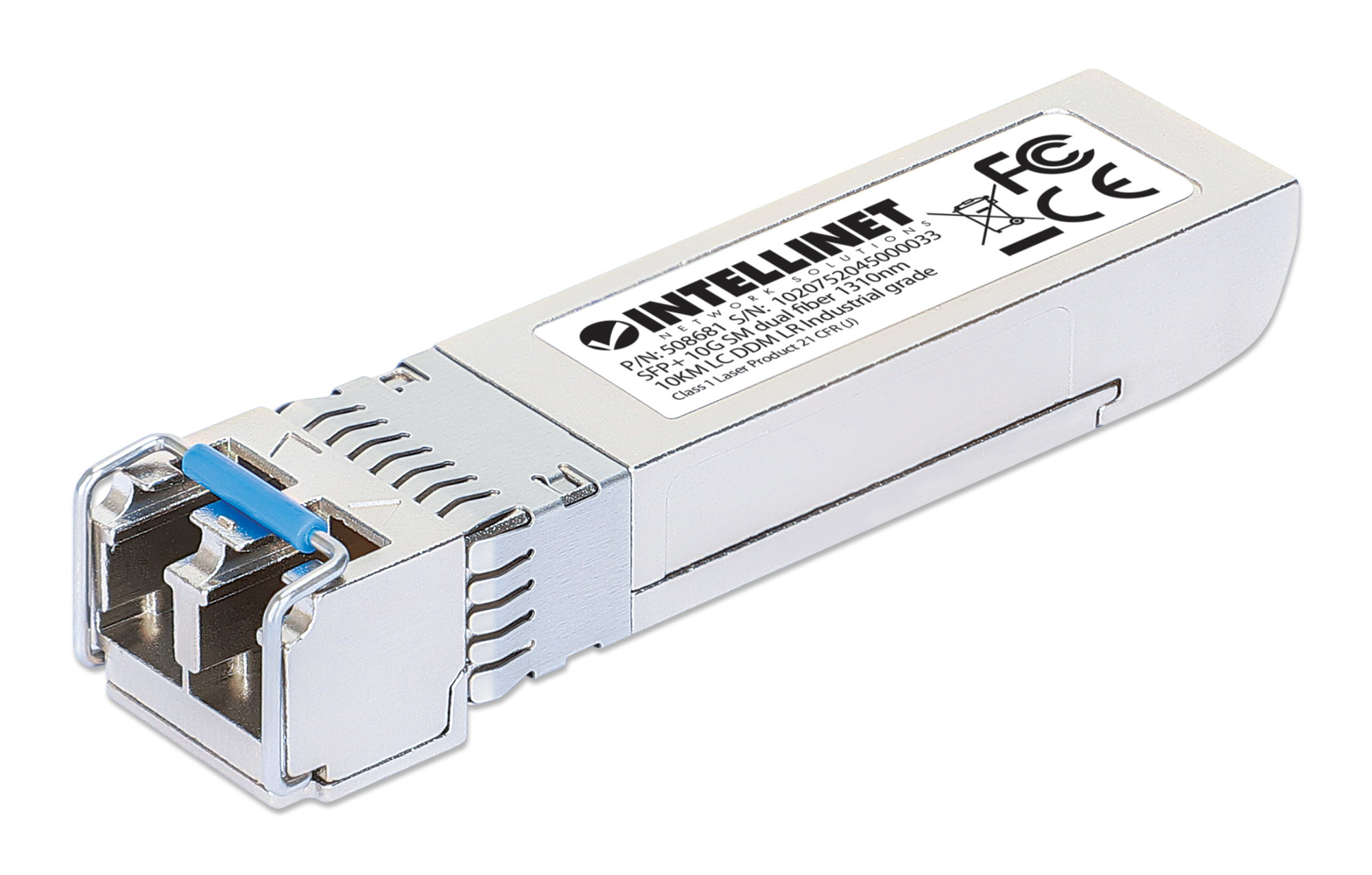

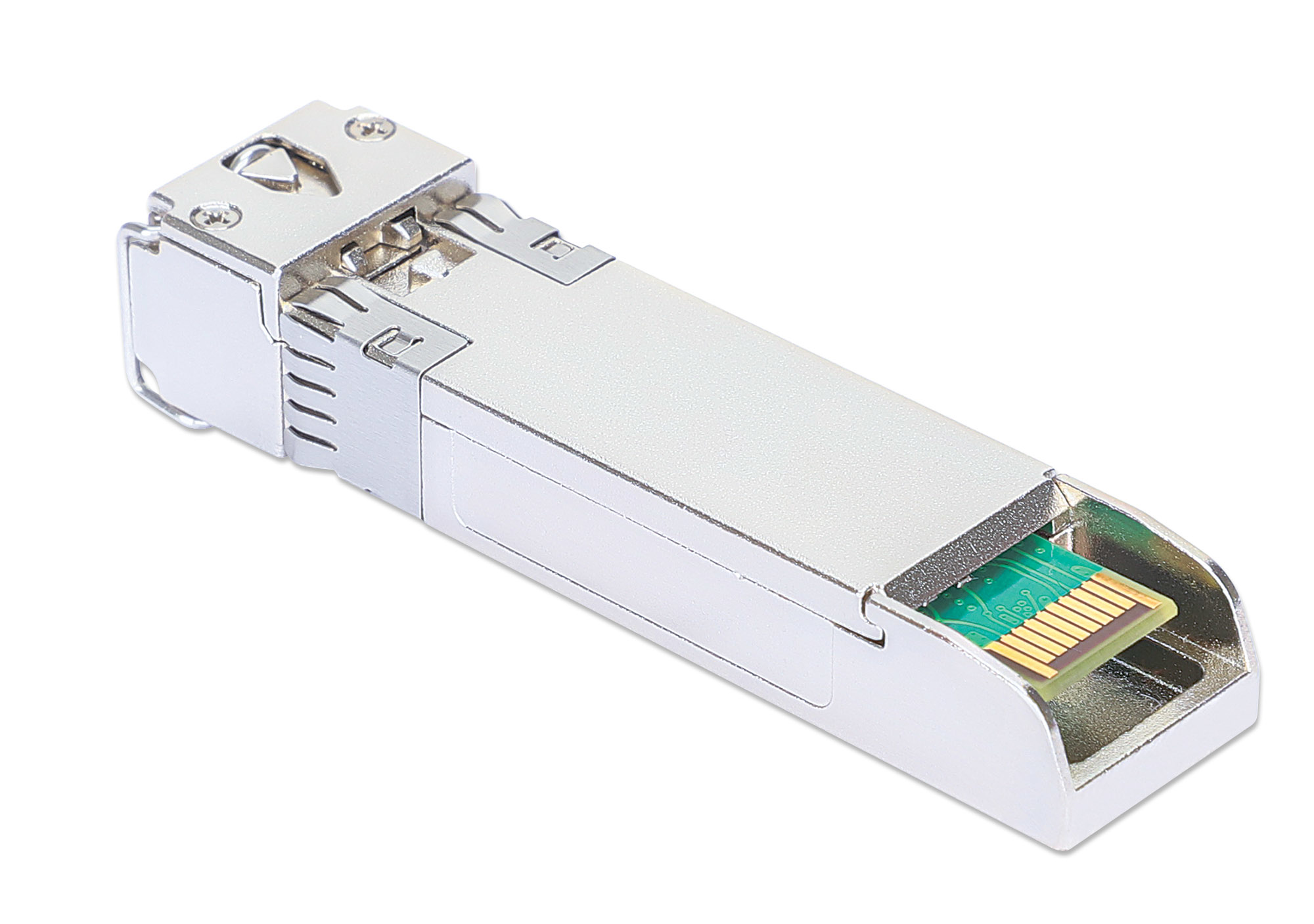

Industrial 10 Gigabit Fiber SFP+ Optical Transceiver Module 10GBase-LR (LC) Single-mode Port, 10 km (6.2 mi.), MSA-compliant for Maximum Compatibilit
Model 508681EAN 766623508681
40 specifications
- Speed10000 Mbit/s
- Weight20 g
- ColourSilver
- SFP transceiver typeFiber optic
- Maximum voltage3.3 V
- Operating temperature (T-T)-40 - 75 °C
Overview
- Speed
- 10000 Mbit/s
- Weight
- 20 g
- Colour
- Silver
- SFP transceiver type
- Fiber optic
- Maximum voltage
- 3.3 V
- Operating temperature (T-T)
- -40 - 75 °C
- Brand
- Intellinet
- Category
- Network Transceiver Module
- Model
- 508681
- Part number
- 508681
- EAN / UPC
- 766623508681
- Also known as
- Intellinet Industrial 10 Gigabit Fiber SFP+ Optical Transceiver Module 10GBase-LR (LC) Single-mode Port, 10 km (6.2 mi.), MSA-compliant for Maximum Compatibilit
Specifications
40 specifications in 10 groups
Performance
| Specification | Value |
|---|---|
| SFP transceiver type | Fiber optic |
| Maximum data transfer rate | 10000 Mbit/s |
| Interface type | SFP+ |
| Single-mode fiber (SMF) supported | Yes |
| Fiber optic connector | LC |
| SFP transceiver standard | LR |
| Maximum transfer distance | 10000 m |
| Wavelength | 1310 nm |
| Tx power (min) | -6 dBmW |
| Tx power (max) | -0.5 dBmW |
| Link budget | 9 dB |
| Networking standards | IEEE 802.3ae, IEEE 802.3z |
| Fiber ethernet cabling technology | 10GBASE |
| Duplex system | Full |
| Digital Diagnostics Monitoring (DDM) | Yes |
Features
| Specification | Value |
|---|---|
| Product colour | Silver |
| Housing material | Metal |
| Hot-Plug support | Yes |
| Brand compatibility | MSA Compliant |
Power
| Specification | Value |
|---|---|
| Maximum voltage | 3.3 V |
| Power consumption (typical) | 1 W |
Certificates
| Specification | Value |
|---|---|
| Compliance certificates | RoHS, Federal Communications Commission (FCC), National Defense Authorization Act (NDAA), UKCA, CE |
Sustainability
| Specification | Value |
|---|---|
| Sustainability compliance | Yes |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | -40 - 75 °C |
| Storage temperature (T-T) | -40 - 85 °C |
| Operating relative humidity (H-H) | 5 - 95% |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 14 mm |
| Depth | 57 mm |
| Height | 12 mm |
| Weight | 20 g |
Packaging content
| Specification | Value |
|---|---|
| Quantity per pack | 1 pc(s) |
Packaging data
| Specification | Value |
|---|---|
| Package width | 57 mm |
| Package depth | 118 mm |
| Package height | 25 mm |
| Package weight | 50 g |
Logistics data
| Specification | Value |
|---|---|
| Master (outer) case width | 200 mm |
| Master (outer) case length | 310 mm |
| Master (outer) case height | 250 mm |
| Master (outer) case gross weight | 2.6 kg |
| Products per master (outer) case | 48 pc(s) |
