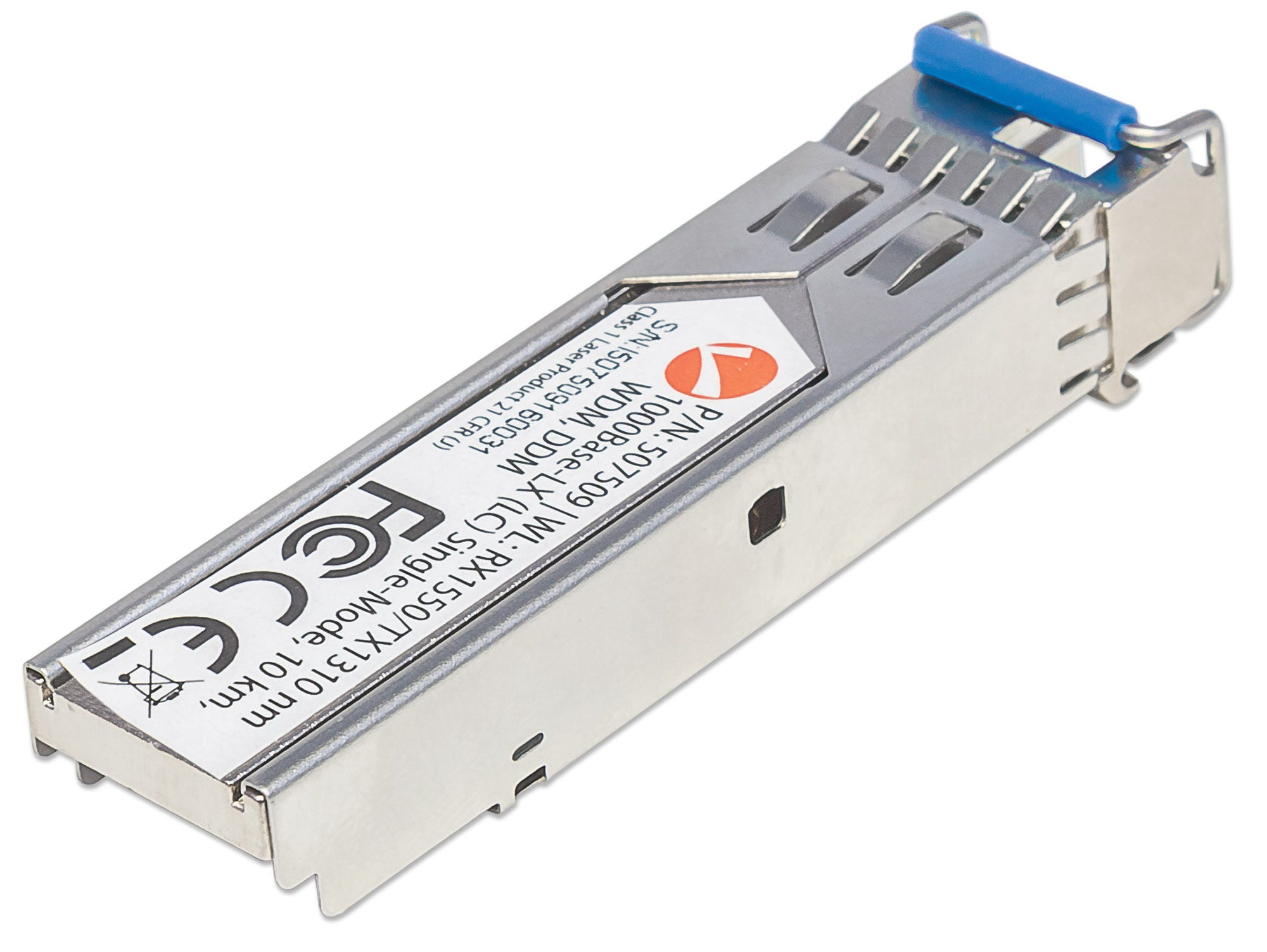

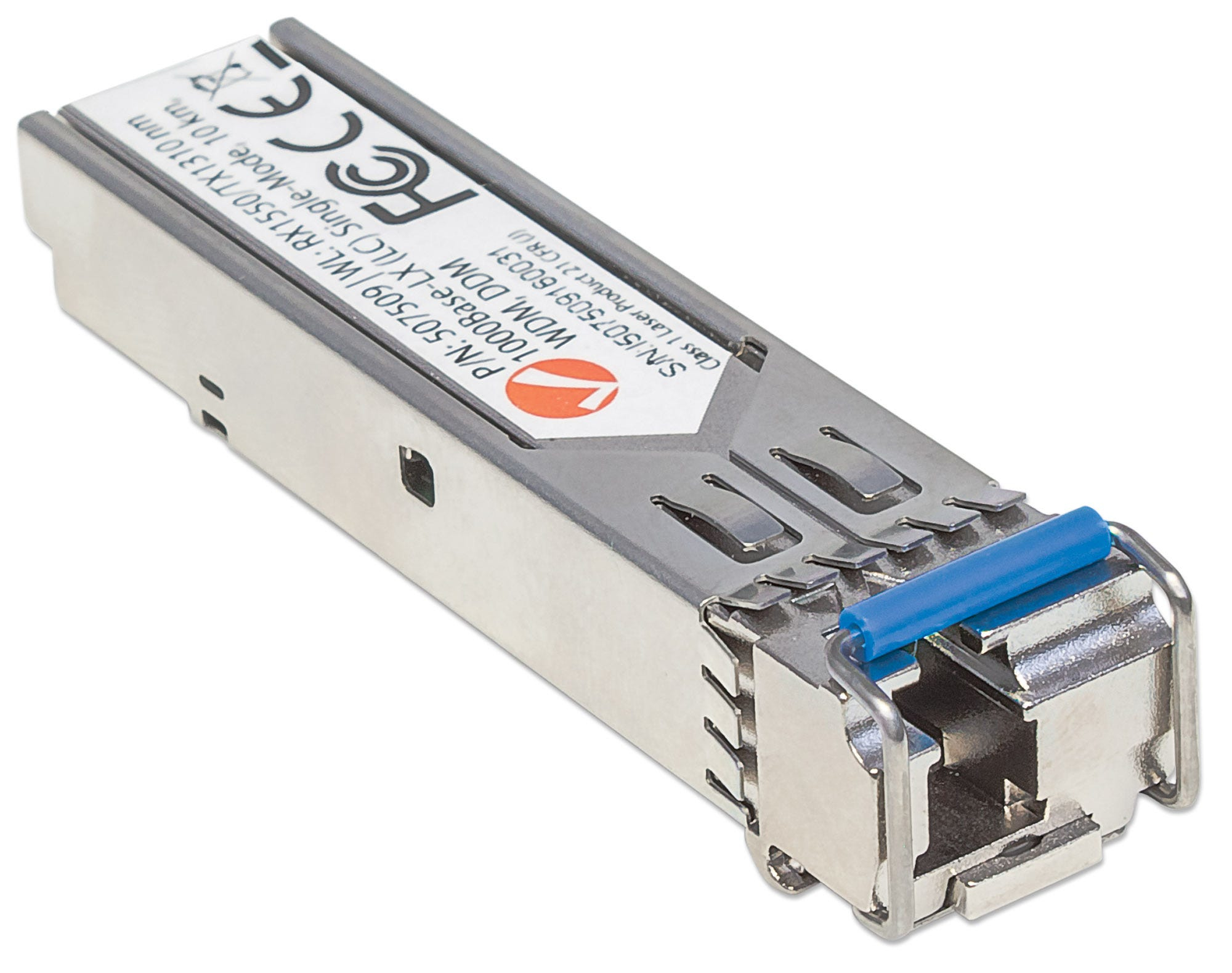

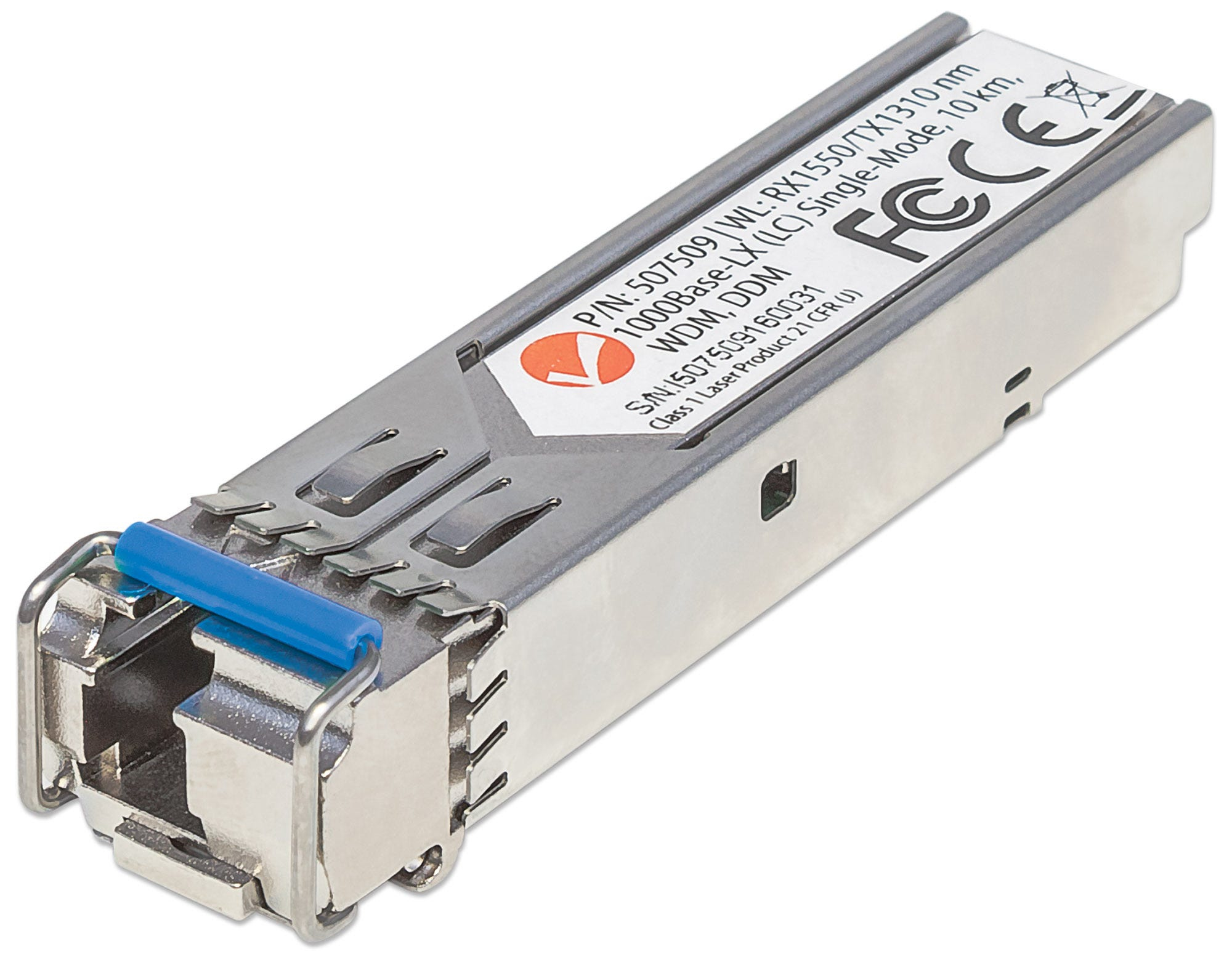

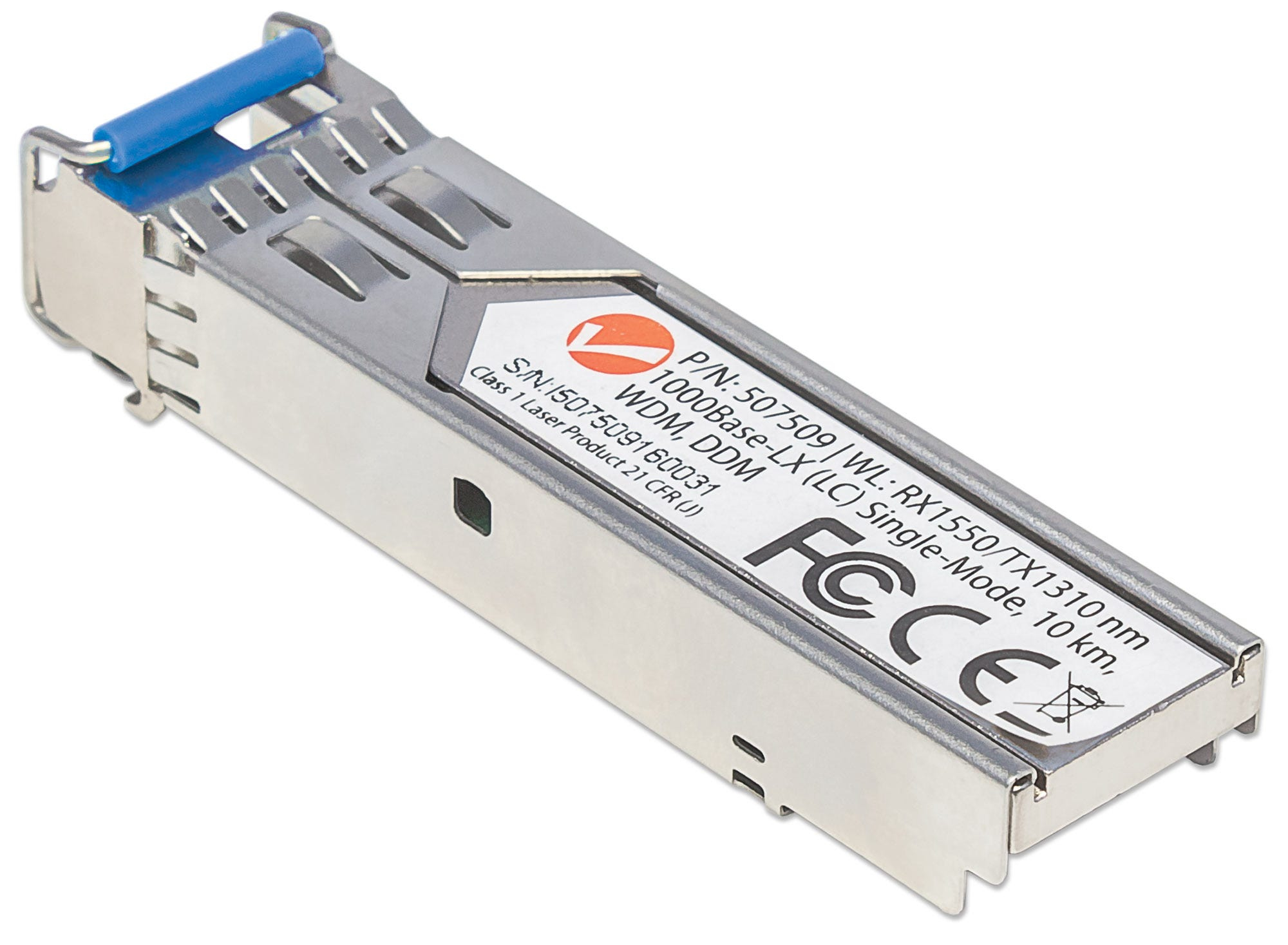

Intellinet Transceiver Module Optical, Gigabit Fiber WDM Bi-Directional SFP, 1000Base-Lx (LC) Single-Mode Port, 10km, Wavelengths: receive (RX) 1550nm and trans

Intellinet Transceiver Module Optical, Gigabit Fiber WDM Bi-Directional SFP, 1000Base-Lx (LC) Single-Mode Port, 10km, Wavelengths: receive (RX) 1550nm and trans

Model 507509EAN 766623507509

31 specifications
  • Speed1000 Mbit/s
  • Weight37 g
  • ColourMetallic
  • SFP transceiver typeFiber optic
  • Input voltage3.3 V
  • Operating temperature (T-T)0 - 70 °C
See all specifications

Overview

Speed
1000 Mbit/s
Weight
37 g
Colour
Metallic
SFP transceiver type
Fiber optic
Input voltage
3.3 V
Operating temperature (T-T)
0 - 70 °C
Brand
Intellinet
Model
507509
Part number
507509
EAN / UPC
766623507509
Also known as
Intellinet Transceiver Module Optical, Gigabit Fiber WDM Bi-Directional SFP, 1000Base-Lx (LC) Single-Mode Port, 10km, Wavelengths: receive (RX) 1550nm and trans

Specifications

31 specifications in 8 groups

Performance

SFP transceiver typeFiber optic
Maximum data transfer rate1000 Mbit/s
Interface typeSFP
Single-mode fiber (SMF) supportedYes
Fiber optic connectorLC
Fiber cable diameters supported (core/cladding)9/125 µm
Maximum transfer distance10000 m
Tx wavelength (max)1310 nm
Rx wavelength (max)1550 nm
Tx power (min)-8 dBmW
Tx power (max)-3 dBmW
Link budget16 dB
Ethernet LANYes
Ethernet interface typeGigabit Ethernet
Networking standardsIEEE 802.3z
Duplex systemFull

Features

Product colourMetallic
Hot-Plug supportYes

Power

Input voltage3.3 V
Power consumption (typical)1 W

Certificates

Compliance certificatesCE, RoHS, Federal Communications Commission (FCC)
CertificationFCC Class A, CE Mark

Operational conditions

Operating temperature (T-T)0 - 70 °C
Storage temperature (T-T)-40 - 85 °C
Operating relative humidity (H-H)10 - 85%

Weight & dimensions

Width14 mm
Depth57 mm
Height12 mm
Weight37 g

Other features

RX sensitivity-24 dB

Logistics data

Harmonized System (HS) code85369010
