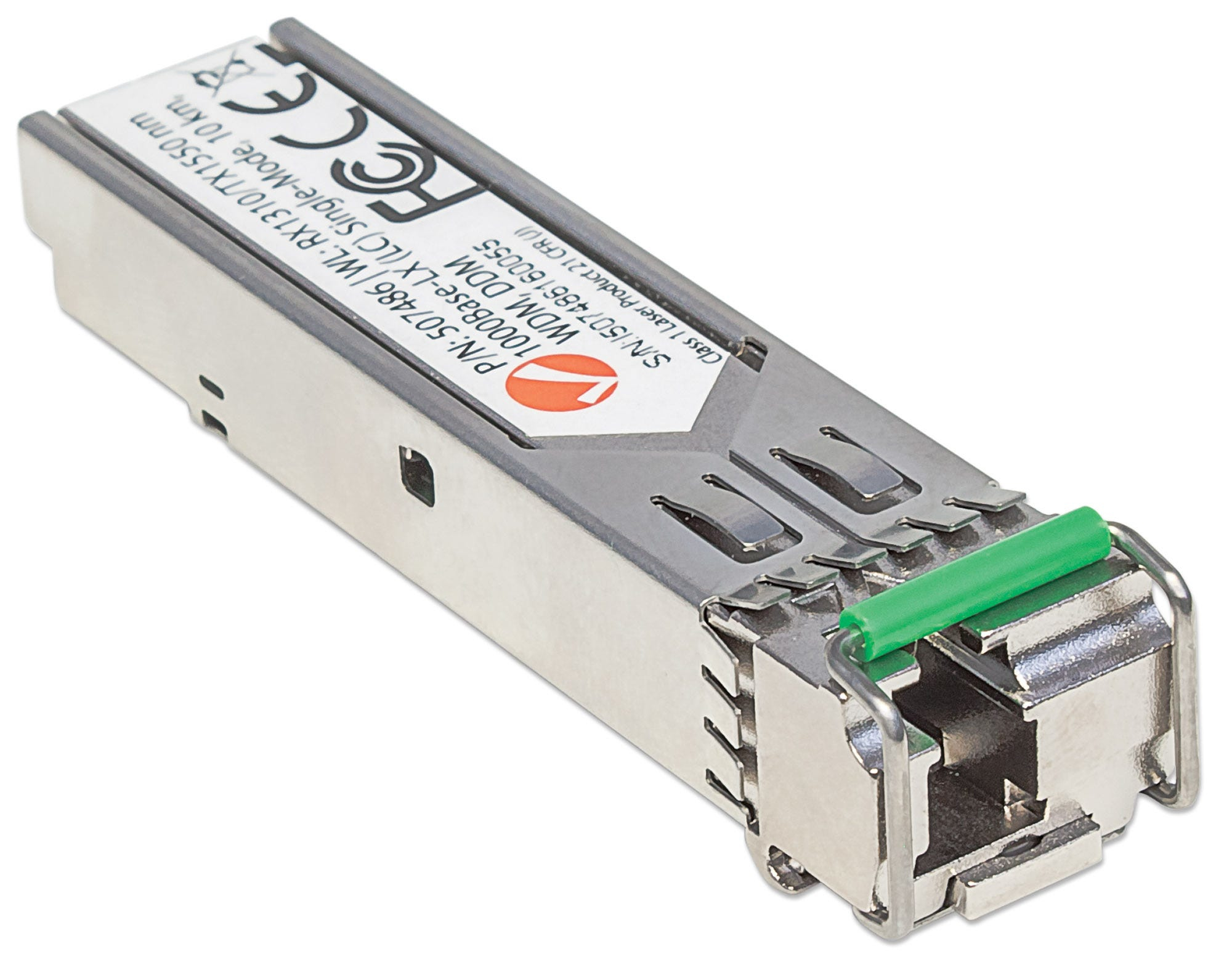

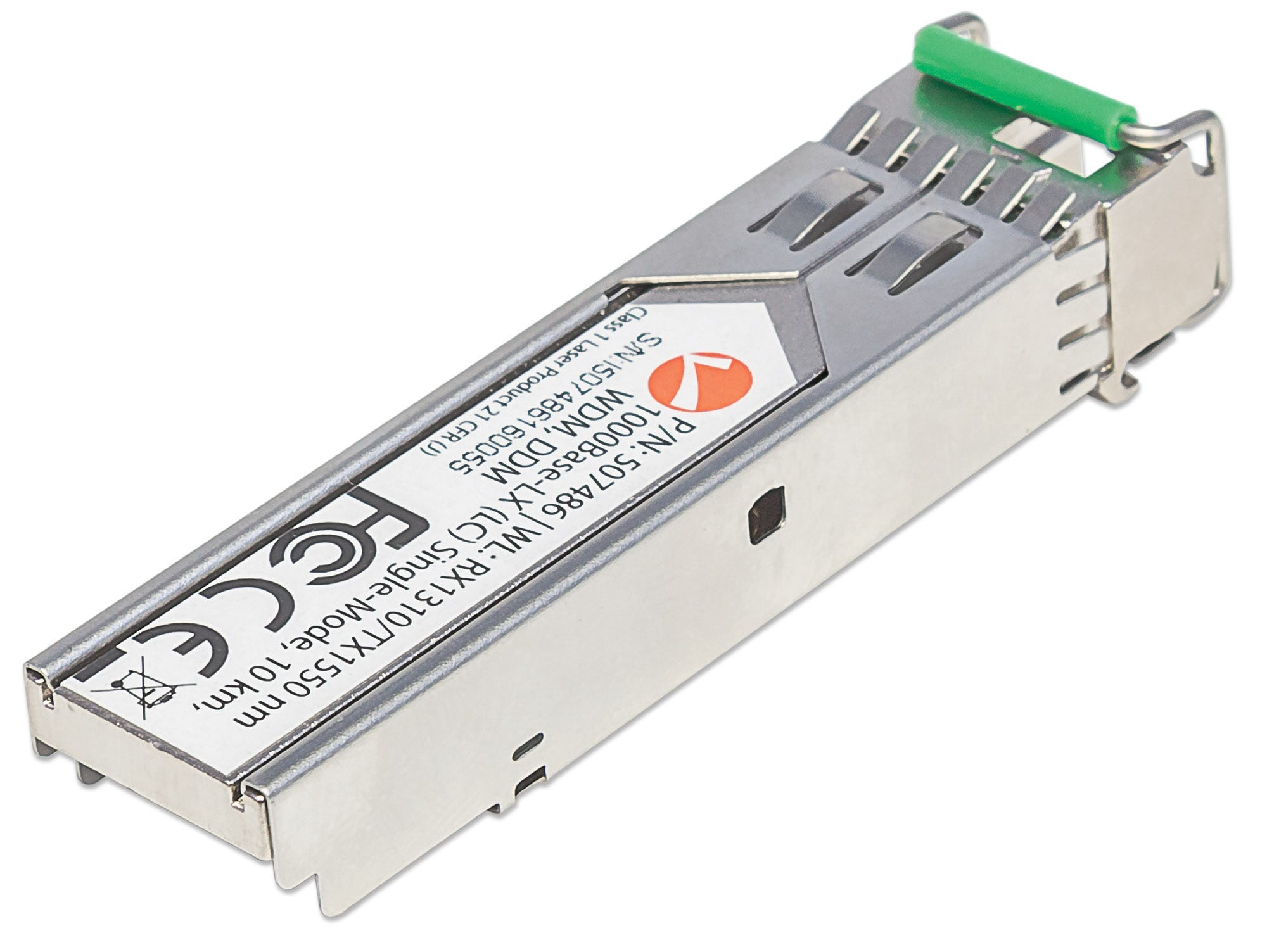

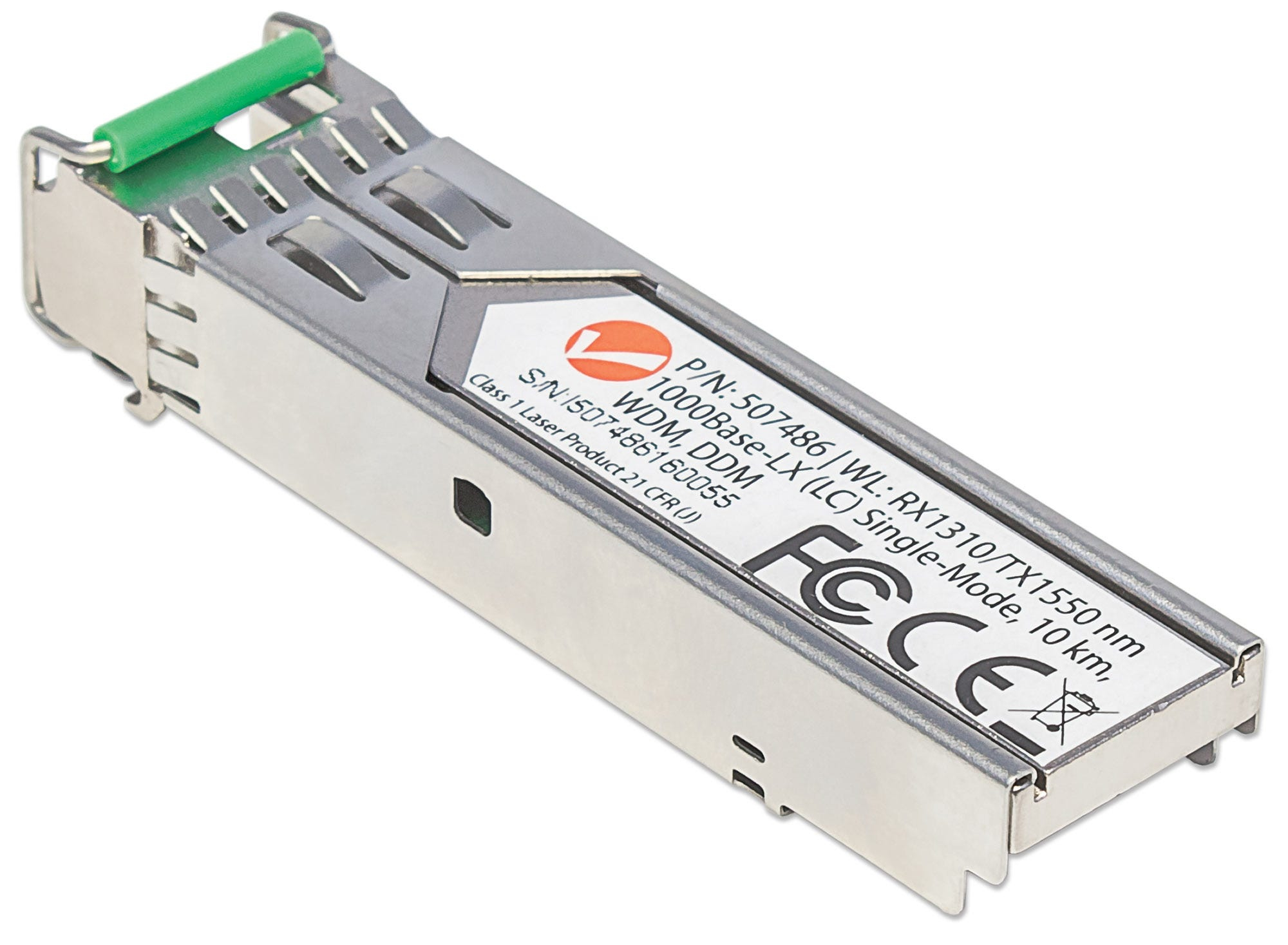

Intellinet Transceiver Module Optical, Gigabit Fiber WDM Bi-Directional SFP, 1000Base-Lx (LC) Single-Mode Port, 10km, Wavelengths: receive (RX) 1310nm and trans
Model 507486EAN 766623507486
31 specifications
- Speed1000 Mbit/s
- Weight37 g
- ColourMetallic
- SFP transceiver typeFiber optic
- Power consumption (typical)1 W
- Operating temperature (T-T)0 - 70 °C
Overview
- Speed
- 1000 Mbit/s
- Weight
- 37 g
- Colour
- Metallic
- SFP transceiver type
- Fiber optic
- Power consumption (typical)
- 1 W
- Operating temperature (T-T)
- 0 - 70 °C
- Brand
- Intellinet
- Category
- Network Transceiver Module
- Model
- 507486
- Part number
- 507486
- EAN / UPC
- 766623507486
- Also known as
- Intellinet Transceiver Module Optical, Gigabit Fiber WDM Bi-Directional SFP, 1000Base-Lx (LC) Single-Mode Port, 10km, Wavelengths: receive (RX) 1310nm and trans
Specifications
31 specifications in 9 groups
Performance
| Specification | Value |
|---|---|
| SFP transceiver type | Fiber optic |
| Maximum data transfer rate | 1000 Mbit/s |
| Interface type | SFP |
| Single-mode fiber (SMF) supported | Yes |
| Fiber optic connector | LC |
| Fiber cable diameters supported (core/cladding) | 9/125 µm |
| Maximum transfer distance | 10000 m |
| Tx wavelength (max) | 1310 nm |
| Rx wavelength (max) | 1550 nm |
| Tx power (min) | -8 dBmW |
| Tx power (max) | -3 dBmW |
| Link budget | 16 dB |
| Ethernet LAN | Yes |
| Cabling technology | 1000Base-LX |
| Networking standards | IEEE 802.3z |
| Duplex system | Full |
| Fiber ports quantity | 1 |
Features
| Specification | Value |
|---|---|
| Product colour | Metallic |
| Hot-Plug support | Yes |
Power
| Specification | Value |
|---|---|
| Power consumption (typical) | 1 W |
Certificates
| Specification | Value |
|---|---|
| Compliance certificates | CE, RoHS, Federal Communications Commission (FCC) |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 70 °C |
| Storage temperature (T-T) | -40 - 85 °C |
| Operating relative humidity (H-H) | 10 - 85% |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 14 mm |
| Depth | 57 mm |
| Height | 12 mm |
| Weight | 37 g |
Packaging content
| Specification | Value |
|---|---|
| Quantity per pack | 1 pc(s) |
Other features
| Specification | Value |
|---|---|
| RX sensitivity | -24 dB |
Logistics data
| Specification | Value |
|---|---|
| Harmonized System (HS) code | 85369010 |
Compare Intellinet Transceiver Module Optical, Gigabit Fiber WDM Bi-Directional SFP, 1000Base-Lx (LC) Single-Mode Port, 10km, Wavelengths: receive (RX) 1310nm and trans
Compare any products- Intellinet Transceiver Module Optical, Gigabit Fiber WDM Bi-Directional SFP, 1000Base-Lx (LC) Single-Mode Port, 10km, Wavelengths: receive (RX) 1310nm and trans vsIntellinet Transceiver Module, 10 Gigabit Copper SFP+, 10GBase-T (RJ45) Port, 30m, up to 10 Gbps Data-Transfer Rate with Cat6a Cabling, Ethernet, Fiber/Fibre, MCompare specs

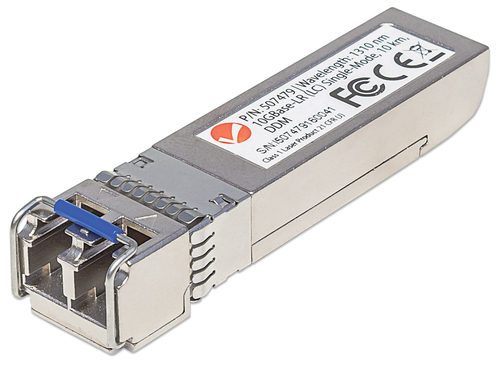

- Intellinet Transceiver Module Optical, Gigabit Fiber WDM Bi-Directional SFP, 1000Base-Lx (LC) Single-Mode Port, 10km, Wavelengths: receive (RX) 1310nm and trans vsIntellinet Transceiver Module Optical, 10 Gigabit Fiber SFP+, 10GBase-LR (LC) Single-Mode Port, 10km, Wavelength 1310nm, MSA Compliant, Equivalent to Cisco SFP+Compare specs

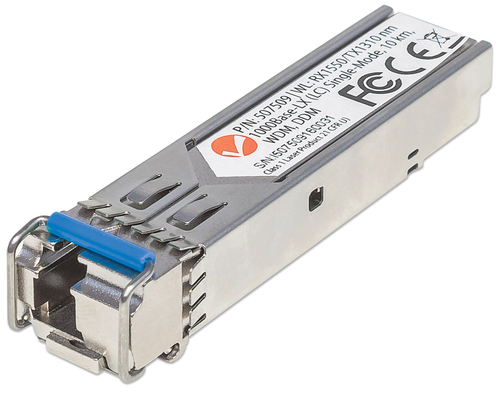

- Intellinet Transceiver Module Optical, Gigabit Fiber WDM Bi-Directional SFP, 1000Base-Lx (LC) Single-Mode Port, 10km, Wavelengths: receive (RX) 1310nm and trans vsIntellinet Transceiver Module Optical, Gigabit Fiber WDM Bi-Directional SFP, 1000Base-Lx (LC) Single-Mode Port, 10km, Wavelengths: receive (RX) 1550nm and transCompare specs

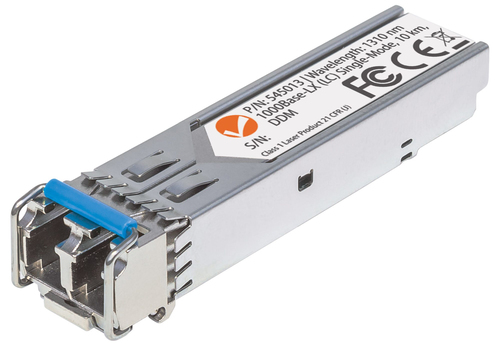

- Intellinet Transceiver Module Optical, Gigabit Fiber WDM Bi-Directional SFP, 1000Base-Lx (LC) Single-Mode Port, 10km, Wavelengths: receive (RX) 1310nm and trans vsIntellinet Transceiver Module Optical, Gigabit Fiber SFP, 1000Base-Lx (LC) Single-Mode Port, 10km, Wavelength 1310nm, MSA Compliant, Equivalent to Cisco GLC-LH-Compare specs
