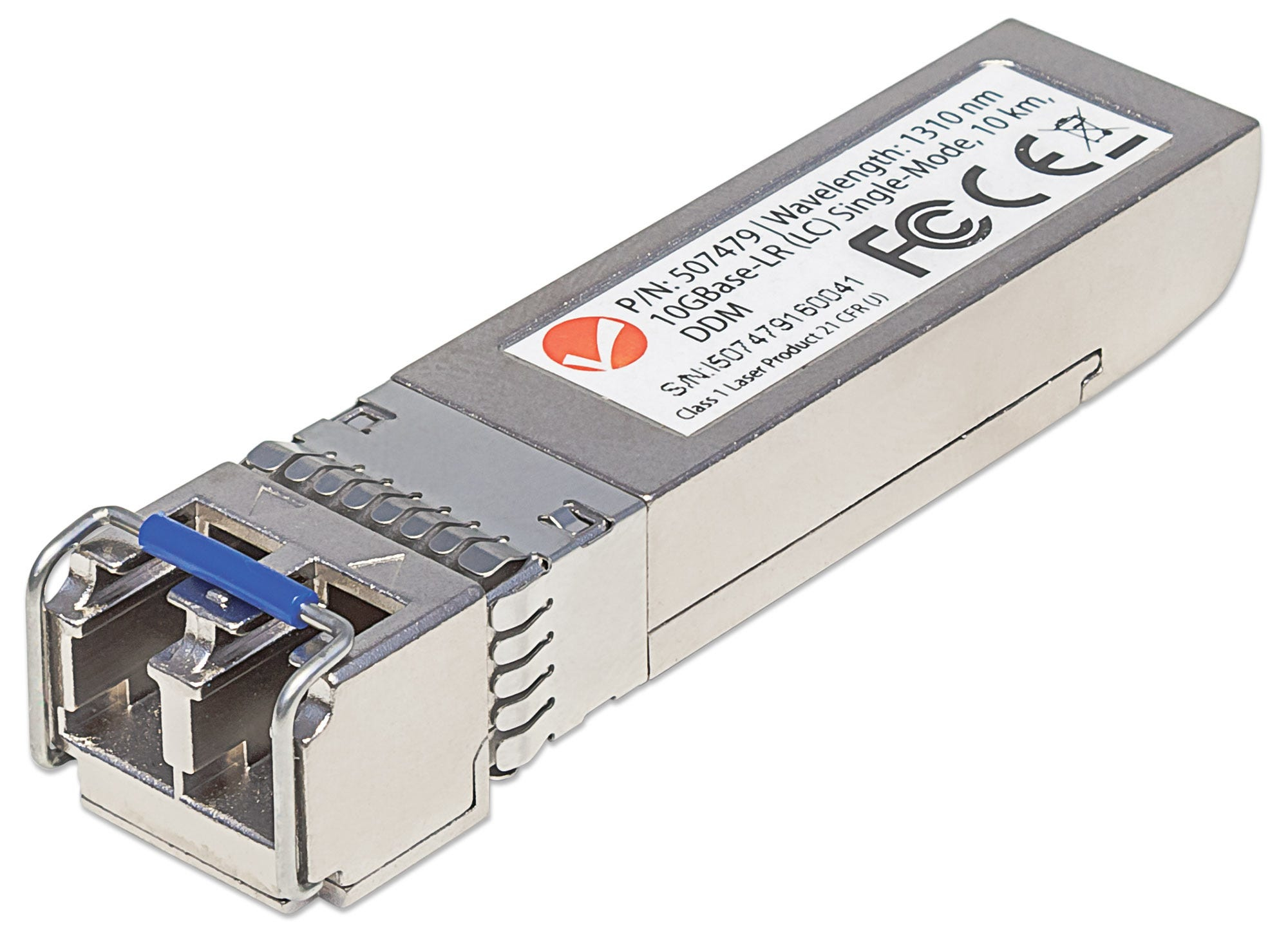

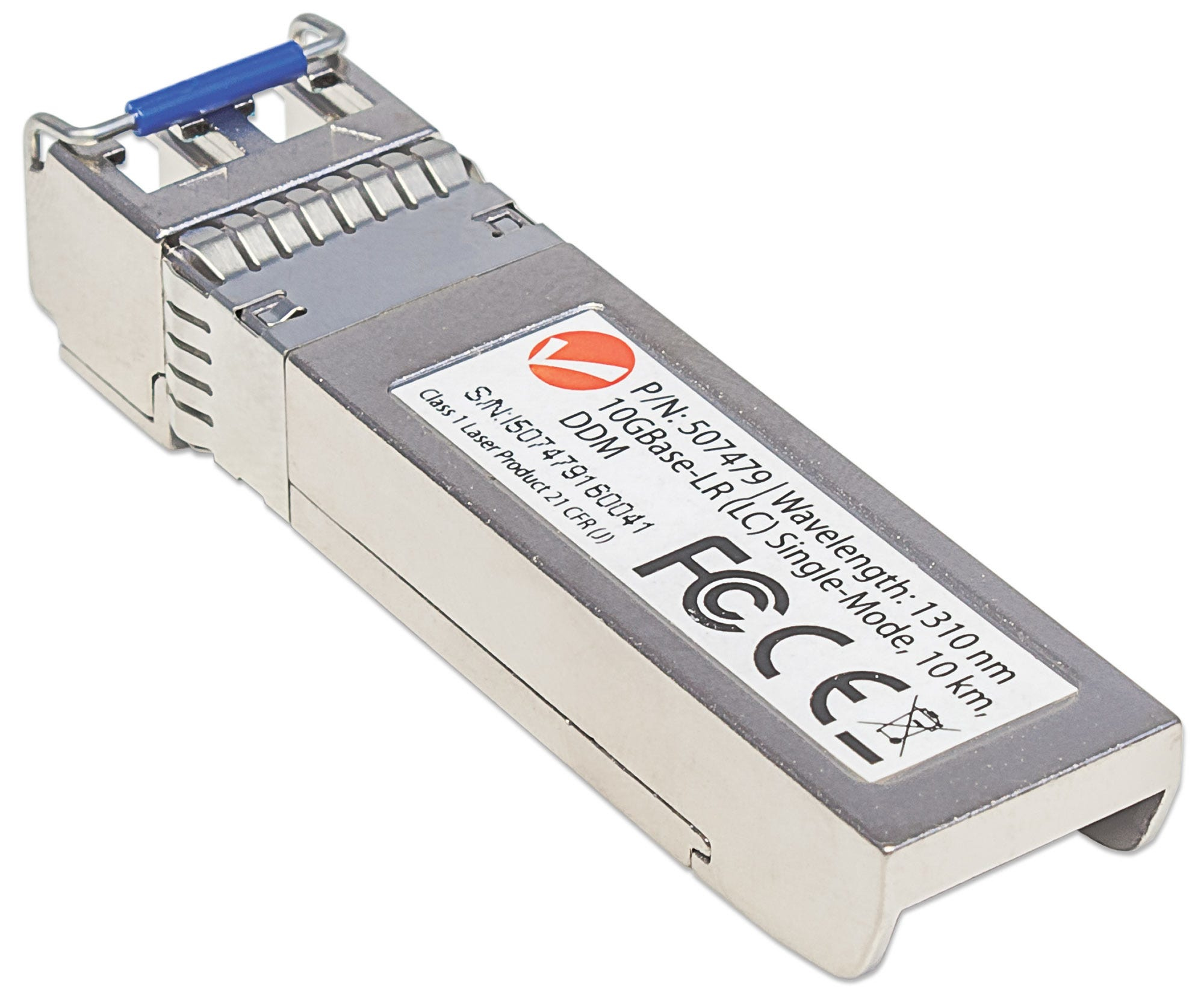

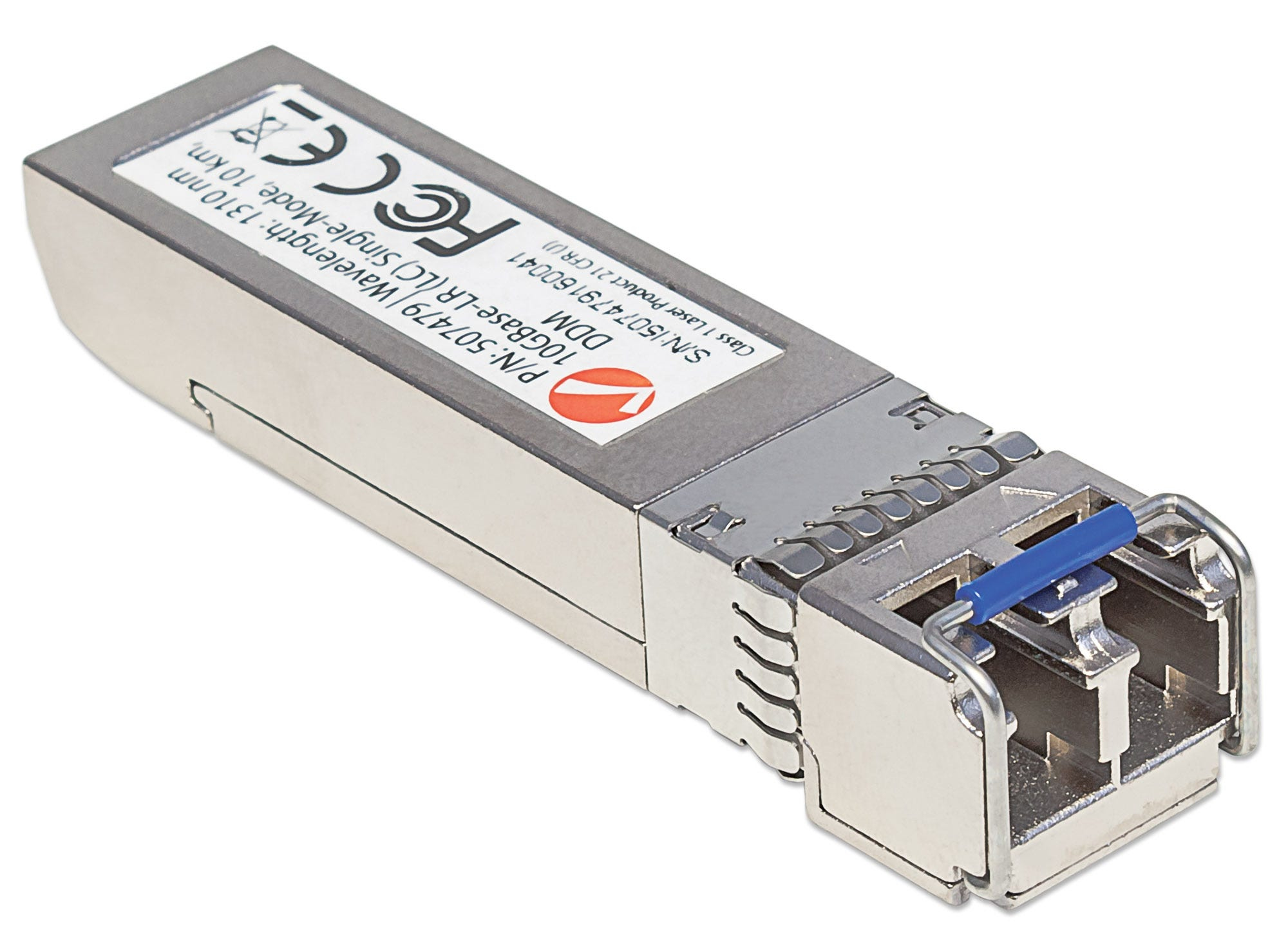

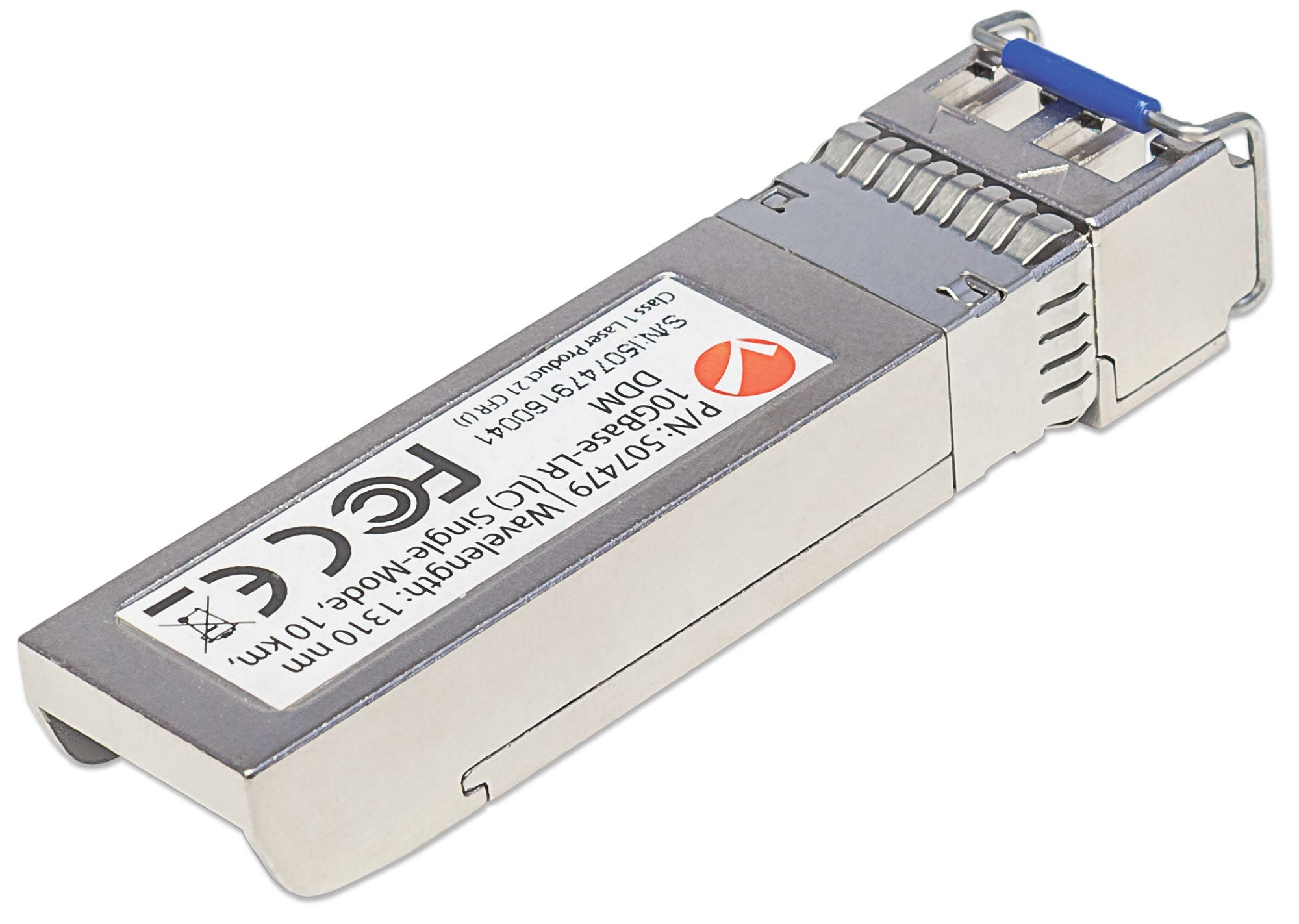

Transceiver Module Optical, 10 Gigabit Fiber SFP+, 10GBase-LR (LC) Single-Mode Port, 10km, Wavelength 1310nm, MSA Compliant, Equivalent to Cisco SFP+
Model 507479EAN 766623507479
29 specifications
- Speed11100 Mbit/s
- Weight37 g
- ColourSilver
- SFP transceiver typeFiber optic
- Maximum voltage3.3 V
- Operating temperature (T-T)0 - 70 °C
Overview
- Speed
- 11100 Mbit/s
- Weight
- 37 g
- Colour
- Silver
- SFP transceiver type
- Fiber optic
- Maximum voltage
- 3.3 V
- Operating temperature (T-T)
- 0 - 70 °C
- Brand
- Intellinet
- Category
- Network Transceiver Module
- Model
- 507479
- Part number
- 507479
- EAN / UPC
- 766623507479
- Also known as
- Intellinet Transceiver Module Optical, 10 Gigabit Fiber SFP+, 10GBase-LR (LC) Single-Mode Port, 10km, Wavelength 1310nm, MSA Compliant, Equivalent to Cisco SFP+
Specifications
29 specifications in 7 groups
Performance
| Specification | Value |
|---|---|
| SFP transceiver type | Fiber optic |
| Maximum data transfer rate | 11100 Mbit/s |
| Interface type | SFP+ |
| Single-mode fiber (SMF) supported | Yes |
| Fiber optic connector | LC |
| Fiber cable diameters supported (core/cladding) | 9/125 µm |
| SFP transceiver standard | LR |
| Maximum transfer distance | 10000 m |
| Wavelength | 1310 nm |
| Tx power (min) | -5 dBmW |
| Tx power (max) | 0 dBmW |
| Link budget | 8 dB |
| Networking standards | IEEE 802.3ae, IEEE 802.3z |
| Duplex system | Full |
| Digital Diagnostics Monitoring (DDM) | Yes |
Features
| Specification | Value |
|---|---|
| Product colour | Silver |
| Hot-Plug support | Yes |
Power
| Specification | Value |
|---|---|
| Maximum voltage | 3.3 V |
| Power consumption (typical) | 1 W |
Certificates
| Specification | Value |
|---|---|
| Compliance certificates | CE, RoHS, Federal Communications Commission (FCC) |
| Certification | FCC Class B, CE Mark, IEC-60825 |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 70 °C |
| Storage temperature (T-T) | -40 - 85 °C |
| Operating relative humidity (H-H) | 10 - 85% |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 14 mm |
| Depth | 57 mm |
| Height | 12 mm |
| Weight | 37 g |
Logistics data
| Specification | Value |
|---|---|
| Harmonized System (HS) code | 85369010 |
