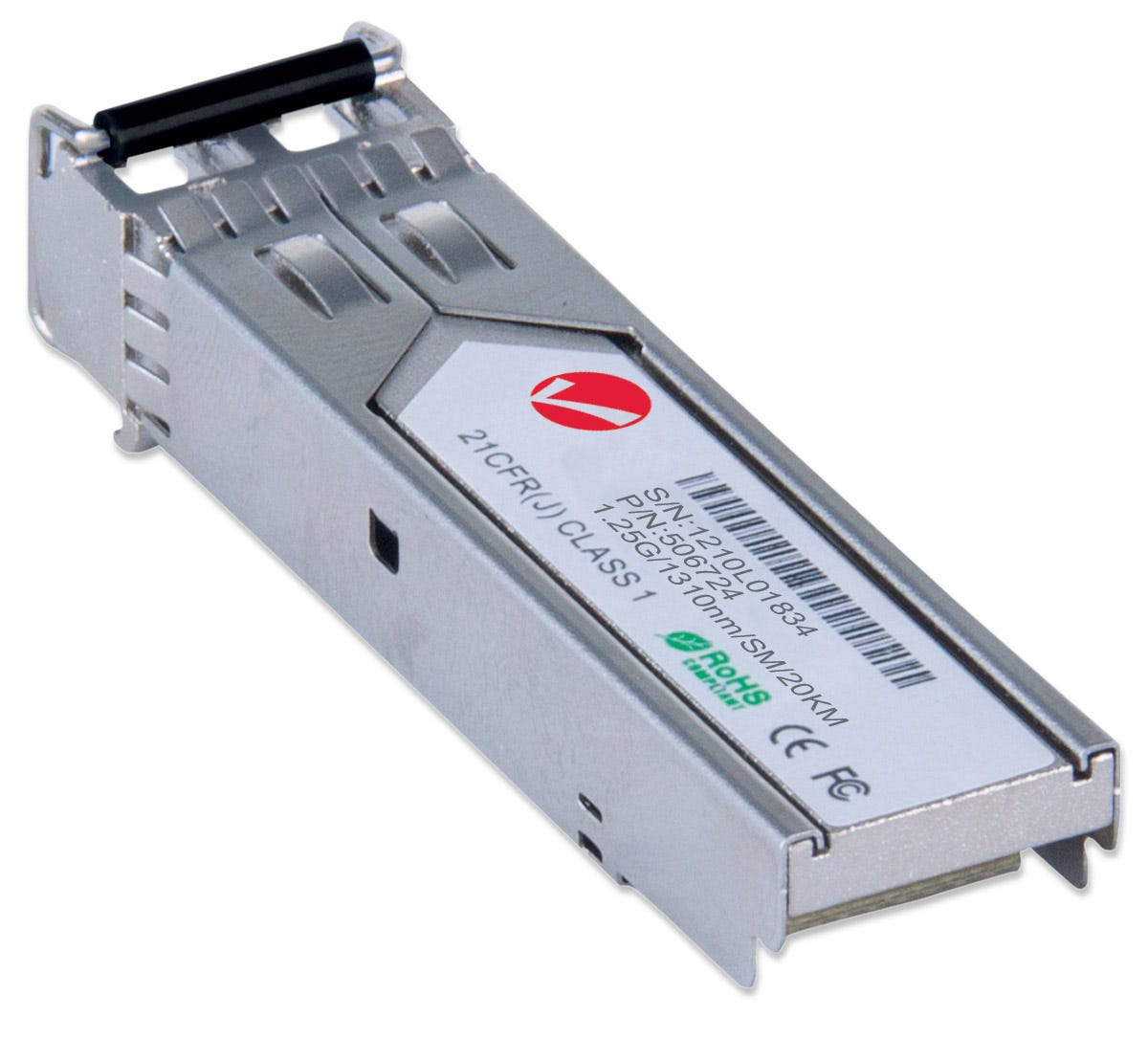

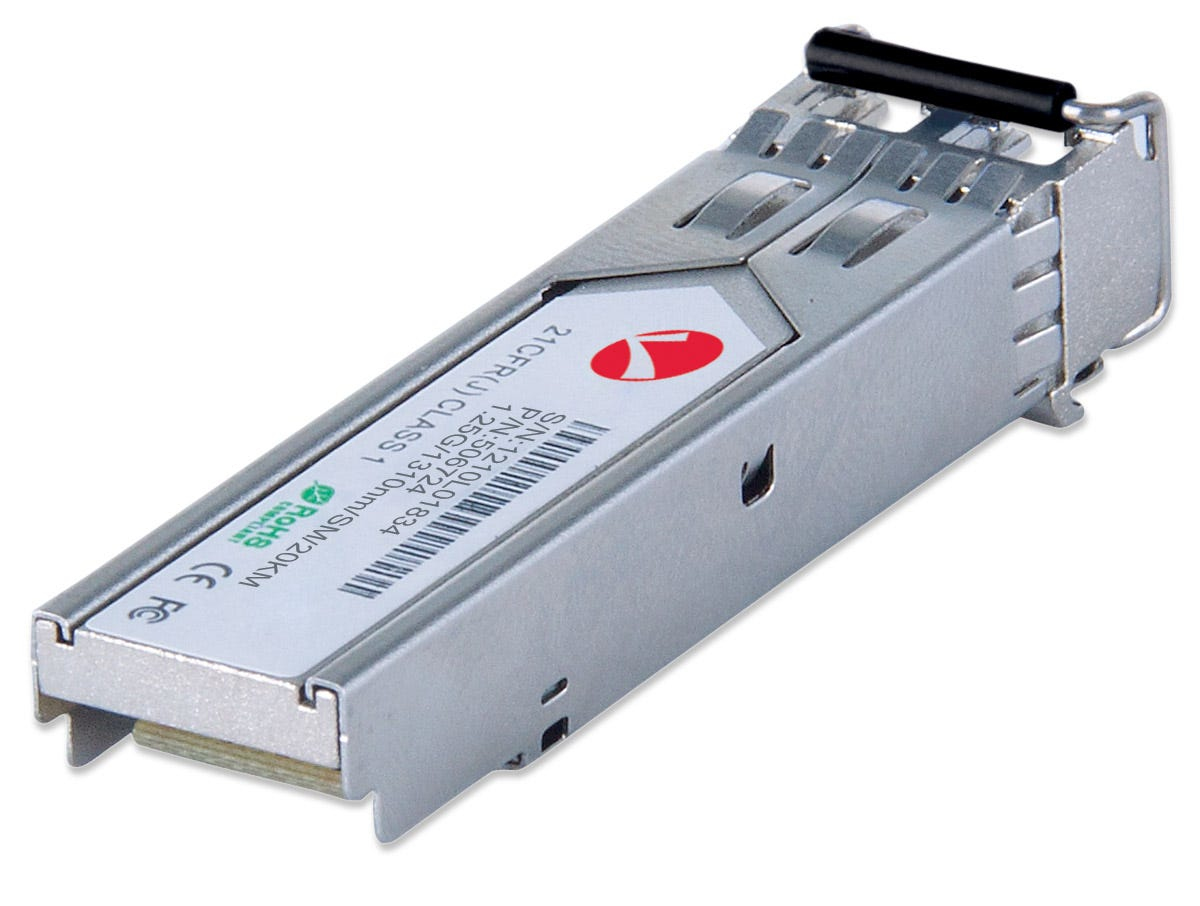

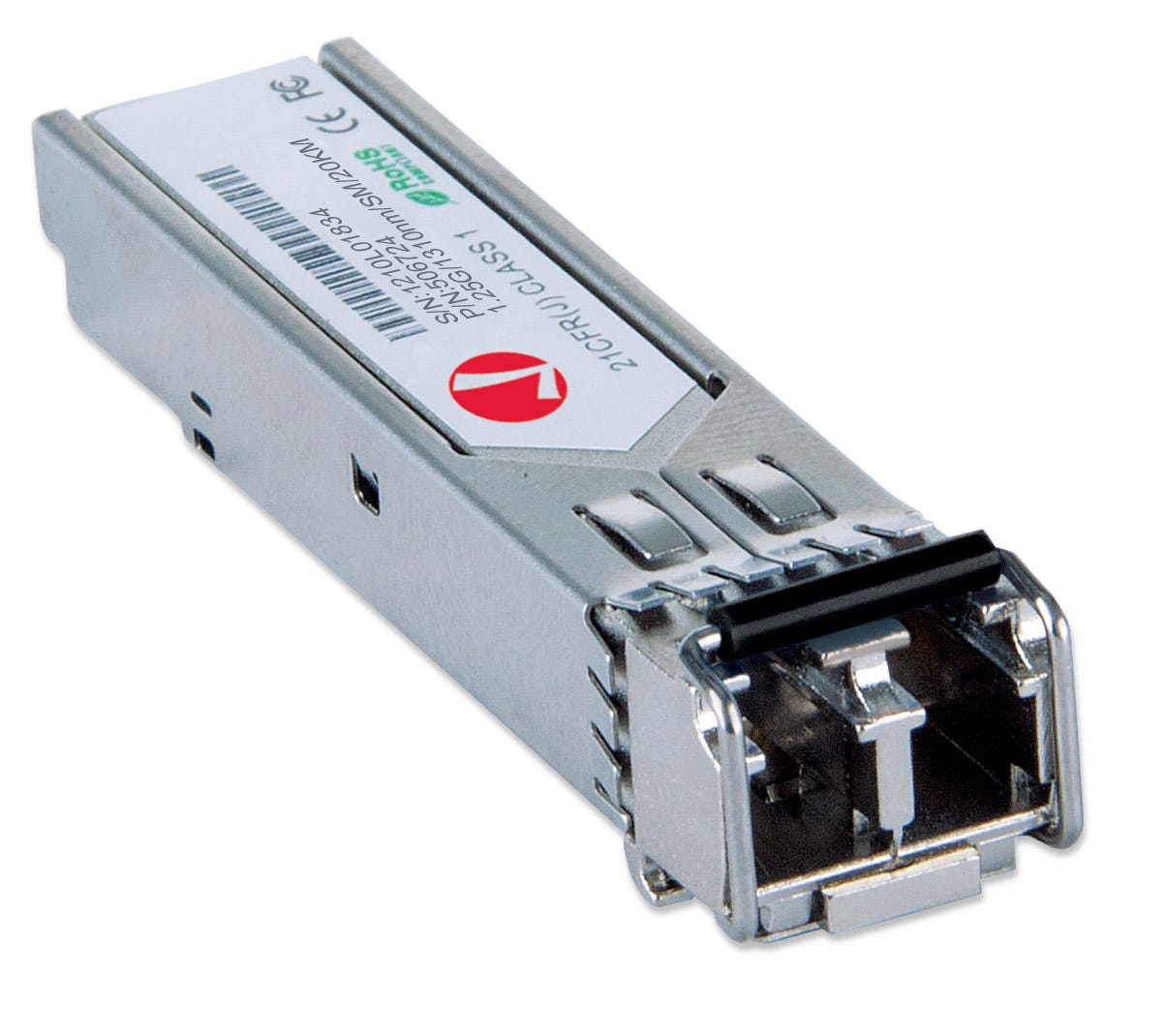

Transceiver Module Optical, Gigabit Fiber SFP Mini-GBIC, 1000Base-Lx (LC) Single-Mode Port, 20km, Wavelength 1310nm, Ethernet, Fibre, MSA Compliant,
Model 506724EAN 766623506724
31 specifications
- Speed1000 Mbit/s
- Weight62 g
- ColourAluminium
- SFP transceiver typeFiber optic
- Input voltage3.3 V
- Operating temperature (T-T)0 - 70 °C
Overview
- Speed
- 1000 Mbit/s
- Weight
- 62 g
- Colour
- Aluminium
- SFP transceiver type
- Fiber optic
- Input voltage
- 3.3 V
- Operating temperature (T-T)
- 0 - 70 °C
- Brand
- Intellinet
- Category
- Network Transceiver Module
- Model
- 506724
- Part number
- 506724
- EAN / UPC
- 766623506724, 7426801240262, 7666235067244
- Also known as
- Intellinet Transceiver Module Optical, Gigabit Fiber SFP Mini-GBIC, 1000Base-Lx (LC) Single-Mode Port, 20km, Wavelength 1310nm, Ethernet, Fibre, MSA Compliant,
Specifications
31 specifications in 8 groups
Performance
| Specification | Value |
|---|---|
| SFP transceiver type | Fiber optic |
| Maximum data transfer rate | 1000 Mbit/s |
| Interface type | mini-GBIC |
| Single-mode fiber (SMF) supported | Yes |
| Multi-mode fiber (MMF) supported | No |
| Fiber optic connector | LC |
| Fiber cable diameters supported (core/cladding) | 9/125 µm |
| SFP transceiver standard | LX |
| Maximum transfer distance | 20000 m |
| Wavelength | 1310 nm |
| Tx power (min) | -8 dBmW |
| Tx power (max) | -3 dBmW |
| Link budget | 8 dB |
| Ethernet interface type | Gigabit Ethernet |
| Networking standards | IEEE 802.3z |
| Duplex system | Full, Half |
Features
| Specification | Value |
|---|---|
| Product colour | Aluminium |
| Hot-Plug support | Yes |
Power
| Specification | Value |
|---|---|
| Input voltage | 3.3 V |
| Power consumption (typical) | 1 W |
Certificates
| Specification | Value |
|---|---|
| Compliance certificates | CE, RoHS, Federal Communications Commission (FCC) |
| Certification | FCC Class A, CE, RoHS, IEC-60825 |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 70 °C |
| Storage temperature (T-T) | -40 - 85 °C |
| Operating relative humidity (H-H) | 10 - 85% |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 13 mm |
| Depth | 55 mm |
| Height | 12 mm |
| Weight | 62 g |
Packaging content
| Specification | Value |
|---|---|
| Quantity per pack | 1 pc(s) |
Logistics data
| Specification | Value |
|---|---|
| Harmonized System (HS) code | 85369010 |
