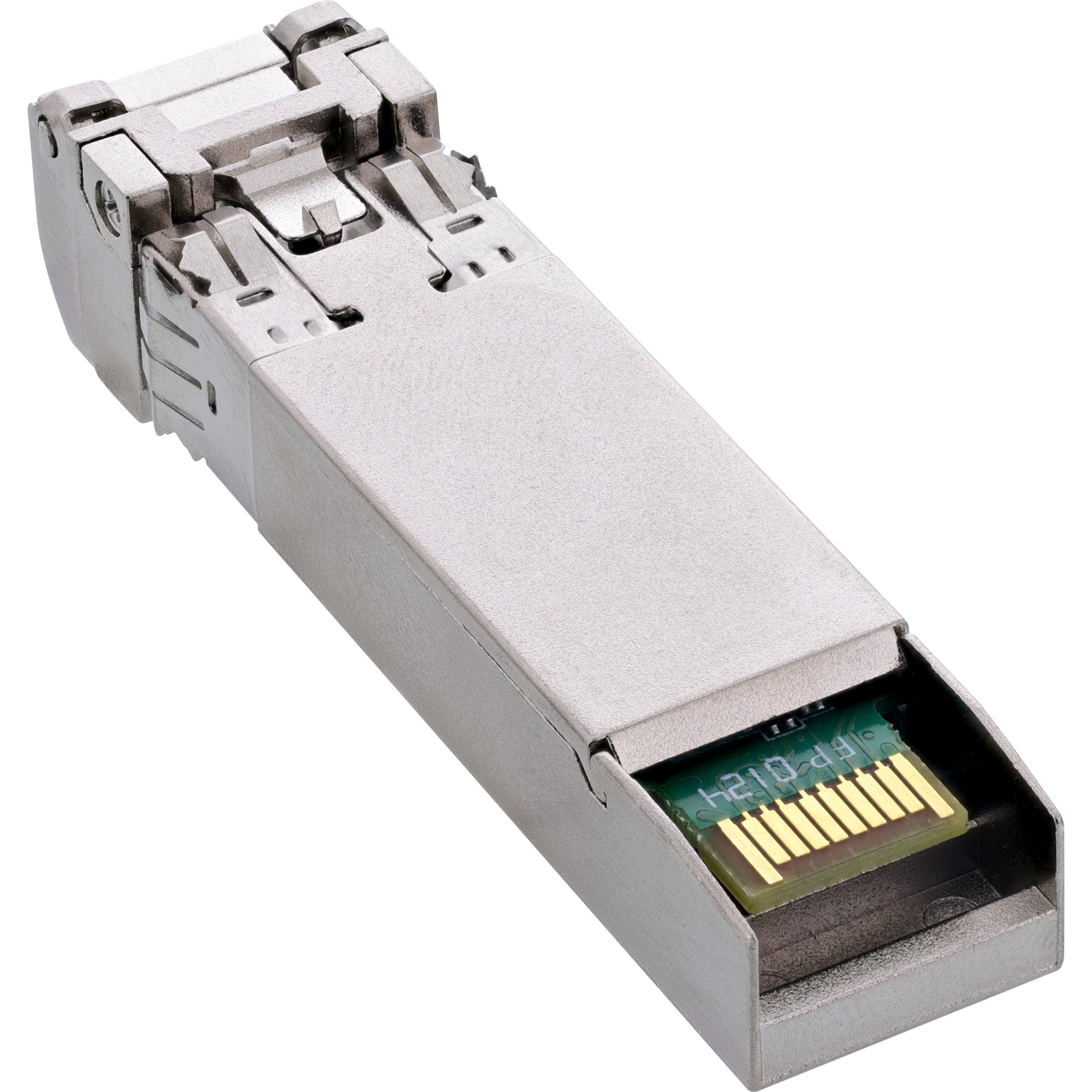

InLine 32335K network transceiver module Fiber optic 10312.5 Mbit/s SFP+ 1550 nm

32335K network transceiver module Fiber optic 10312.5 Mbit/s SFP+ 1550 nm

Model 32335KEAN 4043718345113

29 specifications

Speed10312.5 Mbit/s
Weight1.3 kg
SFP transceiver typeFiber optic
Hot-Plug supportYes
Input voltage3.3 V
Operating temperature (T-T)0 - 70 °C

See all specifications

Overview

Speed: 10312.5 Mbit/s
Weight: 1.3 kg
SFP transceiver type: Fiber optic
Hot-Plug support: Yes
Input voltage: 3.3 V
Operating temperature (T-T): 0 - 70 °C

Brand: InLine
Category: Network Transceiver Module
Model: 32335K
Part number: 32335K
EAN / UPC: 4043718345113
Also known as: InLine 32335K network transceiver module Fiber optic 10312.5 Mbit/s SFP+ 1550 nm

Specifications

29 specifications in 9 groups

Performance

Specification	Value
SFP transceiver type	Fiber optic
Maximum data transfer rate	10312.5 Mbit/s
Interface type	SFP+
Single-mode fiber (SMF) supported	Yes
Fiber optic connector	LC
SFP transceiver standard	EW
Maximum transfer distance	40000 m
Wavelength	1550 nm
Rx wavelength (min)	1260 nm
Rx wavelength (max)	1620 nm
Networking standards	IEEE 802.3ae
Fiber ethernet cabling technology	10GBASE
Digital Diagnostics Monitoring (DDM)	Yes

Features

Specification	Value
Hot-Plug support	Yes

Power

Specification	Value
Input voltage	3.3 V
Power consumption (typical)	2 W

Certificates

Specification	Value
Compliance certificates	CE, TÜV mark

Operational conditions

Specification	Value
Operating temperature (T-T)	0 - 70 °C

Weight & dimensions

Specification	Value
Width	57 mm
Depth	0.22 mm
Height	13 mm
Weight	1.3 kg

Packaging data

Specification	Value
Package width	60 mm
Package depth	90 mm
Package height	20 mm
Package volume	0 cm³
Package weight	21 g

Other features

Specification	Value
Dimensions (WxDxH)	57 x 0.22 x 13 mm

Logistics data

Specification	Value
Country of origin	Taiwan
