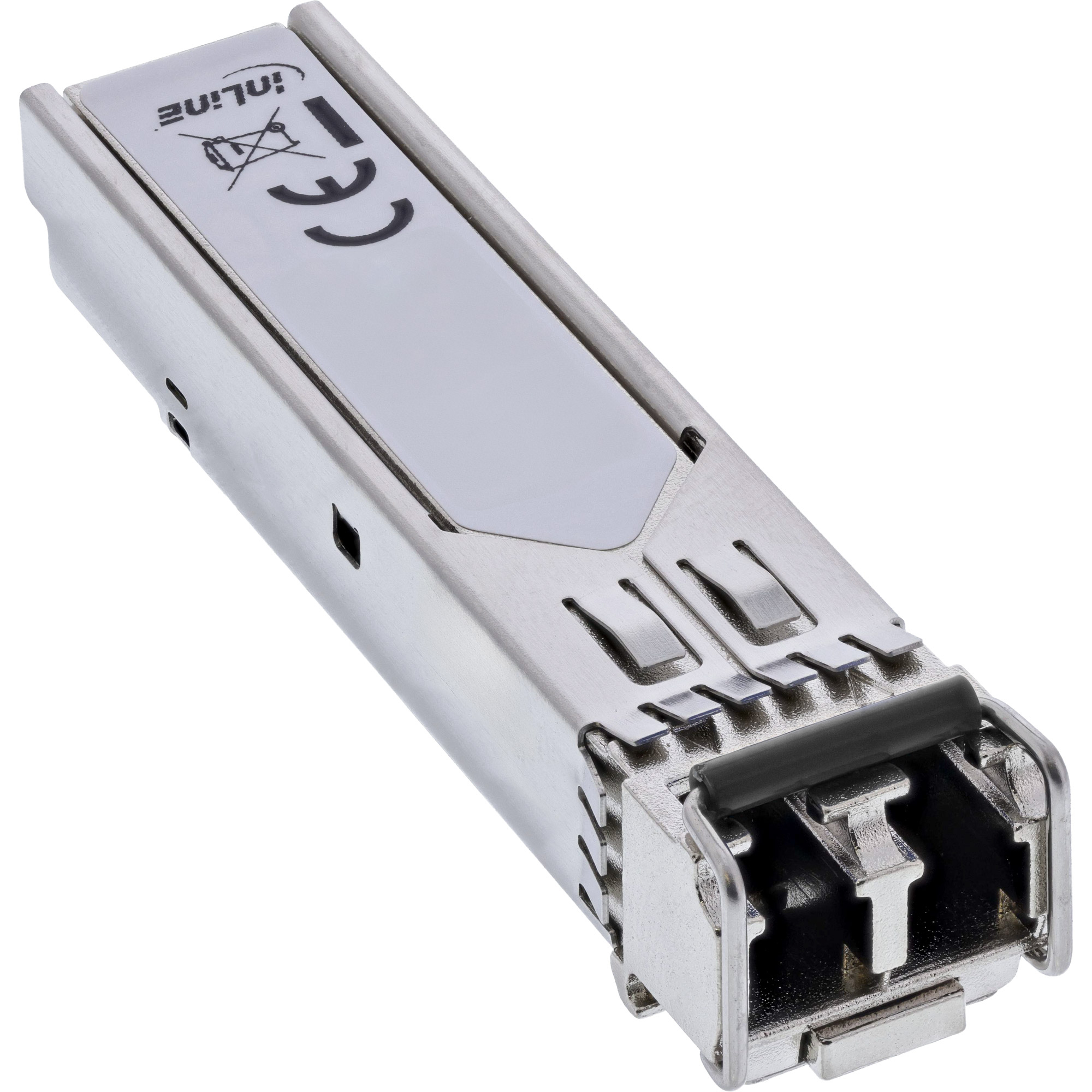

32335C network transceiver module Fiber optic 1250 Mbit/s SFP 1310 nm
Model 32335CEAN 4043718345045
25 specifications
- Speed1250 Mbit/s
- Weight1.3 kg
- SFP transceiver typeFiber optic
- Hot-Plug supportYes
- Operating temperature (T-T)0 - 70 °C
- Width57 mm
Overview
- Speed
- 1250 Mbit/s
- Weight
- 1.3 kg
- SFP transceiver type
- Fiber optic
- Hot-Plug support
- Yes
- Operating temperature (T-T)
- 0 - 70 °C
- Width
- 57 mm
- Brand
- InLine
- Category
- Network Transceiver Module
- Model
- 32335C
- Part number
- 32335C
- EAN / UPC
- 4043718345045
- Also known as
- InLine 32335C network transceiver module Fiber optic 1250 Mbit/s SFP 1310 nm
Specifications
25 specifications in 8 groups
Performance
| Specification | Value |
|---|---|
| SFP transceiver type | Fiber optic |
| Maximum data transfer rate | 1250 Mbit/s |
| Interface type | SFP |
| Multi-mode fiber (MMF) supported | Yes |
| Fiber optic connector | LC |
| SFP transceiver standard | EX |
| Maximum transfer distance | 40000 m |
| Wavelength | 1310 nm |
| Tx power (min) | -5 dBmW |
| Tx power (max) | 0 dBmW |
| Fiber ethernet cabling technology | 1000BASE |
Features
| Specification | Value |
|---|---|
| Hot-Plug support | Yes |
Certificates
| Specification | Value |
|---|---|
| Compliance certificates | CE, TÜV mark |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 70 °C |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 57 mm |
| Depth | 0.17 mm |
| Height | 13 mm |
| Weight | 1.3 kg |
Packaging data
| Specification | Value |
|---|---|
| Package width | 60 mm |
| Package depth | 90 mm |
| Package height | 20 mm |
| Package volume | 0 cm³ |
| Package weight | 16 g |
Other features
| Specification | Value |
|---|---|
| Dimensions (WxDxH) | 57 x 0.17 x 13 mm |
Logistics data
| Specification | Value |
|---|---|
| Country of origin | Taiwan |
